Alumina Direct-Plated Copper DPC Substrates

Ceramic Substrate

SKU: FWM/CS-DPC-004

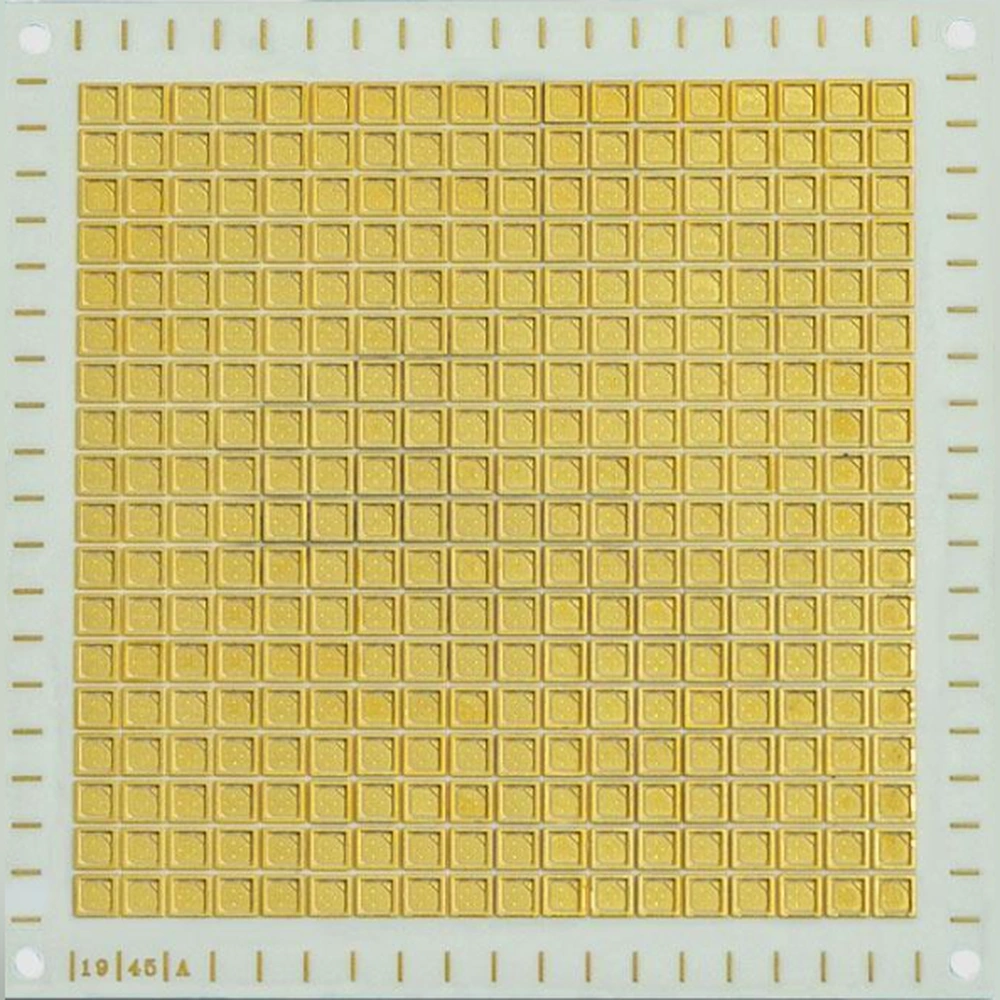

Alumina DPC ceramic substrate with fine metallized pads
Material
Ceramic / Plated Copper System
Size
Custom sizes by drawing
MOQ
10 pieces or one master-card equivalent
Applications
Electronic Packaging

Alumina DPC substrates for fine copper patterns, electronic packaging and drawing-defined circuit layouts.

Browse Products
Alumina Ceramic Products
Zirconia Ceramic Products
Silicon Carbide Products
Silicon Nitride Products
Aluminum Nitride Products
Boron Nitride Products

Product Description

FreeWill Material ceramic substrates and power module thermal-management assembly

Alumina DPC substrates carry plated copper traces and pads on an electrically insulating alumina base.

Photolithographic patterning supports compact circuit layouts for electronic, RF and sensor packages. Copper thickness, conductor spacing and the chosen finish together define the circuit's physical construction.

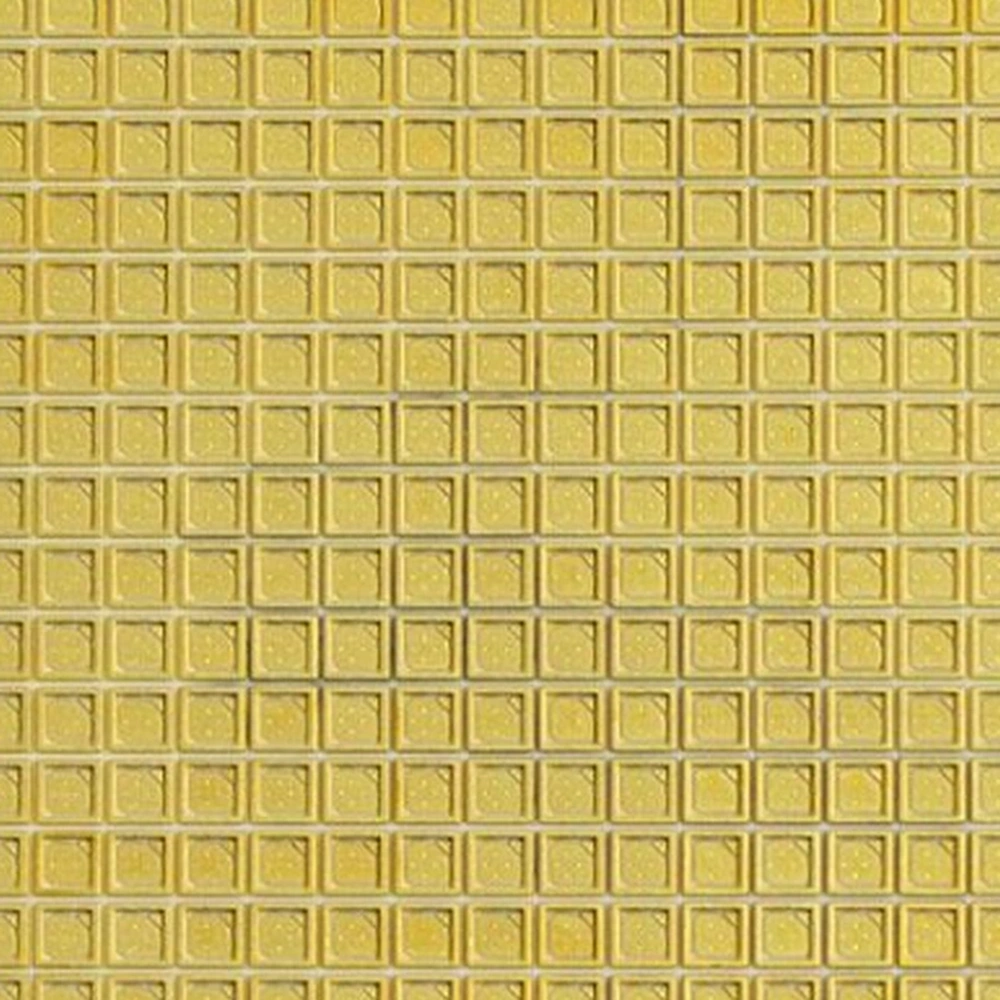

Fine plated copper on alumina is illustrated. Purity, conductor geometry, copper thickness and surface finish are confirmed in the quotation.

Product Advantages

  • Patterned copper provides circuit paths on an electrically insulating alumina base.
  • Photolithographic pads connect compact devices to their package interfaces.
  • Ceramic grade and copper construction can be selected as separate design variables.

Typical Applications

  • Electronic Packaging: patterned copper and alumina insulation support compact component attachment.
  • RF and Sensor Modules: plated traces and connection pads organize the specified circuit layout.

Technical Data

96% Alumina Substrate (708 S) Properties

Property96% Al₂O₃ — 708 STest conditions / measurement tolerance ±10%
Density (g/cm³)≥3.75DIN EN 993-1
Bending strength, σ₀ (MPa)≥500—
Young’s modulus (GPa)≥300—
Thermal conductivity (W/(m·K))24Room temperature; DIN EN 821-2
Linear thermal expansion coefficient (10⁻⁶/K)7–9100–800°C; DIN 51045-1
Specific heat capacity (J/(g·K))≥0.7520°C; DIN EN 821-3 method B
Relative permittivity~9.8Room temperature, 1 MHz; Ra ≤0.4 µm
Dielectric loss factor≤0.005Room temperature; 1 MHz; Ra ≤0.4 µm
Volume resistivity (Ω·cm)≥10¹⁴Room temperature; IEC 62631-3
Breakdown strength (kV/mm)AC≥15; DC≥1520°C; AC / DC
Fracture toughness (MPa·m½)≥3.0Indentation-fracture (IF)

99.6% Alumina Substrate (710 C) Properties

Property99.6% Al₂O₃ — 710 CTest conditions / measurement tolerance ±10%
Density (g/cm³)≥3.80DIN EN 993-1
Bending strength, σ₀ (MPa)≥420ASTM C1499-08
Young’s modulus (GPa)≥300—
Thermal conductivity (W/(m·K))≥25Room temperature; DIN EN 821-2
Linear thermal expansion coefficient (10⁻⁶/K)7–9100–800°C; DIN 51045-1
Specific heat capacity (J/(g·K))≥0.6520°C; DIN EN 821-3 method B
Relative permittivity8.5–11.5Room temperature, 1 MHz
Dielectric loss factor≤0.010Room temperature; 1 MHz; Ra ≤0.4 µm
Volume resistivity (Ω·cm)≥10¹⁴Room temperature; IEC 62631-3
Breakdown strength (kV/mm)AC≥15; DC≥1520°C; AC / DC
Fracture toughness (MPa·m½)≥3.0Indentation-fracture (IF)

Typical Construction Parameters

Construction itemTypical configurationApplicable condition
Ceramic base96% or 99.6% alumina (Al2O3)Surface preparation dependent
Copper thickness10–130 µmPlated thickness and pattern evaluated together
Line / spaceLayout-dependentCopper thickness, plating distribution and pattern geometry
Holes / viasLaser holes and selected plated featuresAspect ratio and registration dependent
Surface finishNi/Au, Ni/Pd/Au or Ag examplesFinish stack matched to the attachment process

How to Read the Parameters

Copper thickness and line/space

Pattern feasibility depends on the finished copper thickness and geometry.

Specify: Thickness distribution, minimum gap, pad shape and registration basis.

Surface condition

Bare ceramic, plated copper and pad finish are distinct surfaces.

Specify: Functional face, roughness parameter, cleanliness and finish composition/thickness.

Resistivity and isolation

Volume resistivity uses Ω·cm or Ω·m; finished-circuit insulation resistance uses Ω.

Specify: Temperature, humidity, voltage, time and test geometry.

RF material and circuit data

Permittivity and loss require frequency and test conditions.

Specify: Operating band, method, conductor stack and circuit-level acceptance.

Adhesion

Peel in N/mm is not tensile or shear strength in MPa.

Specify: Test mode, geometry, rate, specimen preparation and failure location.

DPC: build and pattern the copper stack

DPC forms patterned copper on ceramic using an adhesion/seed stack, photolithography and electroplating. This substrate-metallization route is separate from any later functional thin-film processing, die attachment or package sealing.

Six-step DPC schematic: prepare ceramic, deposit adhesion and seed, pattern resist, plate copper in openings, remove resist and exposed seed to isolate traces, then finish and inspect. Adhesion and seed remain beneath plated traces only.

Application Conditions & Design Review

Match pattern detail to the application

Alumina DPC supports a design approach based on patterned copper rather than a generic copper-clad plate. Identify the critical traces, pads and electrical separations in the drawing.

Treat grade and surface as separate choices

Nominal alumina content does not define every surface or electrical property. Select the ceramic grade, surface state and finished metallization around the package and assembly requirements.

Ceramic and copper

Select the ceramic grade and thickness with the plated-copper geometry and heat-source footprint.

Thin-film integration

Identify which resistor, conductor, dielectric or passivation layers will be added after DPC, and review their process compatibility.

Double-sided and via functions

Define each face and any vertical connections explicitly; rear copper does not imply through-hole connectivity.

RF requirements

Specify the operating band and finished-circuit requirements, not merely a low-frequency ceramic dielectric value.

Send With Your Drawing

  • Alumina grade, finished thickness, outline and functional surfaces.
  • Copper artwork, thickness, line/space requirements and registration datums.
  • Finish, attachment method, operating conditions and electrical test requirements.

Include the drawing revision, sample and production quantities, and required inspection documents.

Define Acceptance Before Production

  • Inspect critical pattern features, metal thickness and drawing-defined surface geometry.
  • Agree continuity/isolation and finish/adhesion criteria for the supplied construction.

Agree the test methods, sampling plan, acceptance limits and required reports before production.

Available Forms & Processing

Product-specific geometry and processing features.

  • 96% or 99.6% alumina selected as distinct ceramic grades.
  • Copper thickness, conductor spacing and pad dimensions specified for the same layout.
  • Finish stack and any conductive vias identified separately from bare drilled holes.

Engineering Questions

Can the same DPC geometry be used with every copper thickness?

Do not assume so. Pattern dimensions and spacing must be reviewed with the copper build-up and qualified process. State both in the RFQ.

How should the DPC surface finish be selected?

Start with the attachment or downstream film process. Specify finish composition and thickness, pad areas, cleanliness and oxidation protection, then confirm compatibility with the intended soldering, bonding or deposition sequence.

Does a dielectric constant measured at 1 MHz prove microwave performance?

No. Use material data at relevant frequencies and evaluate the actual conductor geometry, finish, interconnections and completed circuit.
