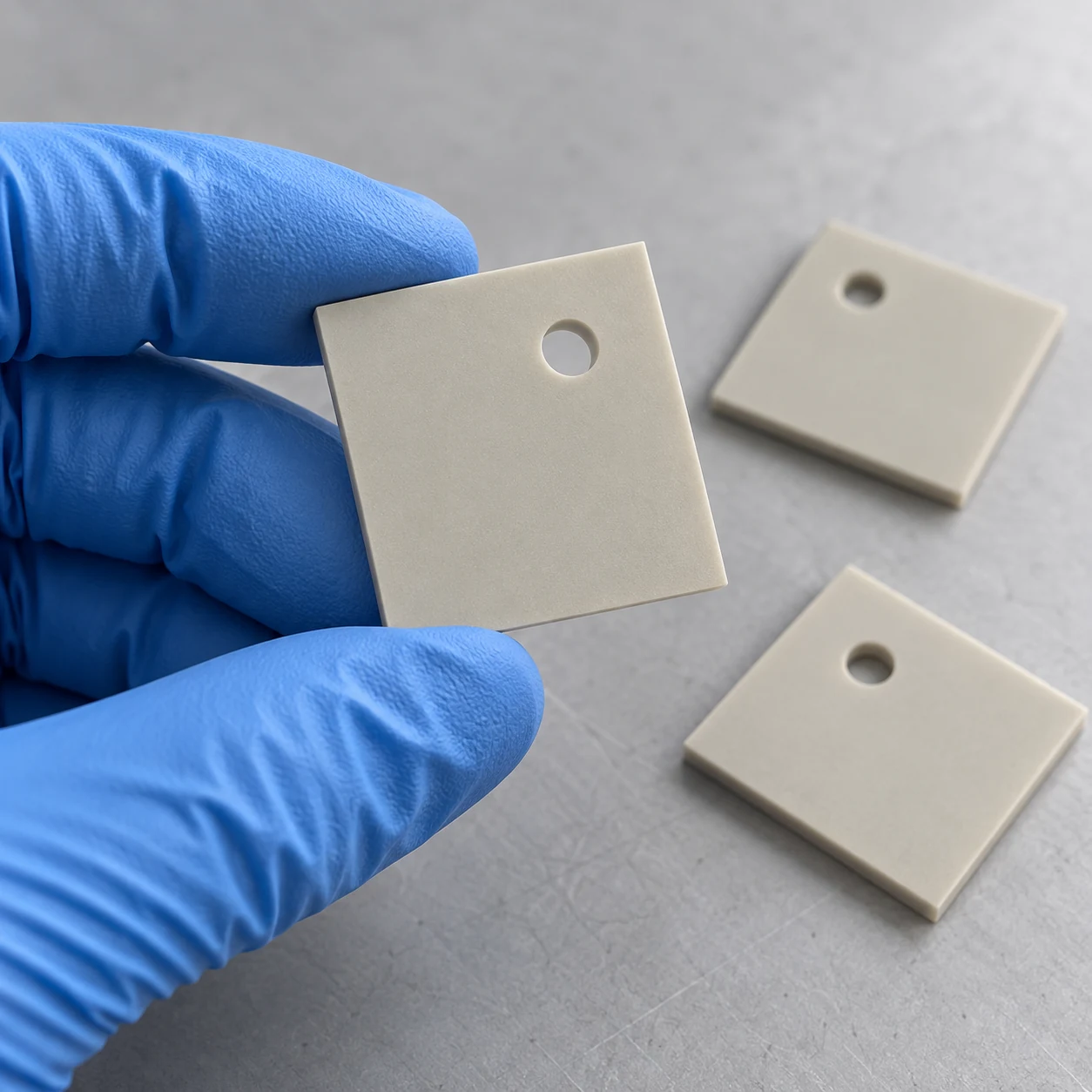

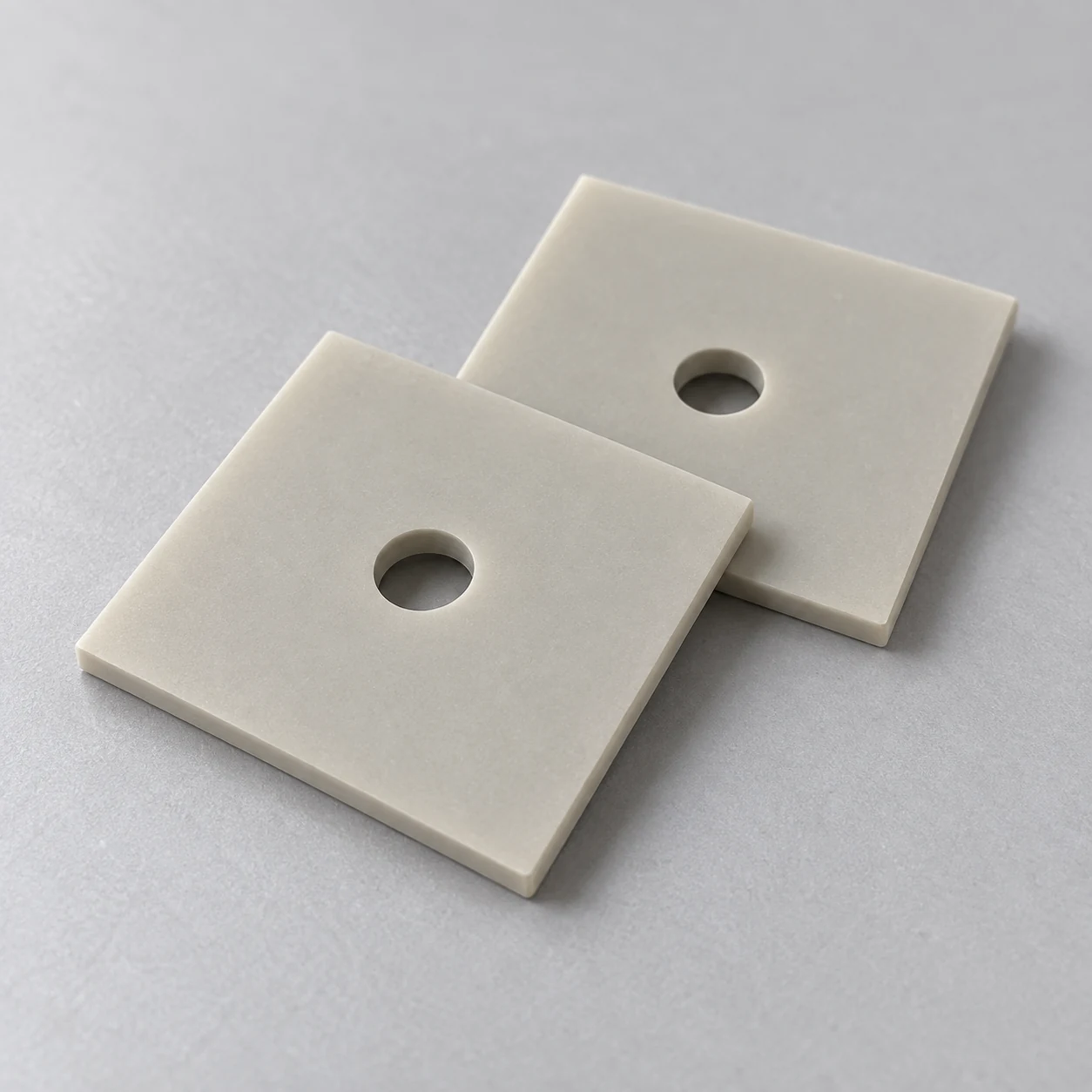

Aluminum Nitride Heat Spreaders
Aluminum Nitride Ceramics Component
SKU: FWM/ALN-HS-001
- Material
- Aluminum Nitride Ceramic Family
- Size
- Custom sizes available
- MOQ
- Pending Verification
- Applications
- Power Electronics
Electrical-insulating aluminum nitride heat spreaders for power, laser and electronic thermal-management assemblies.
Browse Products
Alumina Ceramic Products
Zirconia Ceramic Products
Silicon Carbide Products
View categorySilicon Carbide Mechanical Seal RingsSilicon Carbide Ceramic ArmsSilicon Carbide Cantilever PaddlesSilicon Carbide Ceramic TubesSilicon Carbide Ceramic PlatesSilicon Carbide NozzlesSilicon Carbide CruciblesSilicon Carbide Furnace TubesSilicon Carbide Custom ComponentsSilicon Carbide SleevesSilicon Carbide TraysSilicon Carbide Vacuum ChucksSilicon Carbide Wear Linings
Silicon Nitride Products
View categorySilicon Nitride Degassing RotorsSilicon Nitride Heater Protection TubesSilicon Nitride PlatesSilicon Nitride Positioning PinsSilicon Nitride Riser Tubes / StalksSilicon Nitride Bearing BallsSilicon Nitride BearingsSilicon Nitride SleevesSilicon Nitride Structural ComponentsSilicon Nitride Thermocouple Protection Tubes
Aluminum Nitride Products
Product Description
Electrical-insulating aluminum nitride heat spreaders for power, laser and electronic thermal-management assemblies.
Aluminum nitride heat spreaders provide a ceramic path for moving heat while maintaining electrical isolation in compact assemblies.
AlN conducts heat through an electrically insulating body, helping spread concentrated heat from a device toward the cooling interface.
Product Features
- Thermal Management
- Electrical Insulation
- Precision Surface Options
- Drawing-Based Customization
Typical Applications
- Power Electronics — Power modules and insulated heat-spreading interfaces: Supports heat-transfer and electrical-isolation review in one component.
- Laser and Optoelectronics — Laser diode and optical module carriers: Supports compact thermal-path and mounting requirements.
Product Geometry & Configuration
AlN (AN216A) Typical Properties
| Property | AN216A typical value | Condition / method |
|---|---|---|
| Density | 3.4 g/cm³ | JIS R 1634 |
| Water absorption | 0 % | JIS C 2141 |
| Vickers hardness | 10.4 GPa | HV9.807N (9.807 N load); JIS R 1610 |
| Three-point flexural strength | 310 MPa | Three-point bending; JIS R 1601 |
| Young’s modulus | 320 GPa | JIS R 1602 |
| Poisson’s ratio | 0.24 | JIS R 1602 |
| Fracture toughness (SEPB) | 3.2 MPa·m½ | SEPB; JIS R 1607 |
| Linear thermal expansion, 40–400°C | 4.6 × 10⁻⁶/K | 40–400°C; JIS R 1618 |
| Linear thermal expansion, 40–800°C | 5.3 × 10⁻⁶/K | 40–800°C; JIS R 1618 |
| Thermal conductivity | 150 W/(m·K) | 20°C; JIS R 1611 |
| Specific heat capacity | 0.71 J/(g·K) | JIS R 1611 |
| Material thermal-shock temperature difference | 250 °C | Water immersion; relative method; JIS R 1648 |
| Dielectric strength | 14 kV/mm | JIS C 2141 |
| Volume resistivity, 20°C | >10¹⁴ Ω·cm | 20°C; JIS C 2141 |
| Volume resistivity, 300°C | 10¹⁰ Ω·cm | 300°C; JIS C 2141 |
| Volume resistivity, 500°C | 10⁸ Ω·cm | 500°C; JIS C 2141 |
| Relative permittivity | 8.6 | 1 MHz; JIS C 2141 |
| Dielectric loss tangent | 0.0003 | 1 MHz; JIS C 2141 |
Product Geometry & Configuration
| Product parameter | Configuration | Basis |
|---|---|---|
| Material system | Aluminum Nitride Ceramic Family | Material family; grade selected for the application |
| Component forms | Flat heat spreaders; Finned or featured blocks by drawing; Mounting-hole and stepped geometries | Drawing-defined configurations |
| Geometry and dimensions | Custom sizes available | Part drawing and mating interfaces |
| Functional surfaces | Contact, locating, joining or insulating surfaces as applicable | Surface finish and acceptance criteria on the drawing |
Available Forms
Representative forms are shown for selection. Final geometry, material route, interface, finish and acceptance criteria require drawing review.

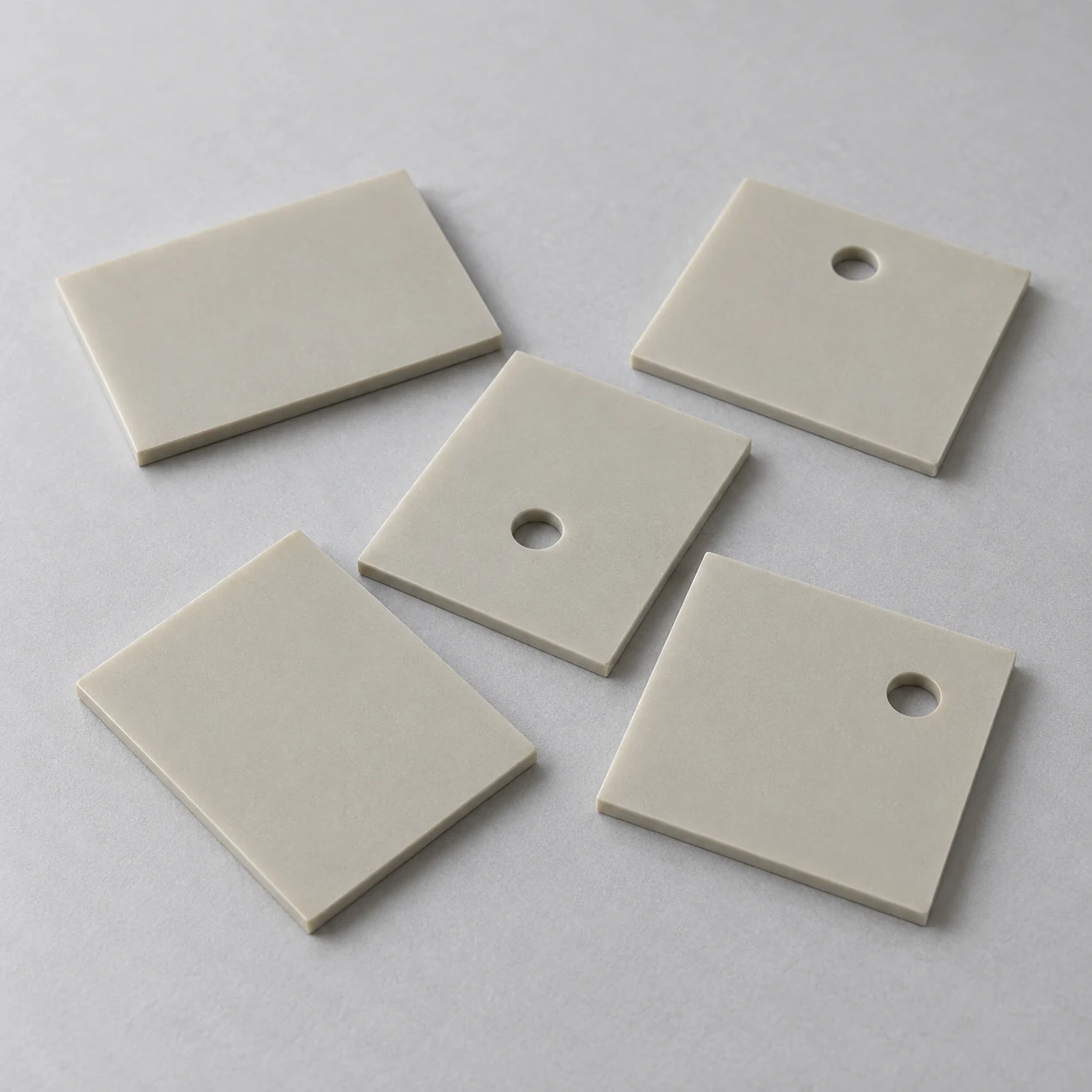

- Flat heat spreaders
- Finned or featured blocks by drawing
- Mounting-hole and stepped geometries
Packaging & Shipping
Packing and shipment arrangements are selected for the confirmed component geometry and surface requirements.
| Item | Details |
|---|---|
| Product protection | Selected for geometry, surface condition and quantity |
| Other commercial terms and lead time | Confirmed in quotation |
| Source boundary | No competitor packaging or delivery promise is inherited. |
| Payment terms | T/T / Western Union / PayPal; 50% advance payment, 50% balance before shipment |
| Shipping methods | Sea freight / Air freight / Door-to-door courier |
