FreeWill Material Technical Ceramics

Zirconia Valve Seats

Zirconia Ceramics Component

SKU: FWM/ZR-VSEAT-001

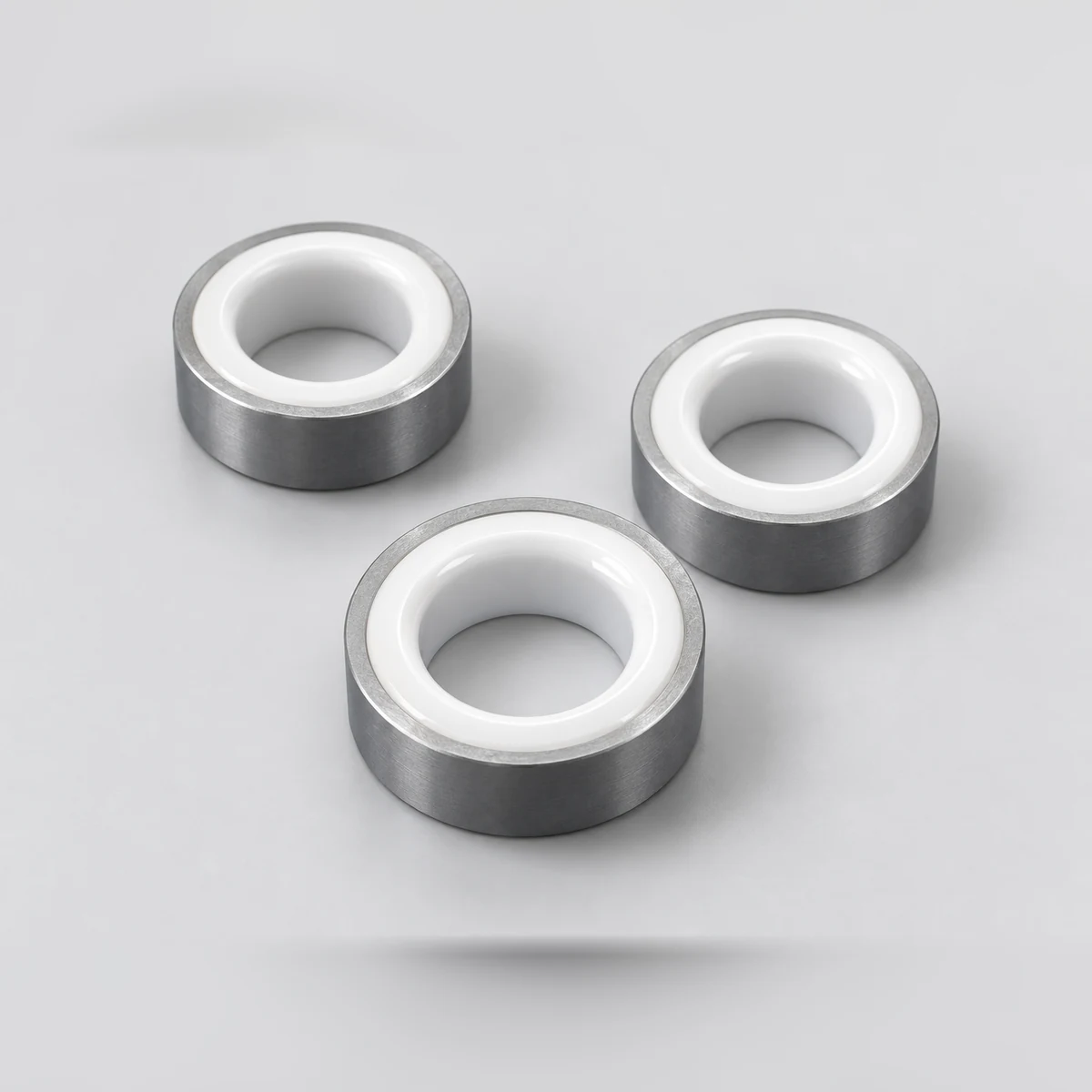

Three metal-supported zirconia valve seats
Material
Zirconia Ceramic Family
Size
Custom sizes available
MOQ
Pending Verification
Applications
Pumps and Valves

Precision zirconia valve seats for matched ball, poppet and fluid-control sealing interfaces.

Request a Quote Download PDF
Browse Products
Alumina Ceramic Products
View categoryAlumina Ceramic PlatesAlumina CruciblesAlumina Ceramic TubesAlumina Ceramic InsulatorsAlumina Ceramic SubstratesAlumina Ceramic BushingsAlumina Ceramic ShaftsAlumina Custom Components
Zirconia Ceramic Products
View categoryZirconia ShaftsZirconia SleevesZirconia Valve BallsZirconia Valve SeatsZirconia PlungersZirconia Custom Components
Silicon Carbide Products
View categorySilicon Carbide Mechanical Seal RingsSilicon Carbide Ceramic ArmsSilicon Carbide Cantilever PaddlesSilicon Carbide Ceramic TubesSilicon Carbide Ceramic PlatesSilicon Carbide NozzlesSilicon Carbide CruciblesSilicon Carbide Furnace TubesSilicon Carbide Custom ComponentsSilicon Carbide SleevesSilicon Carbide TraysSilicon Carbide Vacuum ChucksSilicon Carbide Wear Linings
Silicon Nitride Products
View categorySilicon Nitride Degassing RotorsSilicon Nitride Heater Protection TubesSilicon Nitride PlatesSilicon Nitride Positioning PinsSilicon Nitride Riser Tubes / StalksSilicon Nitride Bearing BallsSilicon Nitride BearingsSilicon Nitride SleevesSilicon Nitride Structural ComponentsSilicon Nitride Thermocouple Protection Tubes
Aluminum Nitride Products
View categoryAluminum Nitride SubstratesAluminum Nitride Heat SpreadersAluminum Nitride PlatesAluminum Nitride InsulatorsAluminum Nitride Electronic CeramicsAluminum Nitride Custom Components
Boron Nitride Products
View categoryBoron Nitride NozzlesBoron Nitride Break RingsBoron Nitride Hot-Zone FixturesBoron Nitride InsulatorsBoron Nitride Machined PartsBoron Nitride Custom Components

Product Description

FreeWill Material technical ceramic product families and engineering applications

Precision zirconia valve seats for matched ball, poppet and fluid-control sealing interfaces.

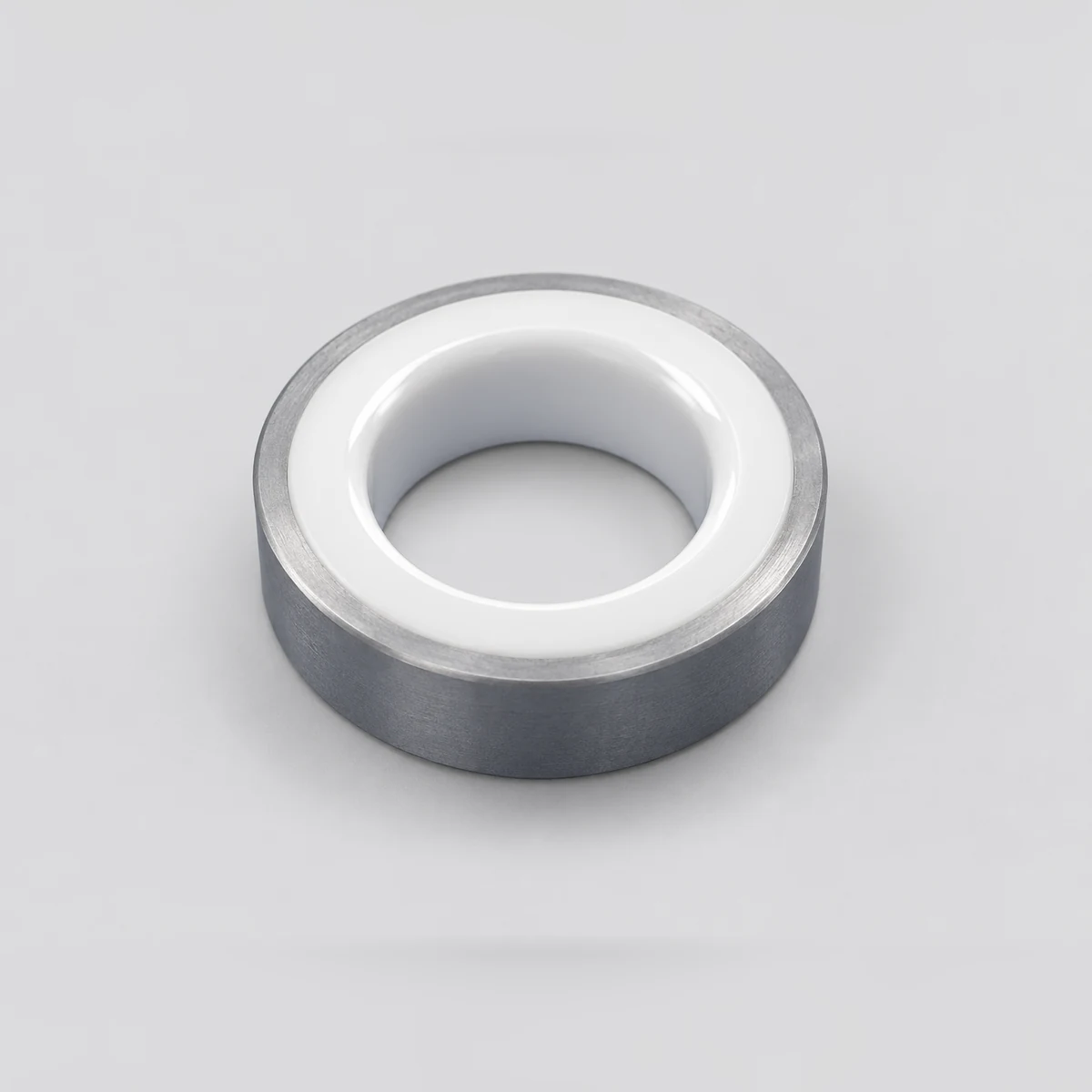

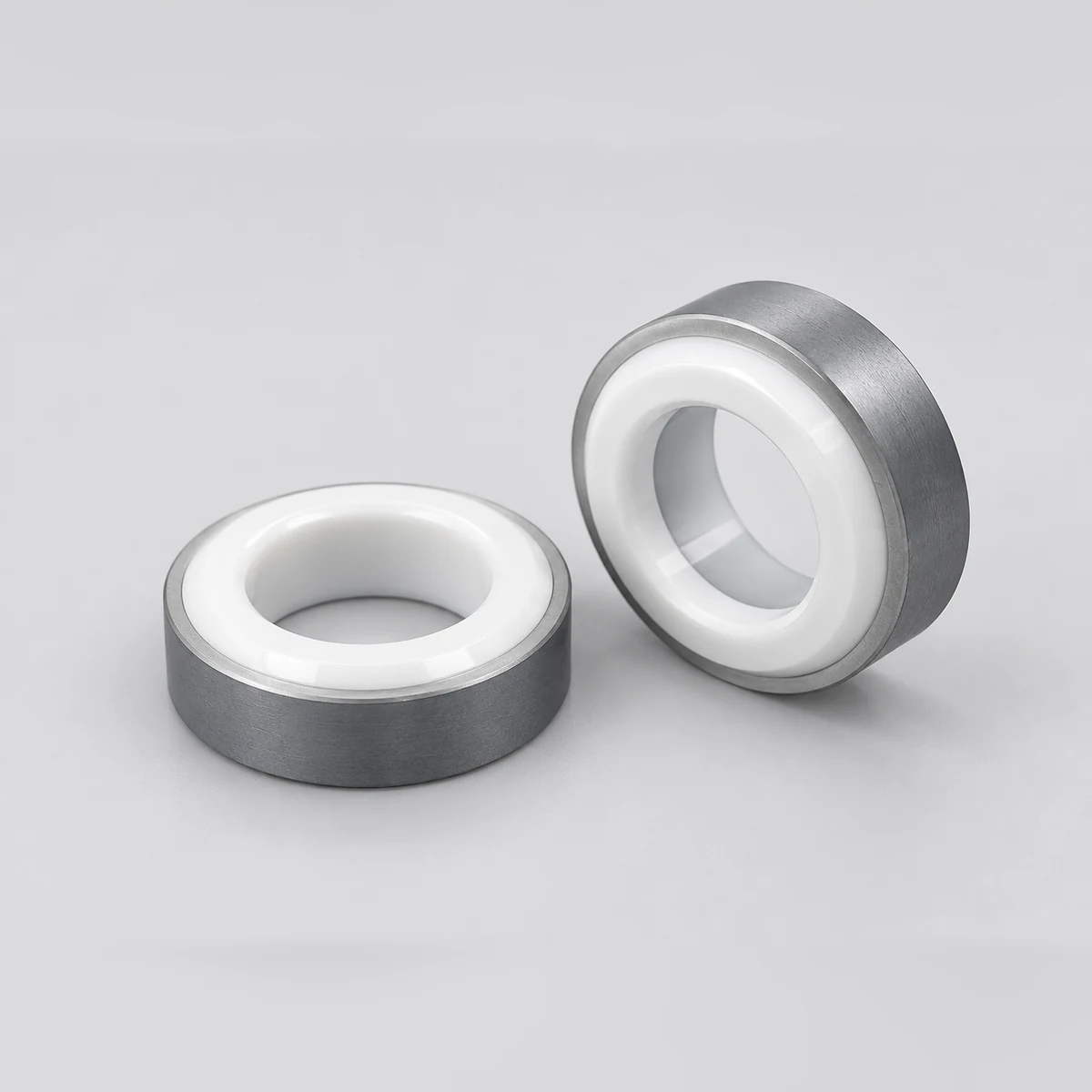

Zirconia valve seats are precision contact components designed around a mating ball or other closure geometry.

The wear-resistant contact surface supports repeated opening and closing while the seat bore defines the fluid passage.

Product Features

  • Matched Contact Geometry
  • Precision Lapping
  • Wear Resistance
  • Fluid-Control Integration

Typical Applications

  • Pumps and Valves — Check-valve and control-valve seats: Supports a stable ceramic contact surface after matched review.
  • Chemical Processing — Corrosive-fluid valve interfaces: Provides a ceramic option subject to medium compatibility.

Product Geometry & Configuration

Zirconia (ZO201N) Typical Properties

PropertyZO201N typical valueCondition / method
Density6.0 g/cm³JIS R 1634
Water absorption0 %JIS C 2141
Vickers hardness12.3 GPaHV9.807N (9.807 N load); JIS R 1610
Three-point flexural strength1000 MPaThree-point bending; JIS R 1601
Young’s modulus200 GPaJIS R 1602
Poisson’s ratio0.31JIS R 1602
Fracture toughness (SEPB)6 MPa·m½JIS R 1607
Linear thermal expansion, 40–400°C10.5 × 10⁻⁶/K40–400°C; JIS R 1618
Linear thermal expansion, 40–800°C11.0 × 10⁻⁶/K40–800°C; JIS R 1618
Thermal conductivity3 W/(m·K)20°C; JIS R 1611
Specific heat capacity0.46 J/(g·K)JIS R 1611
Material thermal-shock temperature difference300°CWater immersion; relative method; JIS R 1648
Dielectric strength11 kV/mmJIS C 2141
Volume resistivity, 20°C10¹³ Ω·cm20°C; JIS C 2141
Volume resistivity, 300°C10⁶ Ω·cm300°C; JIS C 2141
Volume resistivity, 500°C10³ Ω·cm500°C; JIS C 2141
Relative permittivity33.01 MHz; JIS C 2141
Dielectric loss tangent0.00161 MHz; JIS C 2141

Product Geometry & Configuration

Product parameterConfigurationBasis
Material systemZirconia Ceramic FamilyMaterial family; grade selected for the application
Component formsBall valve seats; Poppet and check-valve seats; Custom sealing ringsDrawing-defined configurations
Geometry and dimensionsCustom sizes availablePart drawing and mating interfaces
Functional surfacesContact, locating, joining or insulating surfaces as applicableSurface finish and acceptance criteria on the drawing

Available Forms

Representative forms are shown for selection. Final geometry, material route, interface, finish and acceptance criteria require drawing review.

  • Ball valve seats
  • Poppet and check-valve seats
  • Custom sealing rings

Packaging & Shipping

Packing and shipment arrangements are selected for the confirmed component geometry and surface requirements.

ItemDetails
Product protectionSelected for geometry, surface condition and quantity
Other commercial terms and lead timeConfirmed in quotation
Source boundaryNo competitor packaging or delivery promise is inherited.
Payment termsT/T / Western Union / PayPal; 50% advance payment, 50% balance before shipment
Shipping methodsSea freight / Air freight / Door-to-door courier
Protective ceramic component packaging and available international shipping methods
