Zirconia Custom Components
Zirconia Ceramics Component
SKU: FWM/ZR-CUSTOM-001
- Material
- Zirconia Ceramic Family
- Size
- Custom sizes available
- MOQ
- Pending Verification
- Applications
- Industrial Equipment
Drawing-based zirconia components for precision wear, contact stress, fluid control and structural applications.
Browse Products
Alumina Ceramic Products
Zirconia Ceramic Products
Silicon Carbide Products
Silicon Nitride Products
Aluminum Nitride Products
Product Description
Drawing-based zirconia components for precision wear, contact stress, fluid control and structural applications.

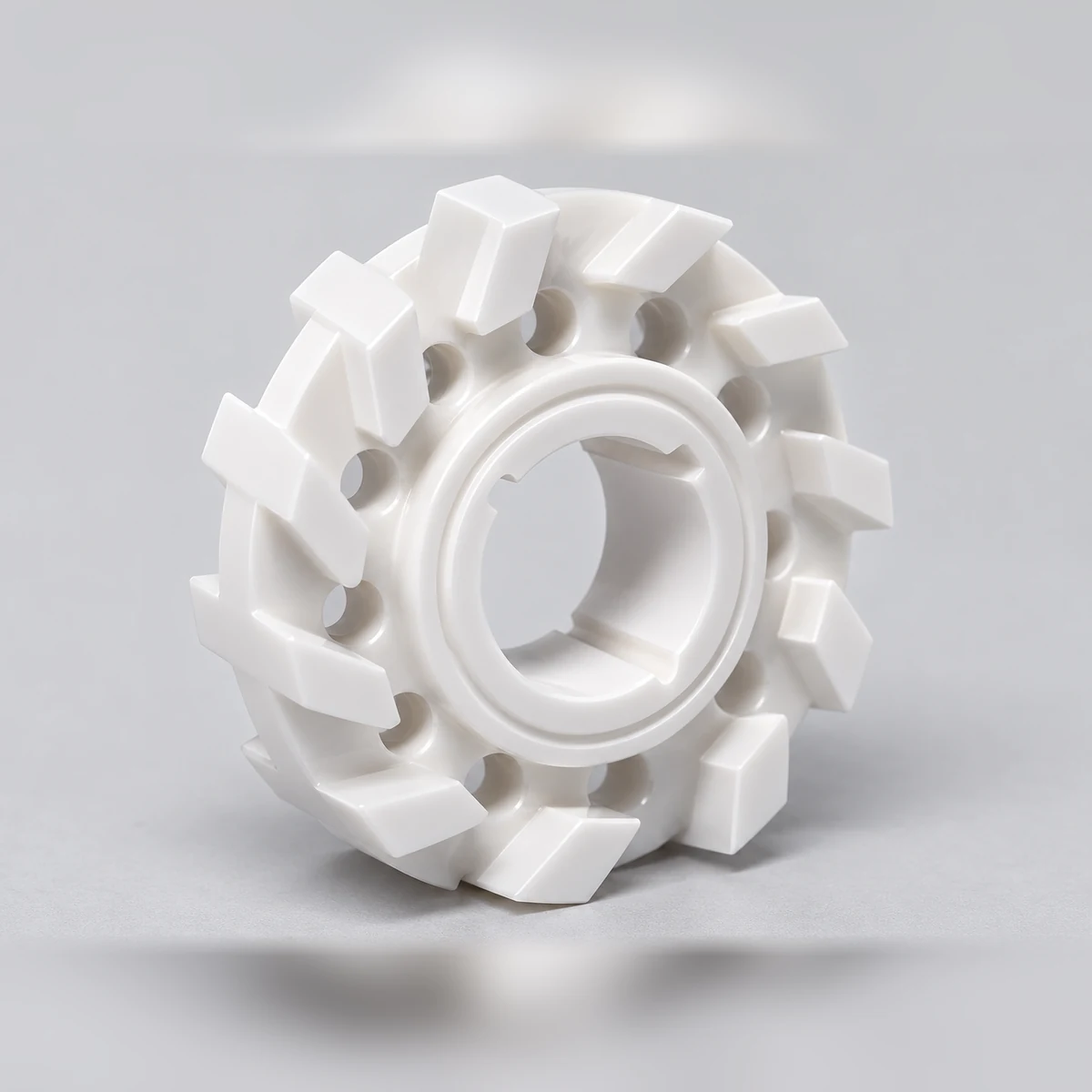

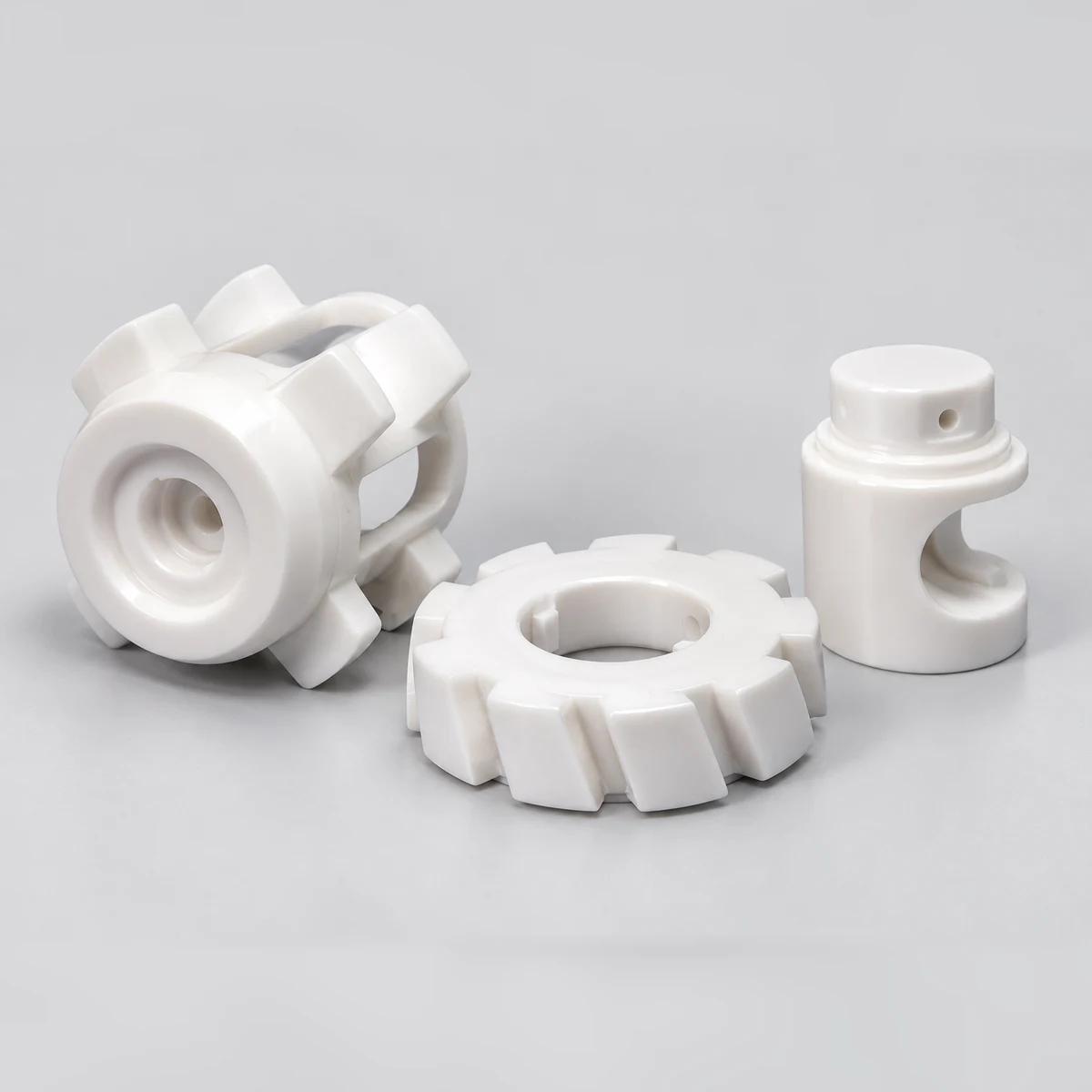

Custom zirconia components cover non-standard precision geometries selected for toughness, wear or fine-surface requirements.
The material combines wear resistance with relatively high ceramic toughness for locating, guiding and fluid-contact parts with complex interfaces.
Product Features
- High Toughness
- Drawing-Based Customization
- Precision Finishing
- Application-specific geometry
Typical Applications
- Industrial Equipment — Custom wear and precision components: Supports application-specific zirconia geometry.
- Fluid Control — Custom pump and valve components: Provides a reviewed ceramic route for fluid-contact assemblies.
Product Geometry & Configuration
Zirconia (ZO201N) Typical Properties
| Property | ZO201N typical value | Condition / method |
|---|---|---|
| Density | 6.0 g/cm³ | JIS R 1634 |
| Water absorption | 0 % | JIS C 2141 |
| Vickers hardness | 12.3 GPa | HV9.807N (9.807 N load); JIS R 1610 |
| Three-point flexural strength | 1000 MPa | Three-point bending; JIS R 1601 |
| Young’s modulus | 200 GPa | JIS R 1602 |
| Poisson’s ratio | 0.31 | JIS R 1602 |
| Fracture toughness (SEPB) | 6 MPa·m½ | JIS R 1607 |
| Linear thermal expansion, 40–400°C | 10.5 × 10⁻⁶/K | 40–400°C; JIS R 1618 |
| Linear thermal expansion, 40–800°C | 11.0 × 10⁻⁶/K | 40–800°C; JIS R 1618 |
| Thermal conductivity | 3 W/(m·K) | 20°C; JIS R 1611 |
| Specific heat capacity | 0.46 J/(g·K) | JIS R 1611 |
| Material thermal-shock temperature difference | 300°C | Water immersion; relative method; JIS R 1648 |
| Dielectric strength | 11 kV/mm | JIS C 2141 |
| Volume resistivity, 20°C | 10¹³ Ω·cm | 20°C; JIS C 2141 |
| Volume resistivity, 300°C | 10⁶ Ω·cm | 300°C; JIS C 2141 |
| Volume resistivity, 500°C | 10³ Ω·cm | 500°C; JIS C 2141 |
| Relative permittivity | 33.0 | 1 MHz; JIS C 2141 |
| Dielectric loss tangent | 0.0016 | 1 MHz; JIS C 2141 |
Product Geometry & Configuration
| Product parameter | Configuration | Basis |
|---|---|---|
| Material system | Zirconia Ceramic Family | Material family; grade selected for the application |
| Component forms | Rings, shafts and sleeves; Blocks, plates and featured parts; Complex drawing-based components | Drawing-defined configurations |
| Geometry and dimensions | Custom sizes available | Part drawing and mating interfaces |
| Functional surfaces | Contact, locating, joining or insulating surfaces as applicable | Surface finish and acceptance criteria on the drawing |

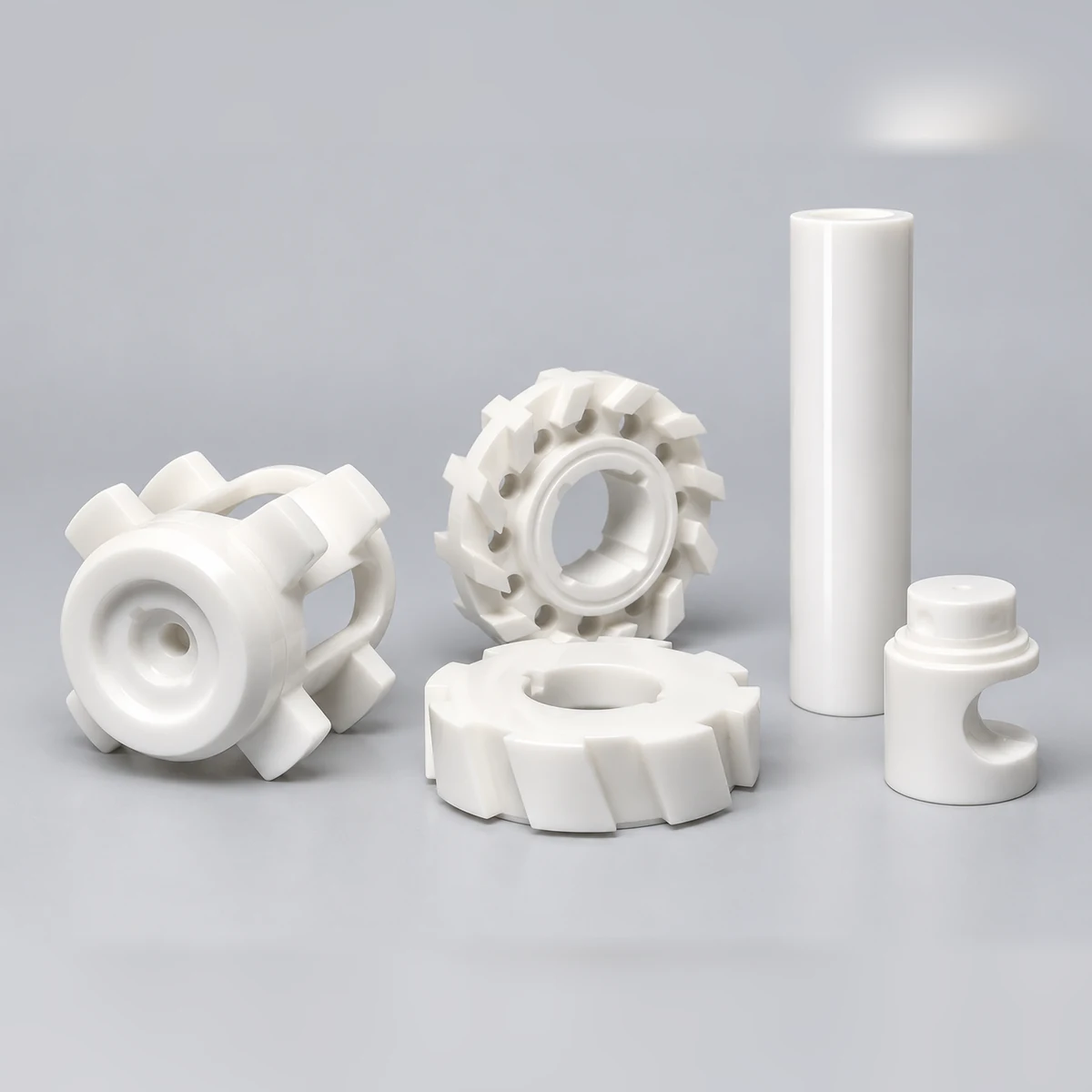

Available Forms
Representative forms are shown for selection. Final geometry, material route, interface, finish and acceptance criteria require drawing review.
- Rings, shafts and sleeves
- Blocks, plates and featured parts
- Complex drawing-based components
Packaging & Shipping
Packing and shipment arrangements are selected for the confirmed component geometry and surface requirements.
| Item | Details |
|---|---|
| Product protection | Selected for geometry, surface condition and quantity |
| Other commercial terms and lead time | Confirmed in quotation |
| Source boundary | No competitor packaging or delivery promise is inherited. |
| Payment terms | T/T / Western Union / PayPal; 50% advance payment, 50% balance before shipment |
| Shipping methods | Sea freight / Air freight / Door-to-door courier |
