Boron Nitride Hot-Zone Fixtures
Boron Nitride Ceramics Component
SKU: FWM/BN-HZF-001
- Material
- Boron Nitride Ceramic Family
- Size
- Custom sizes available
- MOQ
- Pending Verification
- Applications
- Vacuum Furnaces
Machined boron nitride supports and fixtures for vacuum, inert-gas and high-temperature equipment hot zones.
Browse Products
Alumina Ceramic Products
Zirconia Ceramic Products
Silicon Carbide Products
Silicon Nitride Products
Aluminum Nitride Products
Product Description
Machined boron nitride supports and fixtures for vacuum, inert-gas and high-temperature equipment hot zones.
Boron nitride hot-zone fixtures include supports, spacers, holders and insulation components used in controlled-atmosphere thermal equipment.
Machinability allows close-fitting support features, and electrical insulation and thermal-shock resistance are useful around heated components.
Product Features
- High-temperature electrical insulation
- Machinable Geometry
- Low Thermal Expansion
- Controlled-Atmosphere Use
Typical Applications
- Vacuum Furnaces — Hot-zone supports, spacers and insulating fixtures: Supports shaped insulation and positioning requirements.
- Semiconductor and Crystal Growth — High-temperature process fixtures: Provides an application-specific BN or PBN component route.
Product Geometry & Configuration
Hot-Pressed BN (AX05 / ZSBN) Properties
| Property / condition | AX05 — parallel / perpendicular to pressing | ZSBN — parallel / perpendicular to pressing |
|---|---|---|
| Crystalline phase | >99.5% hBN | >45% hBN; <45% ZrO₂; <10% borosilicate |
| Binder / bond | Self bonded | Borosilicate glass |
| Density (g/cm³) | 1.9 | 2.9 |
| Open porosity (%) | 19.3 | 1.1 |
| Flexural strength (MPa) — 25°C | 22 / 21 | 144 / 107 |
| Young’s modulus (GPa) — 25°C | 17 / 71 | 71 / 71 |
| Compressive strength (MPa) — 25°C | 25 / — | 219 / 254 |
| Knoop hardness (kg/mm²) | 4 | 100 |
| Thermal conductivity (W/(m·K)) — 25°C | 78 / 130 | 24 / 34 |
| Linear thermal expansion (10⁻⁶/K) — 25–400°C | −2.3 / −0.7 | 4.1 / 3.4 |
| Linear thermal expansion (10⁻⁶/K) — 400–800°C | −2.5 / 1.1 | 5.6 / 4.3 |
| Specific heat (J/(g·K)) — 25°C | 0.81 | 0.64 |
| Typical maximum material temperature, oxidizing (°C) | 850 | 850 |
| Typical maximum material temperature, inert (°C) | 2000 | 1600 |
| Relative permittivity — 1 MHz | 4.0 / 4.0 | 18 / 19 |
| Dielectric loss tangent — 1 MHz | 0.0012 / 0.0003 | 0.045 / 0.067 |
| Dielectric strength (kV/mm) | 79 | 3.5 |
| Volume resistivity (Ω·cm) — 25°C | >10¹³ / >10¹⁴ | >10¹³ / >10¹² |
Product Geometry & Configuration
| Product parameter | Configuration | Basis |
|---|---|---|
| Material system | Boron Nitride Ceramic Family | Material family; grade selected for the application |
| Component forms | Supports and spacers; Rings, sleeves and holders; Custom hot-zone fixtures | Drawing-defined configurations |
| Geometry and dimensions | Custom sizes available | Part drawing and mating interfaces |
| Functional surfaces | Contact, locating, joining or insulating surfaces as applicable | Surface finish and acceptance criteria on the drawing |
Available Forms
Representative forms are shown for selection. Final geometry, material route, interface, finish and acceptance criteria require drawing review.

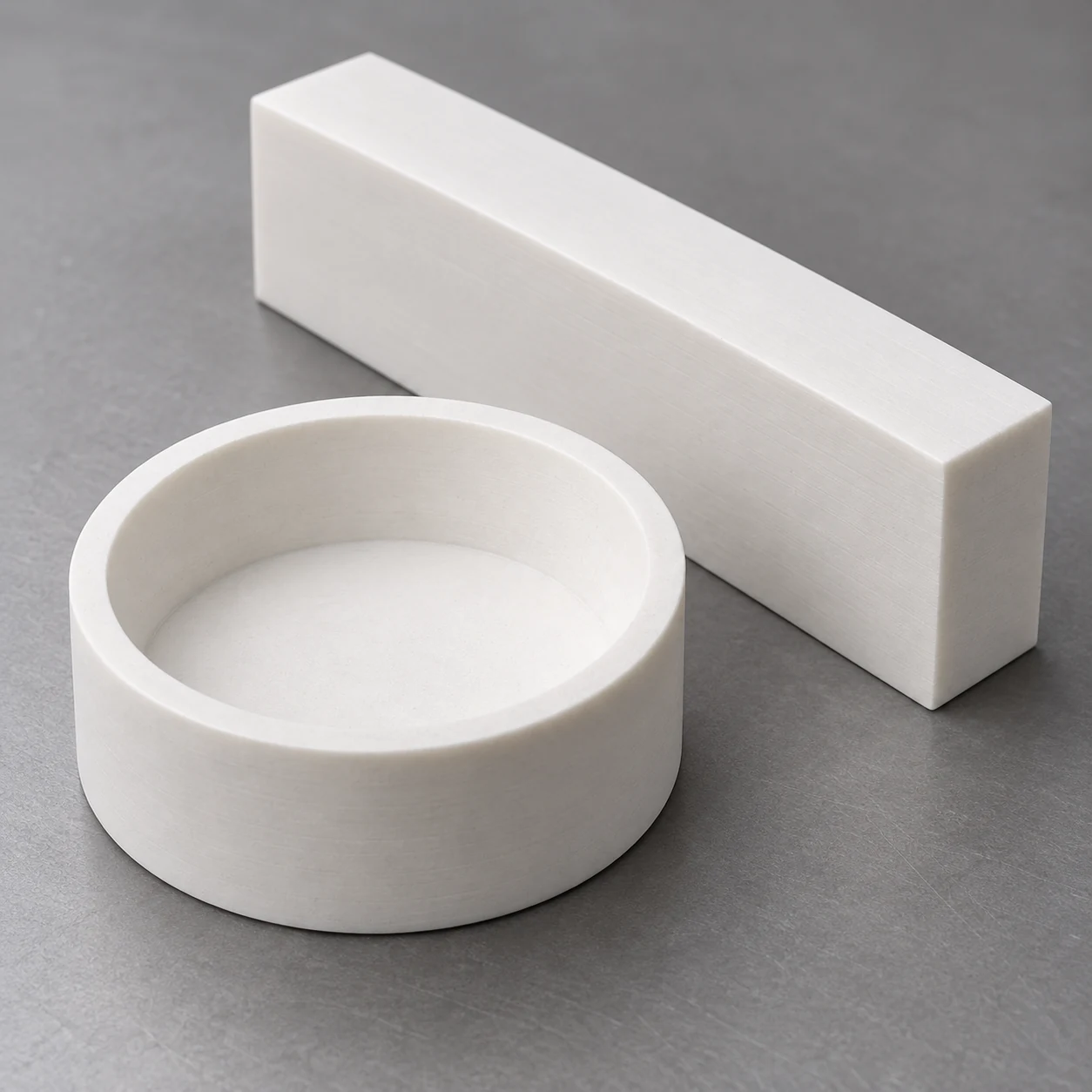

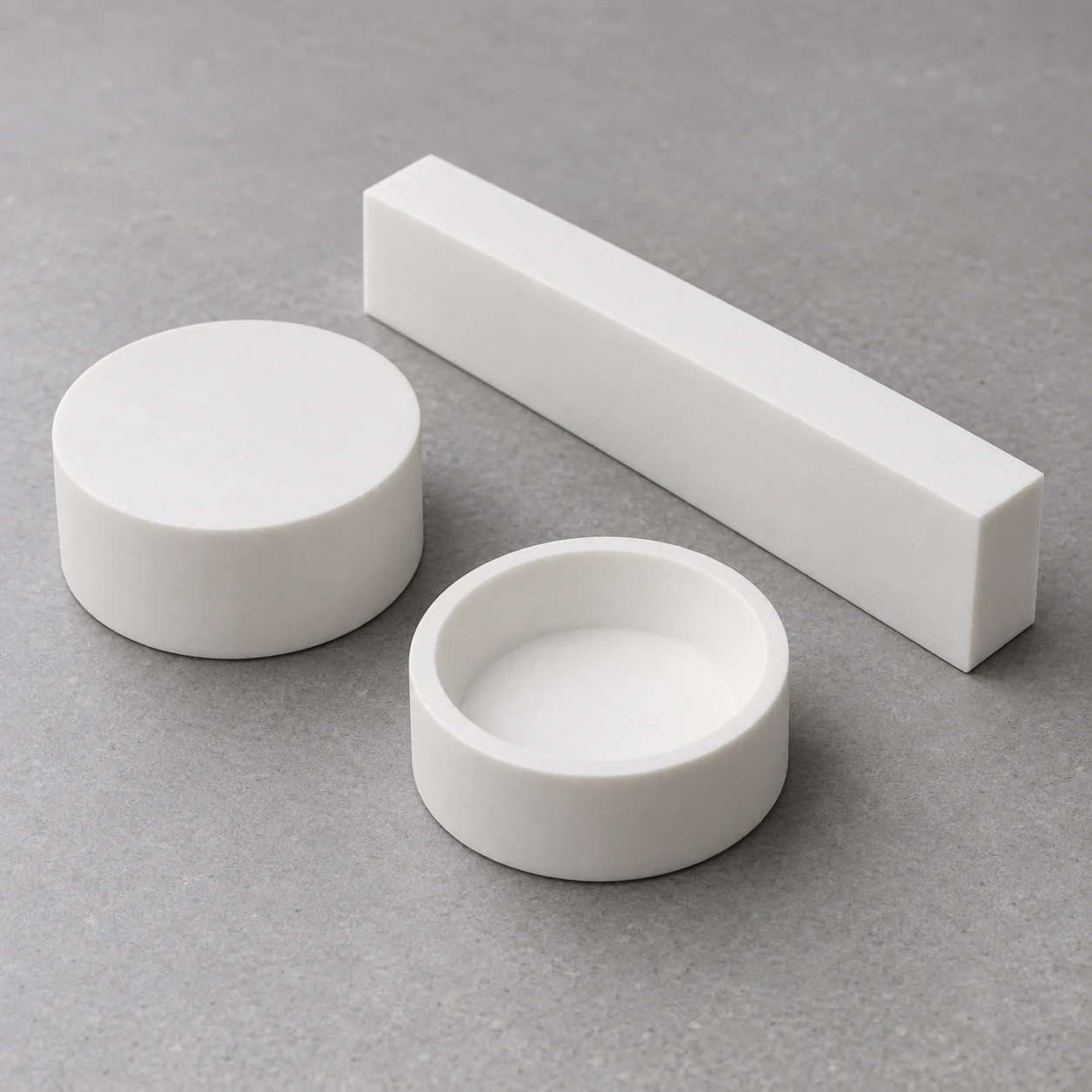

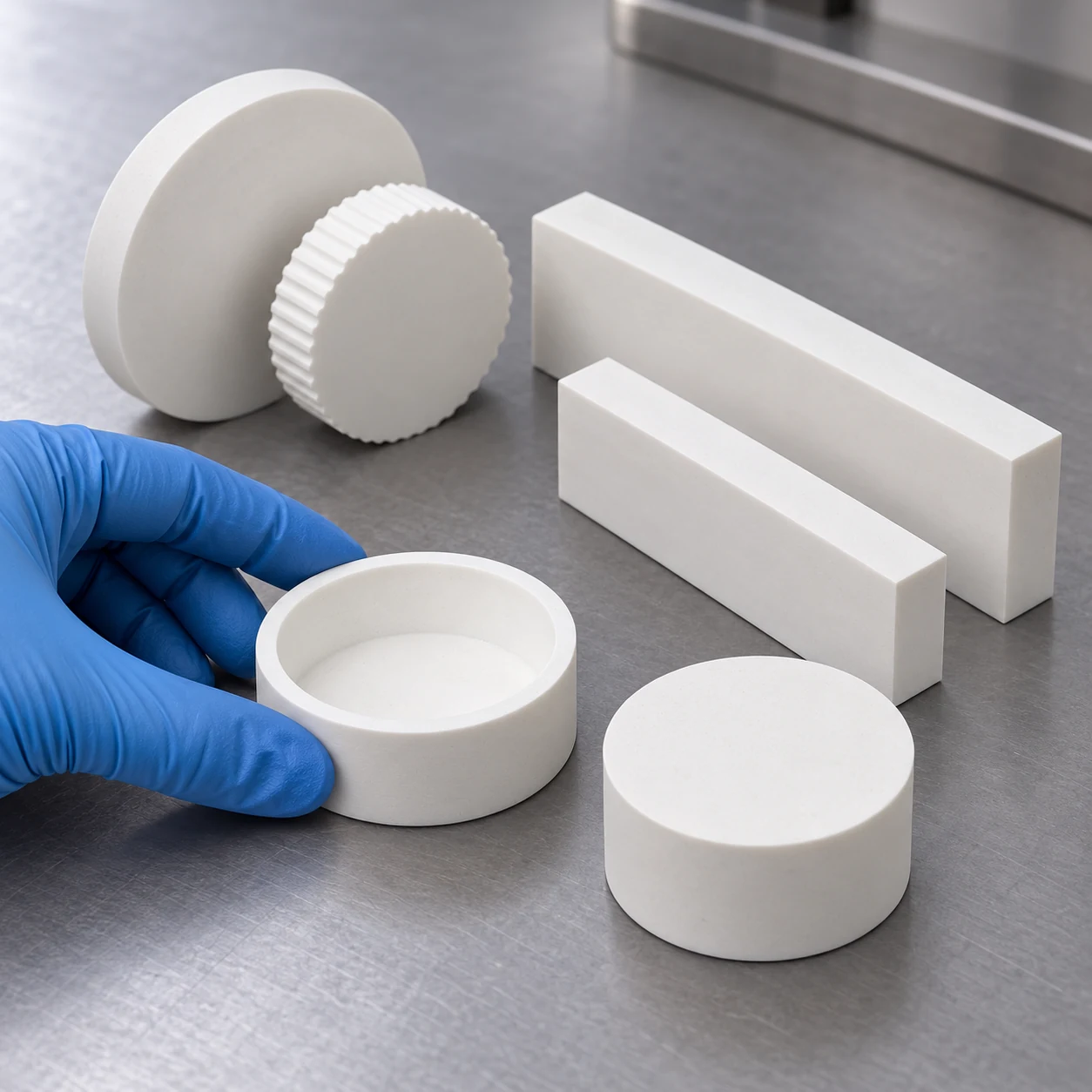

- Supports and spacers
- Rings, sleeves and holders
- Custom hot-zone fixtures
Packaging & Shipping
Packing and shipment arrangements are selected for the confirmed component geometry and surface requirements.
| Item | Details |
|---|---|
| Product protection | Selected for geometry, surface condition and quantity |
| Other commercial terms and lead time | Confirmed in quotation |
| Source boundary | No competitor packaging or delivery promise is inherited. |
| Payment terms | T/T / Western Union / PayPal; 50% advance payment, 50% balance before shipment |
| Shipping methods | Sea freight / Air freight / Door-to-door courier |
