AMB Ceramic Substrates for Power Electronics

FreeWill Material ceramic substrates and power module thermal-management assembly

AMB ceramic substrates join copper conductors to ceramic with an active-metal braze.

Product Description

AMB ceramic substrates join copper conductors to ceramic with an active-metal braze. The copper carries current and spreads heat, while the ceramic provides electrical isolation and support for power-module layouts.

Silicon nitride, aluminum nitride and alumina AMB constructions use different ceramic and braze combinations. Ceramic properties, layer thicknesses and copper distribution describe the same stack when thermal or mechanical behavior is assessed.

Product Advantages

  • Active-metal brazing joins copper and ceramic in an integrated circuit carrier.
  • Copper layers provide current paths, attachment pads and heat-spreading areas.
  • Ceramic selection balances heat conduction, electrical insulation and resistance to mechanical stress.
  • Defined copper distribution and layer geometry support power-module assembly and thermal-cycle evaluation.

Typical Applications

Copper circuits and ceramic insulation support the electrical and thermal paths in power assemblies.

  • EV Traction Inverters
  • SiC Power Modules
  • Automotive Inverters
  • High-Reliability Power Modules

Technical Data

Construction Parameters

AMB Construction Parameters

Construction itemTypical configurationApplicable condition
Ceramic baseSi3N4, AlN or aluminaMaterial-specific ceramic / braze stack
Si3N4 thickness0.25 / 0.32 mmSi₃N₄ ceramic layer
Copper thickness0.30 / 0.40 / 0.50 / 0.80 mmSelected AMB layer combinations
PatternCustom power circuitDrawing review required
Surface finishBare Cu and selected plated finishesAssembly-process dependent

Construction Selection

Ceramic, Copper & Interfaces

ElementFunctionConstruction definition
CeramicElectrical insulation and heat pathMaterial grade, thickness and functional surface
CopperCurrent paths, attachment and heat spreadingTop / bottom thickness, pattern and isolation gaps
Interface and finishCopper attachment and subsequent assemblyBraze system, copper coverage and attachment finish
Thermal / electrical assessmentPerformance of the complete stackLayer geometry, test method, operating conditions and interfaces

Product configuration

Processing & Configuration

Processing defines the conductor geometry and the surfaces used in assembly.

  • Ceramic / braze selection
  • Copper joining
  • Copper-pattern definition
  • Top / bottom copper layouts
  • Attachment-surface finish
  • Individual units or master cards

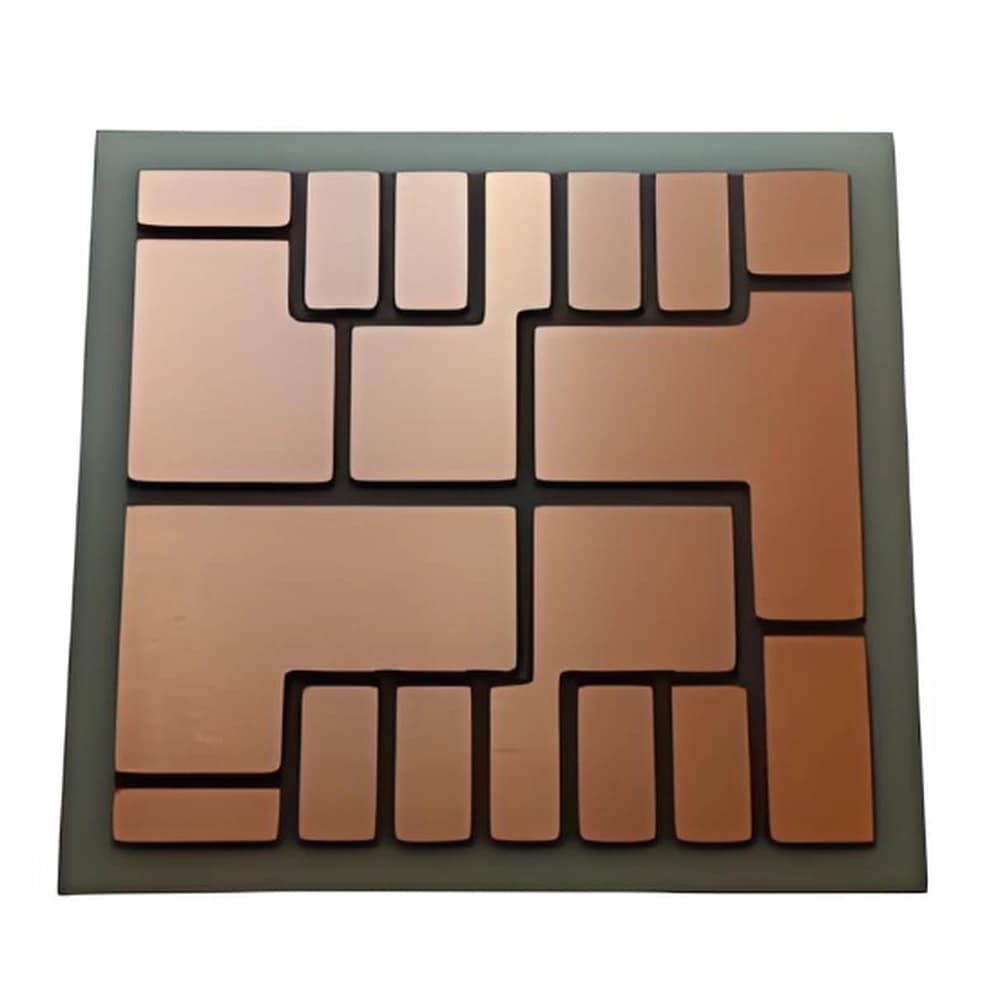

  • Custom circuit artwork
  • Single- or double-sided copper
  • Selected asymmetric configurations
  • Bare or plated copper finishes
  • Electrical and bond testing to agreed criteria

Configuration Scope

AMB configurations reviewed by drawing.

Ceramic base, copper system, circuit layout, finish and qualification requirements are reviewed together.

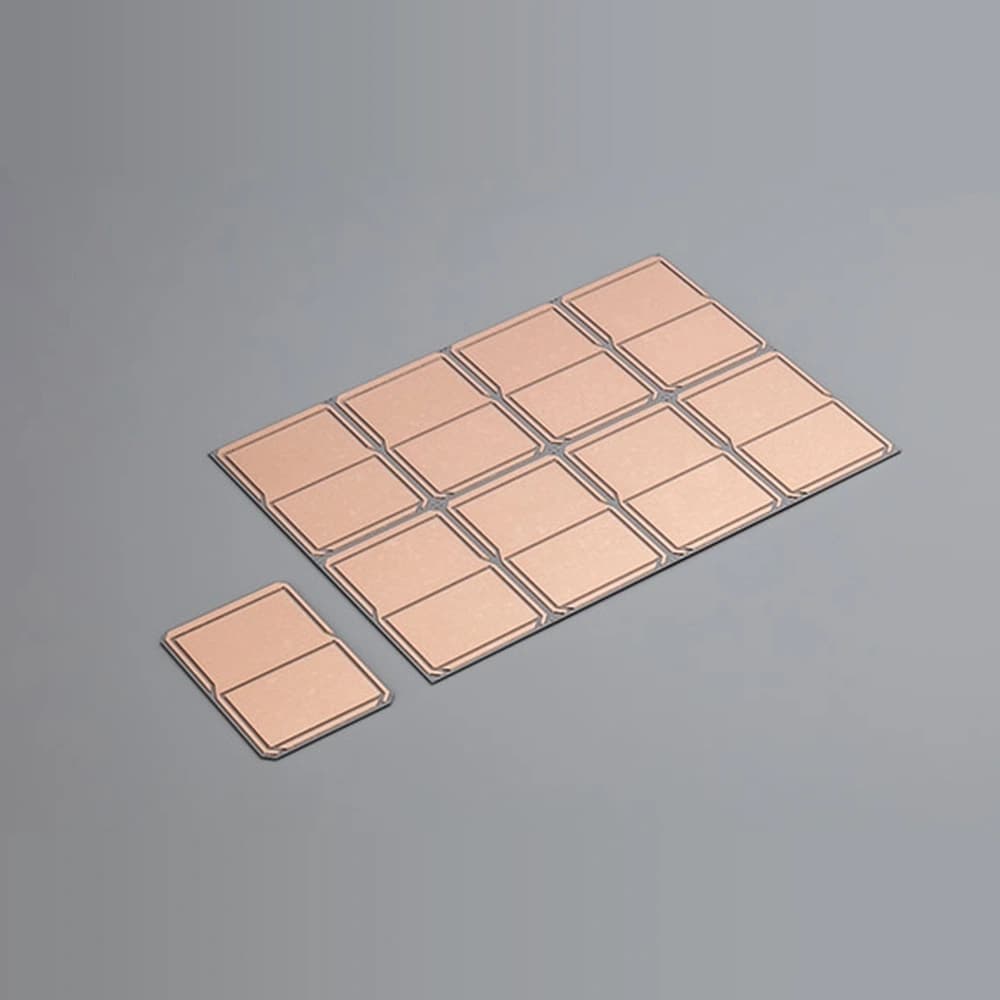

  • Si3N4 AMB Substrates

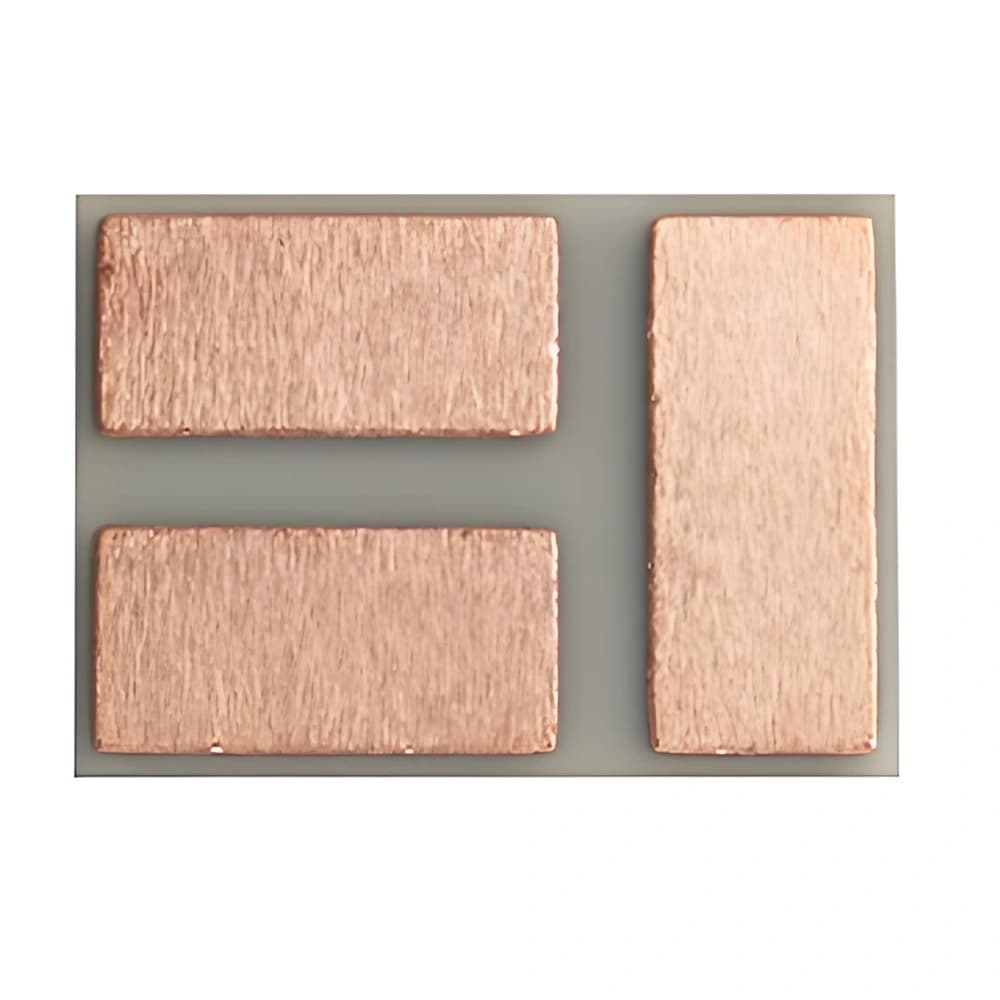

  • Selected AlN AMB Substrates

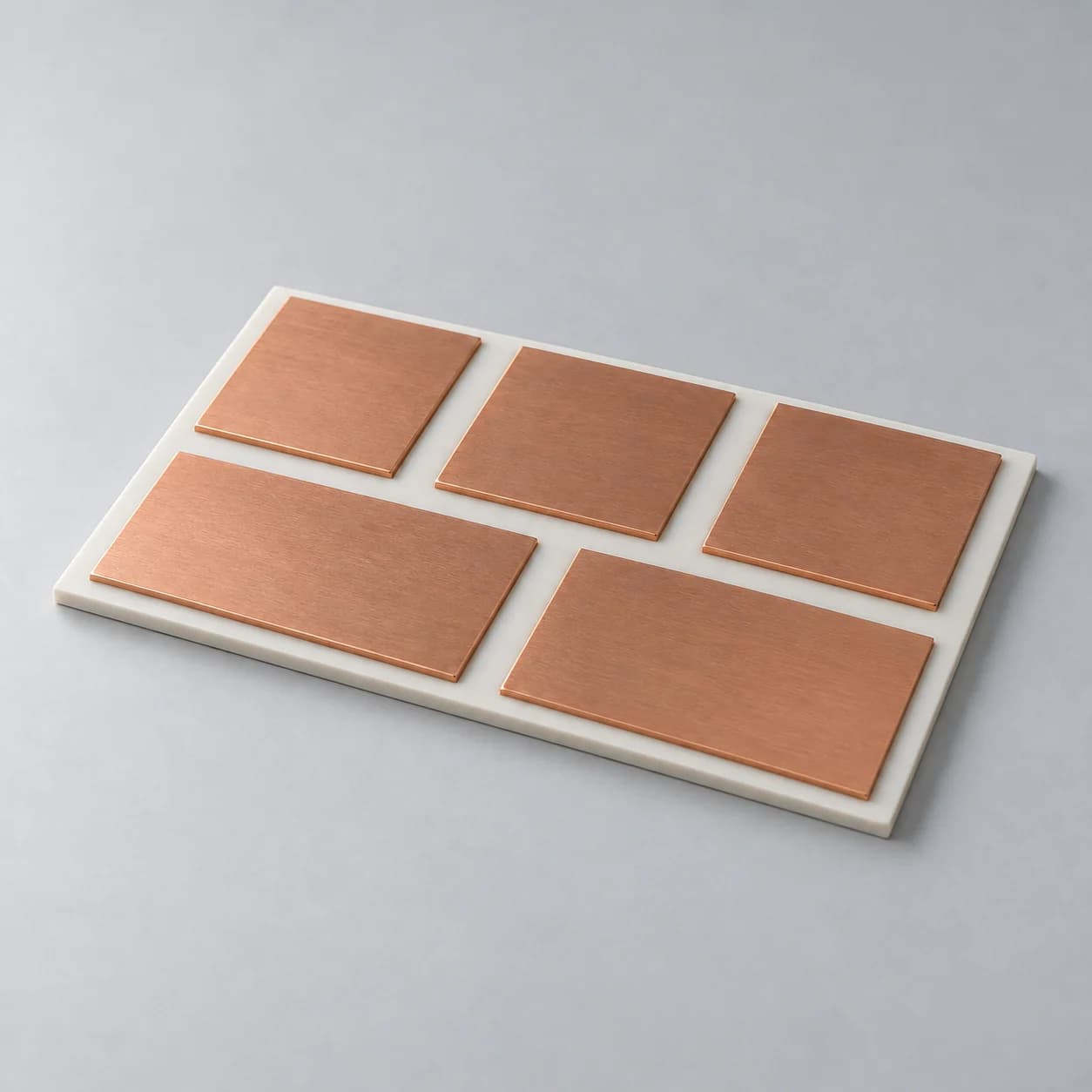

  • Selected Alumina AMB Substrates
  • Custom Thick-Copper Power Circuits

Quality & Inspection

Inspect both ceramic and metallization.

Inspection and documentation are available on request and defined during quotation.

  • Ceramic and copper thickness
  • Pattern dimensions and isolation gaps
  • Flatness / bending
  • Surface-finish thickness
  • Visual and electrical inspection
  • Bond, peel or braze-integrity tests when specified

Ordering Information

MOQ and typical lead time.

MOQ and lead time depend on ceramic base, copper layout, finish, panel utilization, quantity and qualification requirements.

Recommended MOQ

5 pieces or one master-card equivalent

AMB

6-10 weeks

FAQ

Questions buyers commonly ask.

Practical sourcing questions for material selection, processing and ordering.

Can multiple ceramic bases be used?

Yes. Alumina and AlN are common for DBC/DPC, while Si3N4 is the priority AMB base for high-reliability power modules.

What determines circuit line and isolation-gap dimensions?

Copper thickness, braze system, pattern coverage and electrical clearance define the joined circuit geometry.

What information is required for quotation?

Provide ceramic and copper thickness, metallization route, circuit file, finish, electrical or reliability criteria, quantity and assembly process.

Packaging & Shipping

Protect patterns, finishes and ceramic edges.

Packaging is selected for master cards, individual units and copper surface condition.

  • Individual separation
  • Anti-scratch surface protection
  • Rigid trays or master-card frames
  • Copper corrosion protection where appropriate
  • Inner box and export carton
  • Wooden case when required

What to Specify for RFQ

Provide the complete ceramic and circuit definition.

Metallized substrates require more than an outline drawing.

  • DBC, DPC, AMB or other route
  • Ceramic base and grade
  • Ceramic thickness
  • Copper / metal thickness
  • Circuit drawing / Gerber / DXF
  • Minimum line and isolation gap
  • Surface finish
  • Flatness / warpage
  • Electrical / bond tests
  • Quantity and delivery target
