Silicon Carbide Sleeves
Silicon Carbide Ceramic Component
SKU: FWM/SC-SLEEVE-001
Product Configuration
Conceptual geometry guide; final configuration follows the approved drawing.

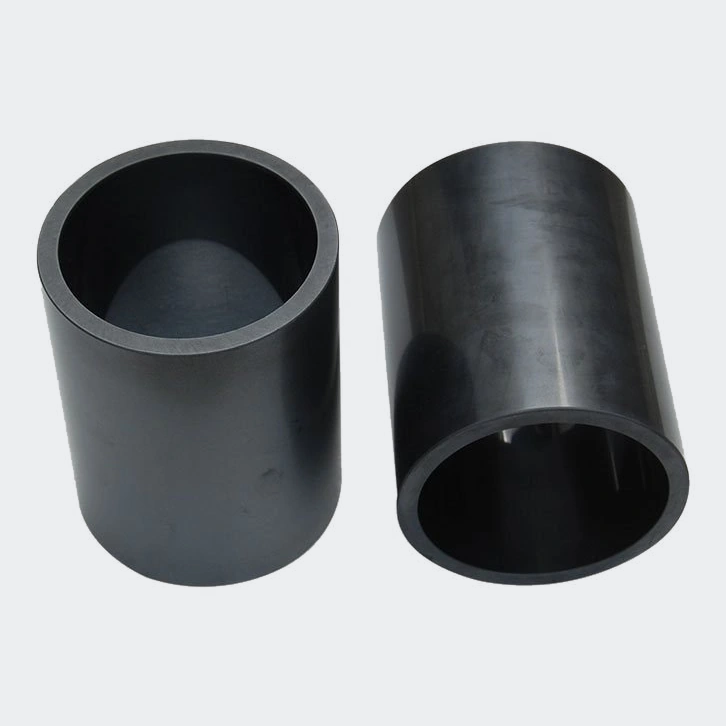

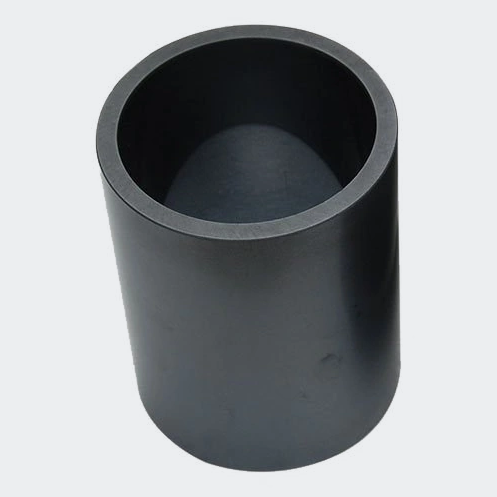

Straight Sleeve
Representative form for drawing review.
Flanged Sleeve
Alternative geometry for application review.
- Material
- Silicon Carbide (SiC)
- Size
- Custom sizes available
- MOQ
- 5 pieces per type
- Applications
- Pumps & Compressors
Silicon Carbide Sleeves (also known as SiC bushings, shaft sleeves or ceramic liners) are high-performance precision components designed for extreme wear, corrosion and high-temperature environments.
- Custom dimensions and geometries - Precision grinding and polishing of inner/outer surfaces and end faces - Material grade selection for specific wear, corrosion or temperature requirements - OEM & ODM support from prototype to volume production
Browse Products
Alumina Ceramic Products
Zirconia Ceramic Products
Silicon Carbide Products
Silicon Nitride Products
Aluminum Nitride Products
Product Description
Review representative product forms and application context below. Final geometry and acceptance criteria are confirmed from the drawing and operating conditions.
Silicon Carbide Sleeves (also known as SiC bushings, shaft sleeves or ceramic liners) are high-performance precision components designed for extreme wear, corrosion and high-temperature environments.
Manufactured from high-purity silicon carbide ceramics, these sleeves offer exceptional hardness, low friction, outstanding chemical resistance and excellent dimensional stability. They are widely used as hard rings in mechanical seals, bushings in pumps and bearings, and wear-resistant liners in abrasive and corrosive process equipment.
Manufacturing process (source record): High-purity SiC powder → forming → sintering (SSiC / RBSiC / RSiC) → precision diamond grinding and polishing → final inspection. （具体工艺路线与能力待我方确认）
Quality control (source record): Dimensional inspection, surface quality check, material property verification and batch traceability. （具体质控标准与流程待确认）
Data status: the source record is not supplier-verified. Numerical values are typical engineering references, not guaranteed product specifications; final values require grade, drawing and test-basis confirmation.
Product Features
- Extreme hardness and superior wear resistance (significantly longer service life than metals or alumina)
- Excellent chemical inertness against acids, alkalis and corrosive fluids
- High thermal conductivity and thermal shock resistance
- Low coefficient of friction for smooth operation
- High strength and dimensional stability under load and temperature
- Precision machined surfaces suitable for sealing and bearing applications
Typical Applications
- Mechanical seal faces and hard rings for pumps and compressors

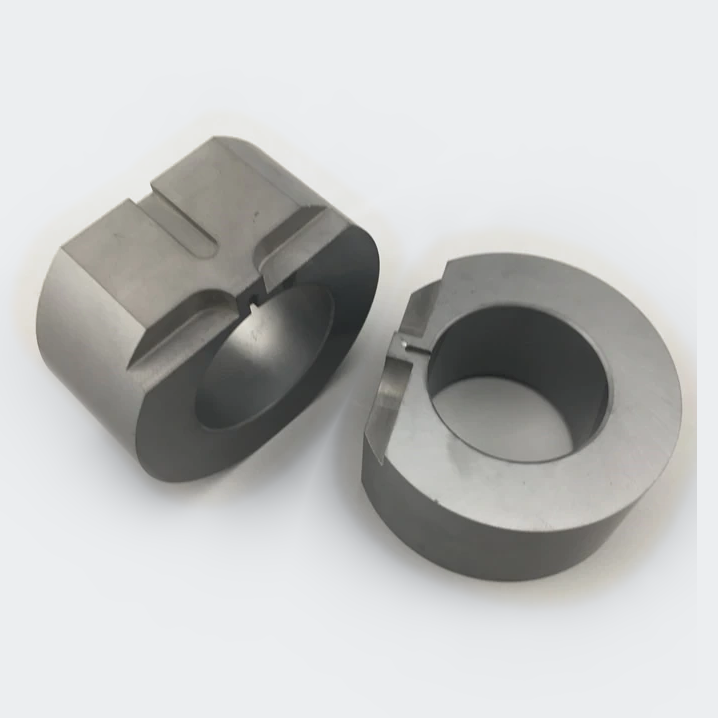

- Shaft sleeves and bushings in magnetic drive pumps, slurry pumps and sealless pumps
- Wear-resistant liners for pipes, hydrocyclones, grinders and sandblasting equipment
- High-temperature radiant tube liners and sliding bearings
- Chemical process equipment handling abrasive or corrosive media
Technical Data
| Property | Unit | SSiC | RBSiC | RSiC |
|---|---|---|---|---|
| Color | — | Black / dark gray | Black / dark gray | Black / dark gray |
| Bulk density | g/cm³ | ≥ 3.10 | ≥ 3.03 | 2.65 – 2.80 |
| Open porosity | % | < 0.2 | < 0.2 | < 16 |
| Hardness | HV0.5 | Approx. 2100 – 2600 | Approx. 2000 | Approx. 1800 – 2200 |
| Elastic modulus | GPa | Approx. 400 | Approx. 350 | Approx. 250 – 300 |
| Flexural strength at 25°C | MPa | ≥ 400 | ≥ 350 | 100 – 200 |
| Compressive strength at 25°C | MPa | ≥ 2200 | ≥ 2000 | ≥ 1500 |
| Thermal conductivity at 25°C | W/(m·K) | ≥ 110 | ≥ 90 | 80 – 120 |
| Coefficient of thermal expansion | 10⁻⁶/K | Approx. 4.0 | Approx. 4.0 | Approx. 4.0 – 4.5 |
| Maximum service temperature | °C | Up to 1650 | Up to 1300 – 1400 | Up to 1600 – 1650 |
Typical reference values for material selection only. Final specifications are confirmed against drawing, grade and operating conditions. Values shown are typical material data for reference and may vary with grade, geometry and test method. Final specifications should be confirmed against the drawing and operating conditions. （数据为行业与同行典型参考值，待我方实测验证后更新）
Available Forms
Representative forms are shown for selection. - Custom dimensions and geometries - Precision grinding and polishing of inner/outer surfaces and end faces - Material grade selection for specific wear, corrosion or temperature requirements - OEM & ODM support from prototype to volume production
- Standard and fully custom sizes available. Inner diameter
- outer diameter
- length and wall thickness according to customer drawings.
Packaging & Shipping
Packing and shipment arrangements are selected for the confirmed component geometry and order requirements.
| Item | Details |
|---|---|
| Packaging & shipping | Protective packaging to prevent impact and contamination during transit. Suitable for clean industrial delivery. |
