Silicon Nitride Ceramic Bearings
Silicon Nitride Ceramic Component
SKU: FWM/SN-BRG-001
- Material
- Silicon Nitride
- Size
- Custom by drawing
- MOQ
- By quotation
- Applications
- Precision Machinery
Silicon nitride bearing components for high-speed, wear-resistant, electrically insulating and precision rotating systems.
Browse Products
Alumina Ceramic Products
Zirconia Ceramic Products
Silicon Carbide Products
Silicon Nitride Products
Aluminum Nitride Products
Product Description
Silicon nitride bearings use ceramic rolling elements, or ceramic rings and rolling elements, to support rotation with low inertia and wear-resistant contact surfaces.
A hybrid bearing combines silicon nitride rolling elements with metal rings; a full ceramic bearing also uses ceramic rings. Silicon nitride's low density reduces rolling-element inertia, and its hardness and electrical insulation are useful in precision spindles, motors and other rotating equipment.
Product Features
- Low-density rolling elements to reduce inertia
- Hard rolling surfaces for wear resistance
- Electrical insulation from silicon nitride rolling elements
- High stiffness for precision rotating assemblies
Typical Applications
- Machine-tool spindles and precision rotating assemblies
- Electric motors requiring electrically insulating rolling elements
- Hybrid or full-ceramic bearing assemblies matched to the duty
95% Si₃N₄ Typical Properties
| Property | 95% Si₃N₄ | Condition / method |
|---|---|---|
| Density (g/cm³) | ≥3.2 | — |
| Young’s modulus (GPa) | 300 | — |
| Fracture toughness (MPa·m½) | 6.2 | — |
| Flexural strength (MPa) | >720 | 25°C |
| Compressive strength (MPa) | 2200 | 25°C |
| Thermal conductivity (W/(m·K)) | 15–20 | 25°C |
| Coefficient of thermal expansion (10⁻⁶/K) | 3.0–3.2 | 25–1000°C |
| Volume resistivity (Ω·cm) | >10¹⁴ | 25°C |
| Typical maximum material temperature (°C) | 1200 | — |
| Poisson’s ratio | 0.26 | — |
| Dielectric strength (kV/mm) | 16 | — |
| Relative permittivity | 8.2 | 1 MHz; 25°C |
| Dielectric loss tangent | 0.004 | 1 GHz; 25°C |

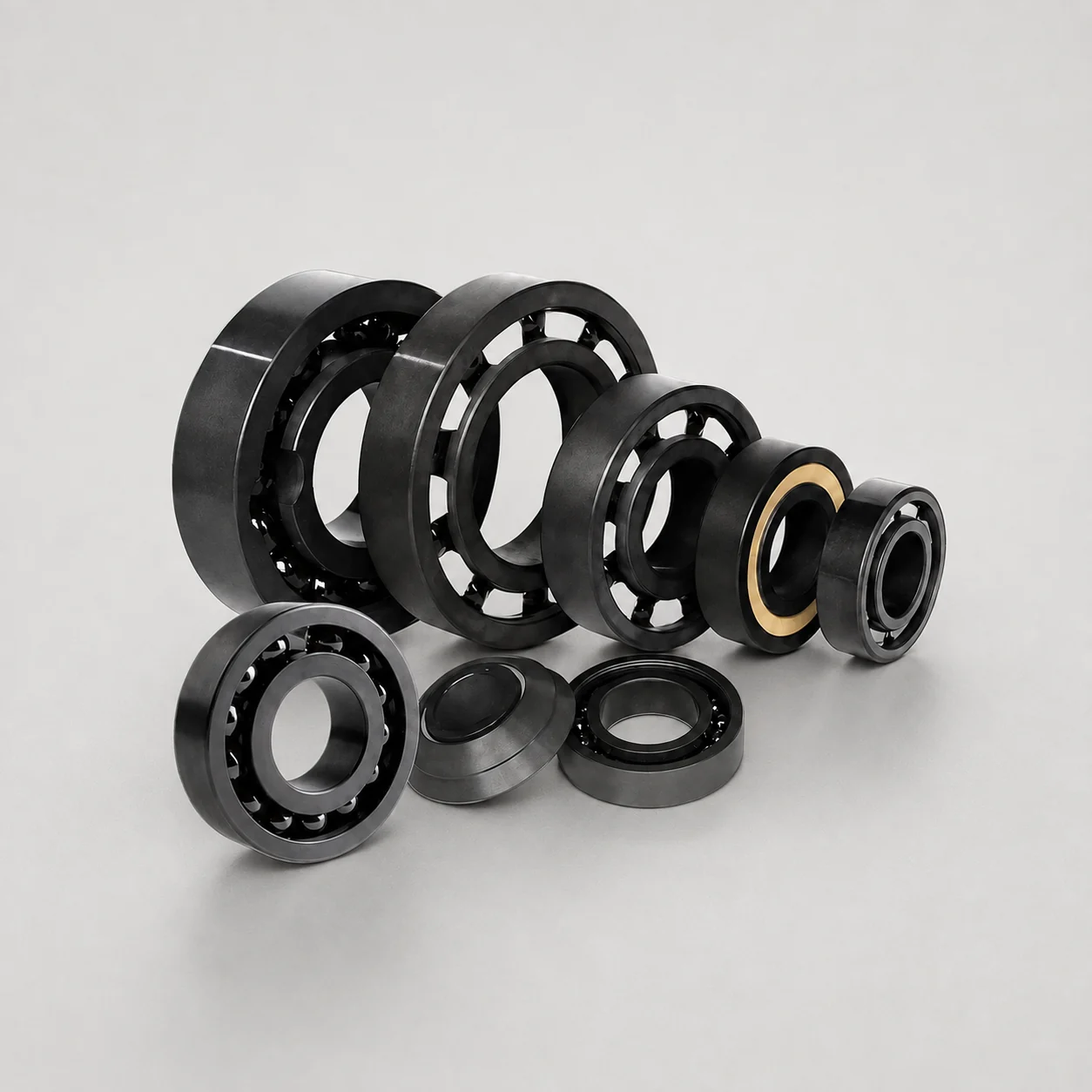

Available Forms
Representative forms are shown for selection; final geometry follows the approved drawing.
- Full ceramic bearings
- Hybrid ceramic bearings
- Custom bearing rings and rolling elements
Packaging & Shipping
Packing and shipment arrangements are selected for the confirmed component geometry and order requirements.
| Item | Details |
|---|---|
| Product protection | Protection method is selected for the component geometry, surface condition and quantity. |
| Other commercial terms | Confirmed in quotation |
| Payment terms | T/T / Western Union / PayPal; 50% advance payment, 50% balance before shipment |
| Shipping methods | Sea freight / Air freight / Door-to-door courier |
