Silicon Carbide Vacuum Chucks / SiC Ceramic Suction Cups
Silicon Carbide Ceramic Component
SKU: FWM/SC-CHUCK-001
Product Configuration
Conceptual geometry guide; final configuration follows the approved drawing.

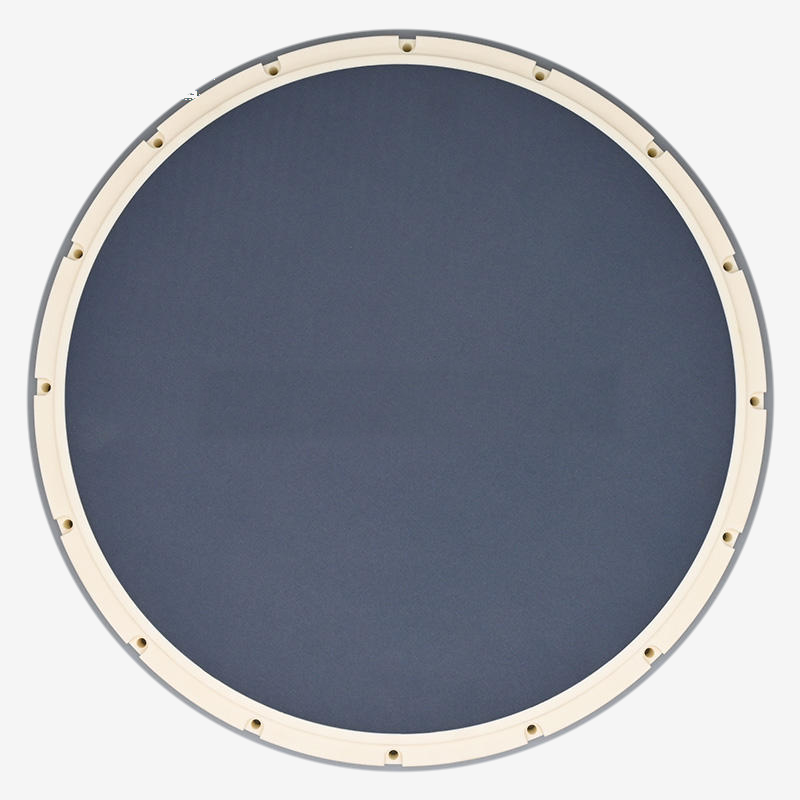

Vacuum Surface
Representative form for drawing review.

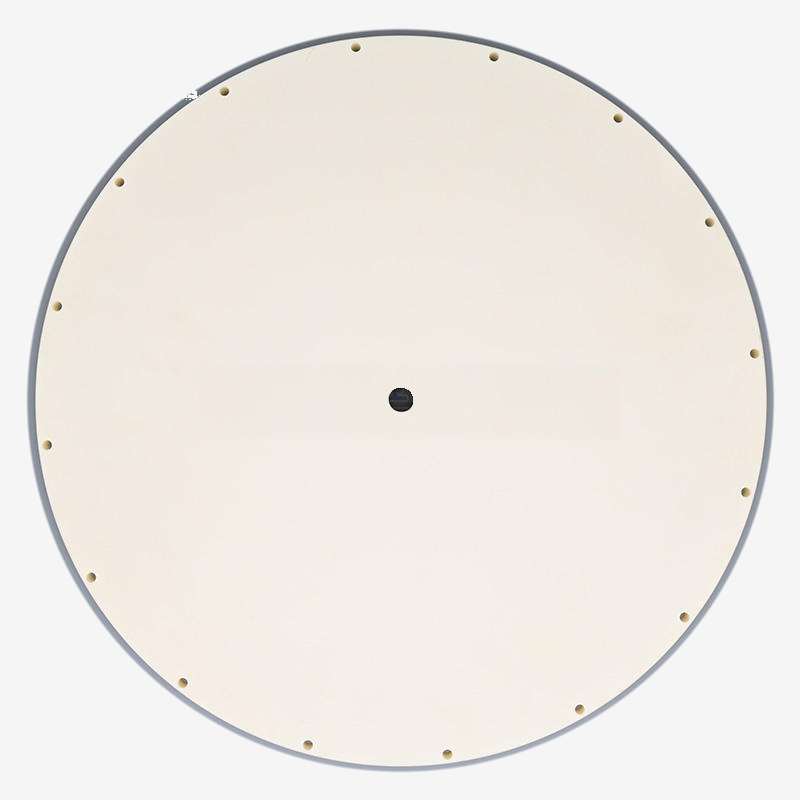

Mounting Interface
Alternative geometry for application review.
- Material
- Silicon Carbide (SiC)
- Size
- Custom sizes available
- MOQ
- 5 pieces per type
- Applications
- Semiconductor & Microelectronics
Silicon Carbide Vacuum Chucks (also known as SiC ceramic suction cups) are high-performance vacuum handling components engineered for extreme temperature, corrosive and abrasive environments where conventional polymers and metals fail.
Customizable vacuum port and bespoke interfaces. Send drawing, dimensions, operating temperature/pressure and quantity for confirmation before quotation.
Browse Products
Alumina Ceramic Products
Zirconia Ceramic Products
Silicon Carbide Products
Silicon Nitride Products
Aluminum Nitride Products
Product Description
Review representative product forms and application context below. Final geometry and acceptance criteria are confirmed from the drawing and operating conditions.
Silicon Carbide Vacuum Chucks (also known as SiC ceramic suction cups) are high-performance vacuum handling components engineered for extreme temperature, corrosive and abrasive environments where conventional polymers and metals fail.
Made from high-purity silicon carbide with near-zero porosity, these suction cups can withstand continuous operation up to 1900 °C, maintain structural integrity under harsh conditions, and provide reliable, contamination-free gripping. They are ideal for automated handling inside sintering furnaces, steel and glass processing, chemical environments, and power electronics packaging.
Manufacturing process (source record): High-purity SiC powder → forming → high-temperature sintering → precision machining → final inspection.
Quality control (source record): Dimensional inspection, porosity and vacuum integrity check, surface quality verification and batch traceability.
Data status: the source record is not supplier-verified. Numerical values are typical engineering references, not guaranteed product specifications; final values require grade, drawing and test-basis confirmation.
Product Features
- Continuous working temperature up to 1900 °C
- Near-zero porosity (< 0.07 %) ensuring vacuum integrity and minimal outgassing
- High purity (SiC > 99 %, free silicon < 0 %) – contamination-free
- Excellent thermal conductivity (approx. 140 W/m·K) for rapid heat dissipation
- Extreme hardness (Mohs 9) and superior wear resistance
- Customizable vacuum ports and interfaces
Typical Applications
- Automated handling inside sintering furnaces
- Steel and glass high-temperature handling
- Chemical processing and corrosive environments
- Power electronics packaging and microelectronics transfer
- Optoelectronics contamination-free gripping
- High-temperature and high-abrasion industrial handling
Technical Data
| Property | Unit | SSiC | RBSiC | RSiC |
|---|---|---|---|---|
| Color | — | Black / dark gray | Black / dark gray | Black / dark gray |
| Bulk density | g/cm³ | ≥ 3.10 | ≥ 3.03 | 2.65 – 2.80 |
| Open porosity | % | < 0.2 | < 0.2 | < 16 |
| Hardness | HV0.5 | Approx. 2100 – 2600 | Approx. 2000 | Approx. 1800 – 2200 |
| Elastic modulus | GPa | Approx. 400 | Approx. 350 | Approx. 250 – 300 |
| Flexural strength at 25°C | MPa | ≥ 400 | ≥ 350 | 100 – 200 |
| Compressive strength at 25°C | MPa | ≥ 2200 | ≥ 2000 | ≥ 1500 |
| Thermal conductivity at 25°C | W/(m·K) | ≥ 110 | ≥ 90 | 80 – 120 |
| Coefficient of thermal expansion | 10⁻⁶/K | Approx. 4.0 | Approx. 4.0 | Approx. 4.0 – 4.5 |
| Maximum service temperature | °C | Up to 1650 | Up to 1300 – 1400 | Up to 1600 – 1650 |
Typical reference values for material selection only. Final specifications are confirmed against drawing, grade and operating conditions. Values shown are typical material data for reference and may vary with grade, geometry and test method. Final specifications should be confirmed against the drawing and operating conditions.
Available Forms
Representative forms are shown for selection. Customizable vacuum port and bespoke interfaces. Send drawing, dimensions, operating temperature/pressure and quantity for confirmation before quotation.
- Standard and custom vacuum suction cups
- Custom vacuum ports and mounting interfaces
Packaging & Shipping
Packing and shipment arrangements are selected for the confirmed component geometry and order requirements.
| Item | Details |
|---|---|
| Packaging & shipping | Individually protected, cushioned and packed in export cartons or wooden cases according to size, quantity and transport requirements. Payment terms, port of shipment and shipping options confirmed in the quotation. |
