Boron Nitride Insulators
Boron Nitride Ceramics Component
SKU: FWM/BN-INS-001
- Material
- Boron Nitride Ceramic Family
- Size
- Custom sizes available
- MOQ
- Pending Verification
- Applications
- High-Temperature Equipment
Machined boron nitride electrical insulators for high-temperature assemblies and equipment interfaces.
Browse Products
Alumina Ceramic Products
Zirconia Ceramic Products
Silicon Carbide Products
Silicon Nitride Products
Aluminum Nitride Products
Product Description
Machined boron nitride electrical insulators for high-temperature assemblies and equipment interfaces.

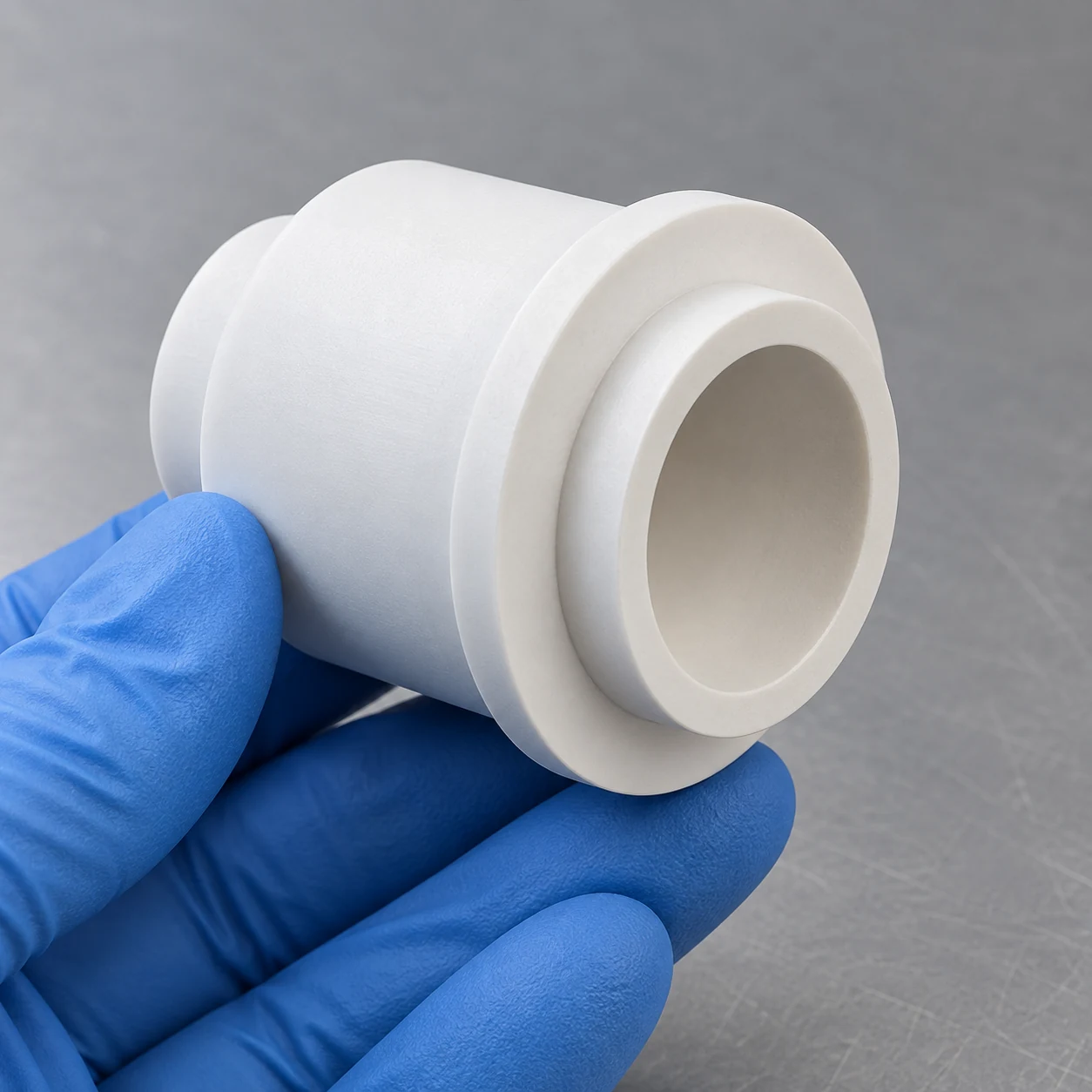

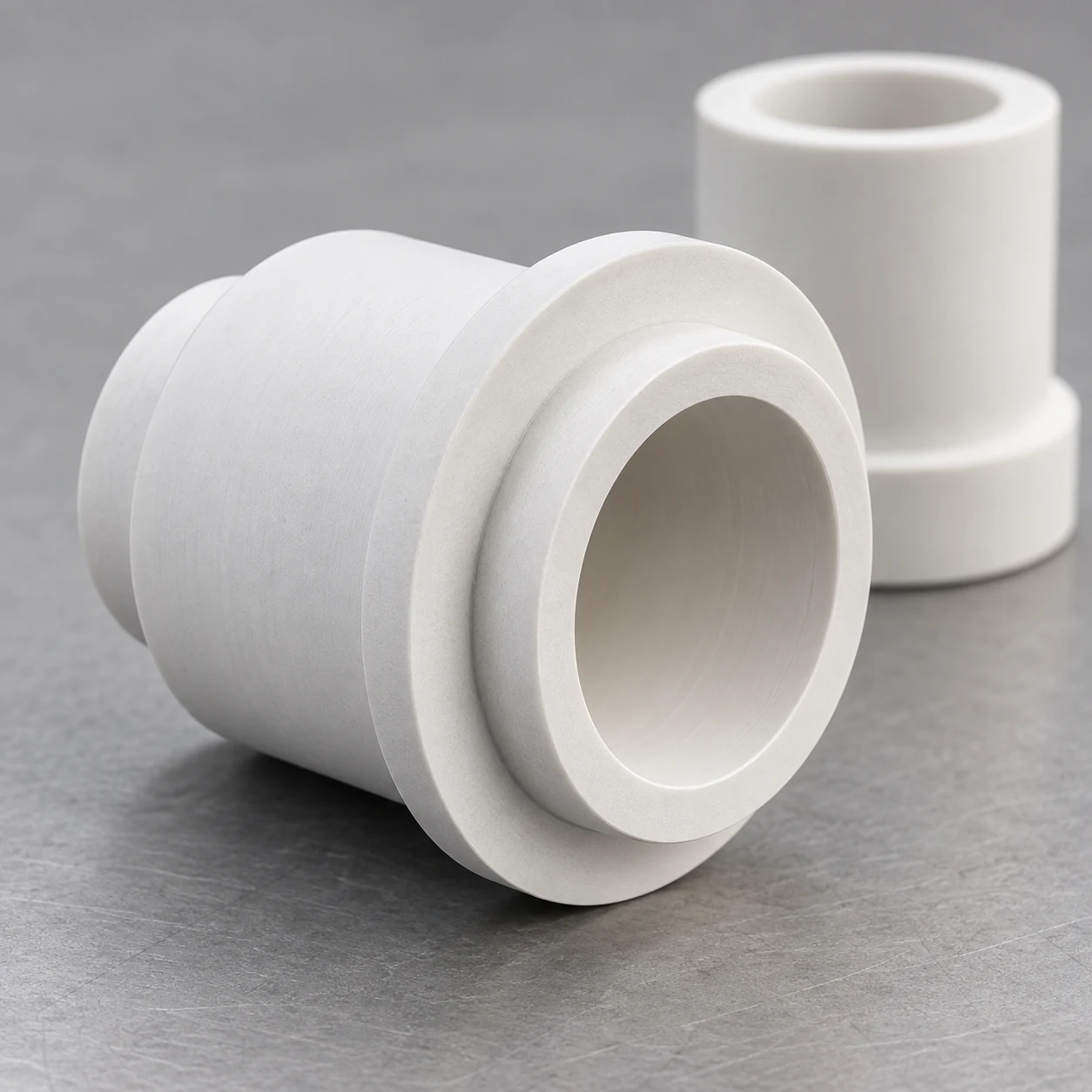

Boron nitride insulators are used as rings, sleeves, spacers and custom supports where machinability and high-temperature electrical isolation are selection factors.
BN can be machined into complex insulating shapes and also conducts heat; electrical insulation should not be confused with a universal thermal-barrier function.
Product Features
- Electrical Insulation
- Heat-Conducting Electrical Insulation
- Machinability
- Custom Interfaces
Typical Applications
- High-Temperature Equipment — Electrical isolation and thermal support assemblies: Supports machinable insulating geometry in controlled environments.
- Vacuum and Semiconductor Systems — Insulating rings, sleeves and spacers: Provides a BN route for application-specific isolation components.
Product Geometry & Configuration
Hot-Pressed BN (AX05 / ZSBN) Properties
| Property / condition | AX05 — parallel / perpendicular to pressing | ZSBN — parallel / perpendicular to pressing |
|---|---|---|
| Crystalline phase | >99.5% hBN | >45% hBN; <45% ZrO₂; <10% borosilicate |
| Binder / bond | Self bonded | Borosilicate glass |
| Density (g/cm³) | 1.9 | 2.9 |
| Open porosity (%) | 19.3 | 1.1 |
| Flexural strength (MPa) — 25°C | 22 / 21 | 144 / 107 |
| Young’s modulus (GPa) — 25°C | 17 / 71 | 71 / 71 |
| Compressive strength (MPa) — 25°C | 25 / — | 219 / 254 |
| Knoop hardness (kg/mm²) | 4 | 100 |
| Thermal conductivity (W/(m·K)) — 25°C | 78 / 130 | 24 / 34 |
| Linear thermal expansion (10⁻⁶/K) — 25–400°C | −2.3 / −0.7 | 4.1 / 3.4 |
| Linear thermal expansion (10⁻⁶/K) — 400–800°C | −2.5 / 1.1 | 5.6 / 4.3 |
| Specific heat (J/(g·K)) — 25°C | 0.81 | 0.64 |
| Typical maximum material temperature, oxidizing (°C) | 850 | 850 |
| Typical maximum material temperature, inert (°C) | 2000 | 1600 |
| Relative permittivity — 1 MHz | 4.0 / 4.0 | 18 / 19 |
| Dielectric loss tangent — 1 MHz | 0.0012 / 0.0003 | 0.045 / 0.067 |
| Dielectric strength (kV/mm) | 79 | 3.5 |
| Volume resistivity (Ω·cm) — 25°C | >10¹³ / >10¹⁴ | >10¹³ / >10¹² |
Product Geometry & Configuration
| Product parameter | Configuration | Basis |
|---|---|---|
| Material system | Boron Nitride Ceramic Family | Material family; grade selected for the application |
| Component forms | Insulating rings and washers; Sleeves and spacers; Custom insulating bodies | Drawing-defined configurations |
| Geometry and dimensions | Custom sizes available | Part drawing and mating interfaces |
| Functional surfaces | Contact, locating, joining or insulating surfaces as applicable | Surface finish and acceptance criteria on the drawing |
Available Forms
Representative forms are shown for selection. Final geometry, material route, interface, finish and acceptance criteria require drawing review.

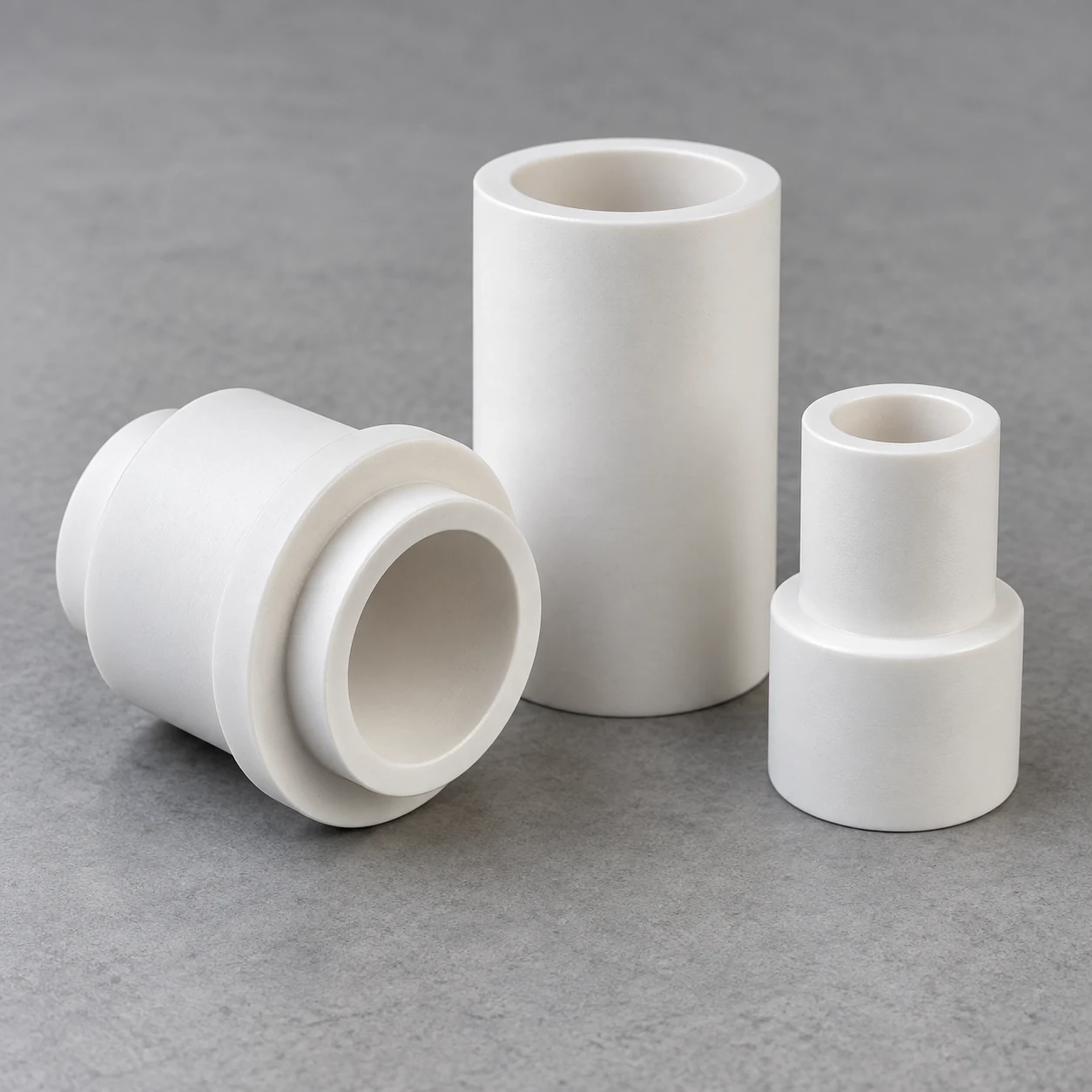

- Insulating rings and washers
- Sleeves and spacers
- Custom insulating bodies
Packaging & Shipping
Packing and shipment arrangements are selected for the confirmed component geometry and surface requirements.
| Item | Details |
|---|---|
| Product protection | Selected for geometry, surface condition and quantity |
| Other commercial terms and lead time | Confirmed in quotation |
| Source boundary | No competitor packaging or delivery promise is inherited. |
| Payment terms | T/T / Western Union / PayPal; 50% advance payment, 50% balance before shipment |
| Shipping methods | Sea freight / Air freight / Door-to-door courier |
