Boron Nitride Nozzles
Boron Nitride Ceramics Component
SKU: FWM/BN-NOZ-001
- Material
- Boron Nitride Ceramic Family
- Size
- Custom sizes available
- MOQ
- Pending Verification
- Applications
- Metal Powder Production

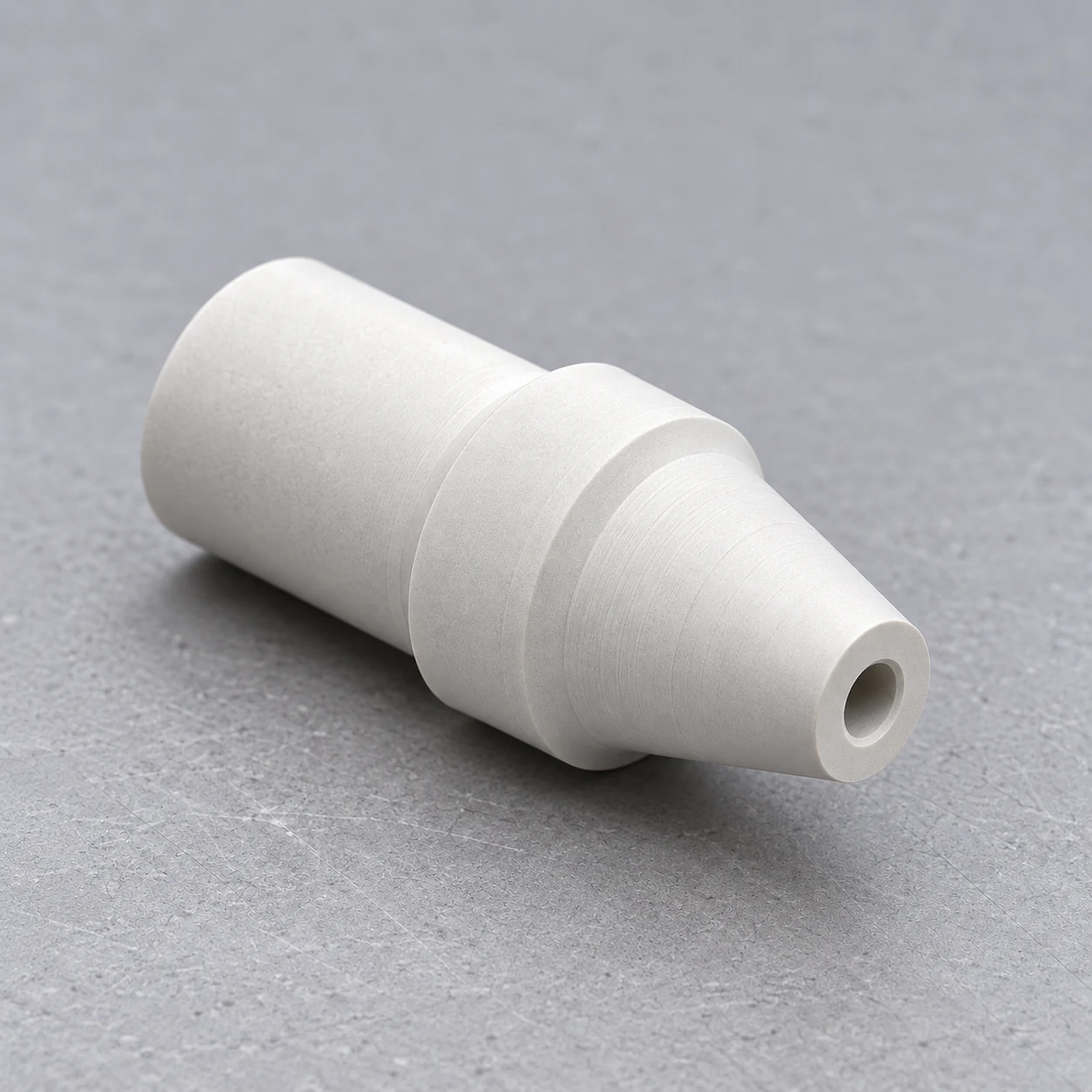

Machined boron nitride nozzles for molten-material flow, atomization and high-temperature process systems.
Final geometry, material route, interface, finish and acceptance criteria require drawing review.
Browse Products
Alumina Ceramic Products
Zirconia Ceramic Products
Silicon Carbide Products
Silicon Nitride Products
Aluminum Nitride Products
Product Description
Review product function, representative forms and application context.
Boron nitride nozzles are application-specific flow components considered where thermal cycling and low wetting by a molten material influence operation.
Orifice, bore profile, wall geometry, material formulation, atmosphere and process medium must be confirmed from the equipment design.
Manufacturing process (source record): Reference route: BN grade and atmosphere review → hot-pressed BN/composite blank selection and orientation review → CNC machining → bore or interface finishing → cleaning → final inspection. Pyrolytic BN uses a separate CVD route and is included only when explicitly selected. Supplier grade and exact route remain Pending Verification.
Quality control (source record): Drawing-based dimensional inspection; geometry-specific bore, orifice, profile, flatness or concentricity review; visual inspection for edge damage and machining defects; cleanliness inspection; and grade/orientation traceability when required. Numerical acceptance limits remain Pending Verification.
Data status: the source record is not supplier-verified. Numerical values are typical engineering references, not guaranteed product specifications; final values require grade, drawing and test-basis confirmation.
Product Features
- Low-Wetting Material Option
- Thermal-Shock Resistance
- Machinable Geometry
- Controlled Flow Path
Typical Applications
- Metal Powder Production — Gas-atomization and melt-flow nozzles: Supports a controlled ceramic flow path for application review.
- Molten-Material Processing — Casting and transfer nozzles: Provides a BN route where wetting and thermal cycling matter.
Technical Data
| Selection Item | Canonical Value | Publication Class |
|---|---|---|
| Material system | Boron Nitride Ceramic Family | Canonical identity |
| Material formula | BN | Canonical identity |
| Geometry and size | Custom by drawing | Application input |
Typical reference values for material selection only. Final specifications are confirmed against drawing, grade and operating conditions.

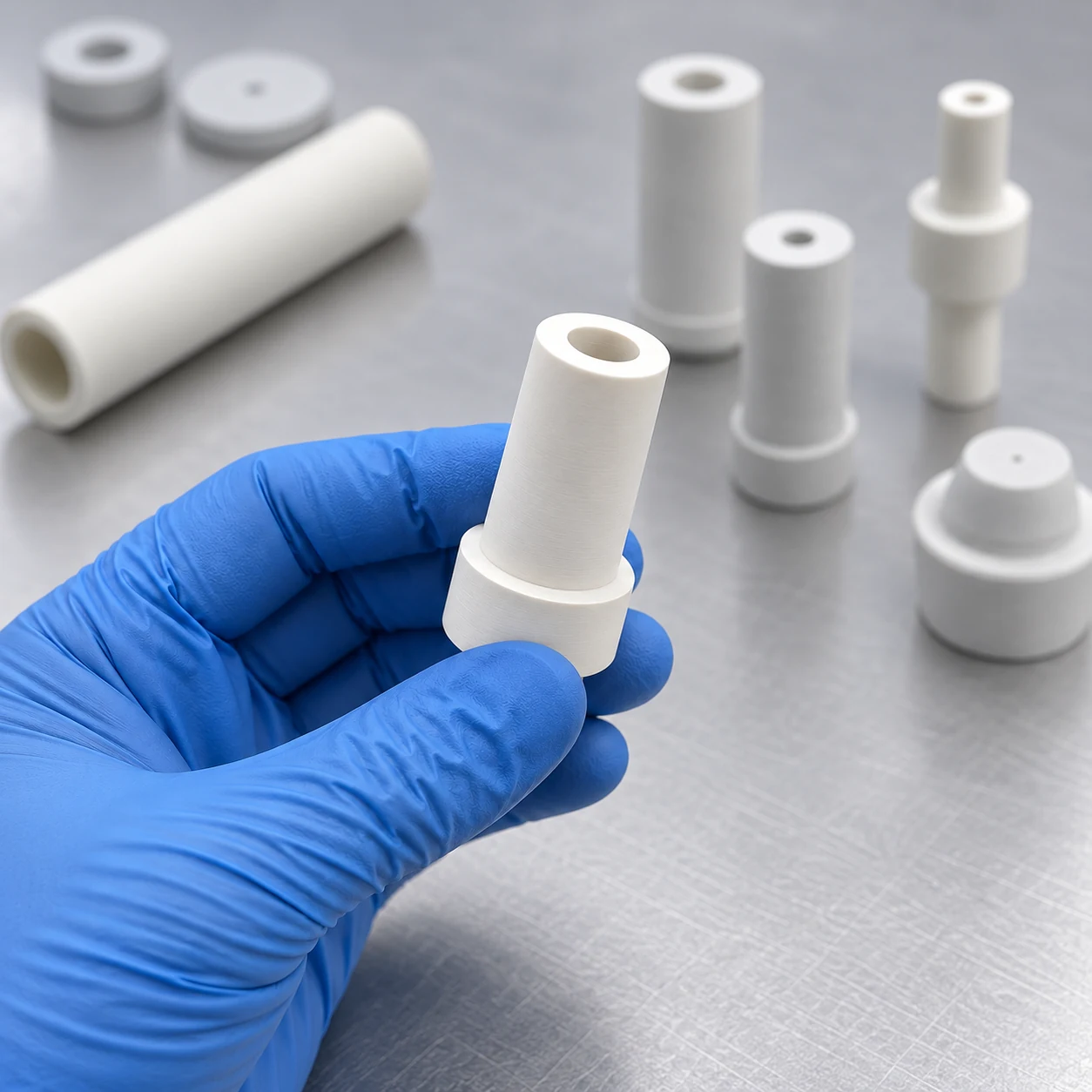

Available Forms
Representative forms are shown for selection. Final geometry, material route, interface, finish and acceptance criteria require drawing review.
- Straight-bore nozzles

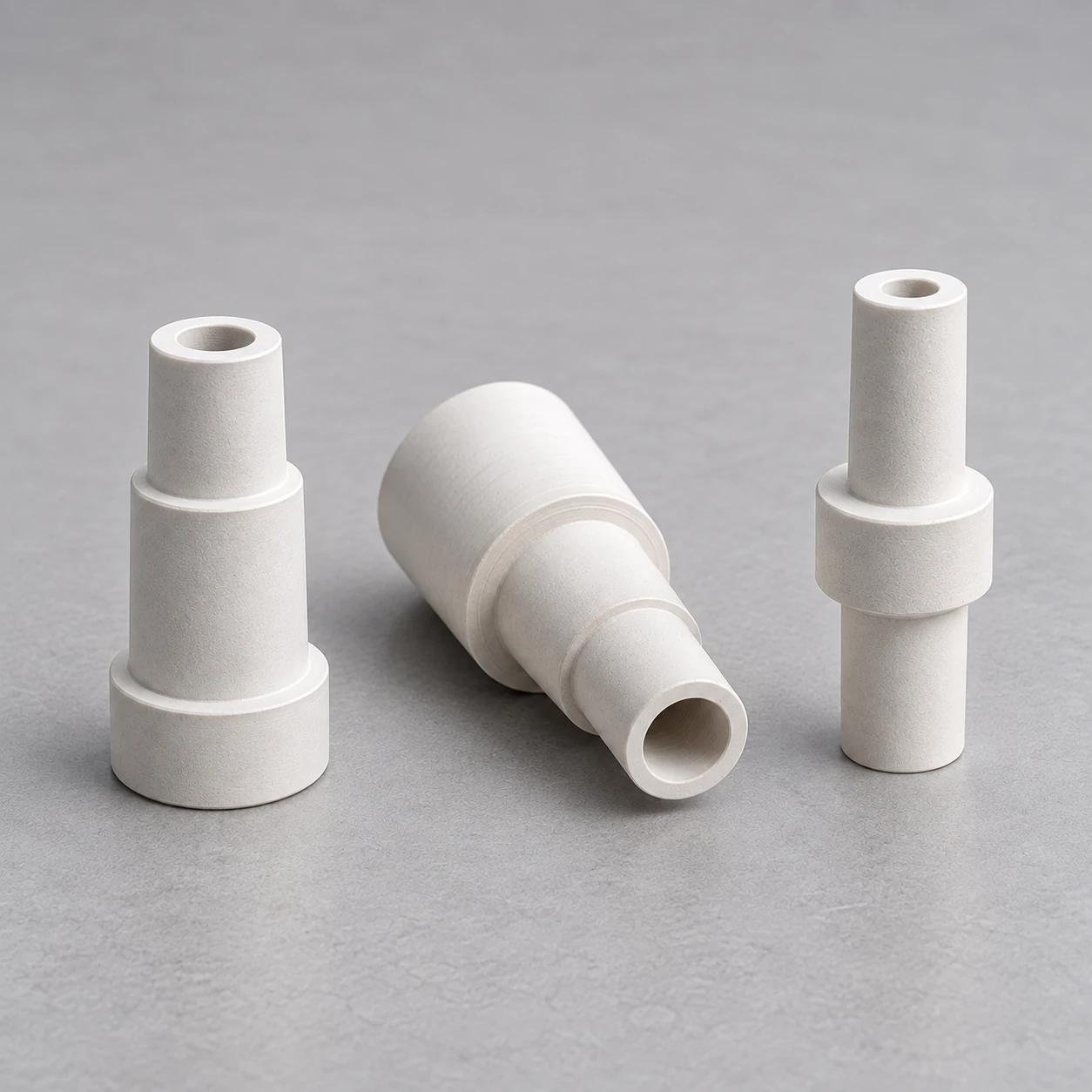

- Stepped nozzle bodies
- Custom orifice and flange geometry
Packaging & Shipping
Packing and shipment arrangements are selected for the confirmed component geometry and surface requirements.
| Item | Details |
|---|---|
| Product protection | Selected for geometry, surface condition and quantity |
| Commercial terms, shipment method and lead time | Confirmed in quotation |
| Source boundary | No competitor packaging or delivery promise is inherited. |
