Boron Nitride Custom Components
Boron Nitride Ceramics Component
SKU: FWM/BN-CUSTOM-001
- Material
- Boron Nitride Ceramic Family
- Size
- Custom sizes available
- MOQ
- Pending Verification
- Applications
- High-Temperature Manufacturing
Custom boron nitride components selected by atmosphere, molten-material contact, insulation and drawing requirements.
Browse Products
Alumina Ceramic Products
Zirconia Ceramic Products
Silicon Carbide Products
Silicon Nitride Products
Aluminum Nitride Products
Product Description
Custom boron nitride components selected by atmosphere, molten-material contact, insulation and drawing requirements.
Custom boron nitride components are non-standard insulating, supporting and process-contact parts for thermal equipment and compatible molten-material systems.
Machinability allows several locating, insulating or flow-contact features to be combined in one component. BN formulation and service atmosphere determine the appropriate thermal and chemical duty.
Product Features
- Application-Specific BN Route
- Drawing-Based Customization
- Machinability
- Formulation options for the process environment
Typical Applications
- High-Temperature Manufacturing — Custom process and insulation components: Supports a tailored BN route after environment review.
- Molten-Material Processing — Custom contact and transfer components: Provides drawing-based geometry for low-wetting applications.
Product Geometry & Configuration
Hot-Pressed BN (AX05 / ZSBN) Properties
| Property / condition | AX05 — parallel / perpendicular to pressing | ZSBN — parallel / perpendicular to pressing |
|---|---|---|
| Crystalline phase | >99.5% hBN | >45% hBN; <45% ZrO₂; <10% borosilicate |
| Binder / bond | Self bonded | Borosilicate glass |
| Density (g/cm³) | 1.9 | 2.9 |
| Open porosity (%) | 19.3 | 1.1 |
| Flexural strength (MPa) — 25°C | 22 / 21 | 144 / 107 |
| Young’s modulus (GPa) — 25°C | 17 / 71 | 71 / 71 |
| Compressive strength (MPa) — 25°C | 25 / — | 219 / 254 |
| Knoop hardness (kg/mm²) | 4 | 100 |
| Thermal conductivity (W/(m·K)) — 25°C | 78 / 130 | 24 / 34 |
| Linear thermal expansion (10⁻⁶/K) — 25–400°C | −2.3 / −0.7 | 4.1 / 3.4 |
| Linear thermal expansion (10⁻⁶/K) — 400–800°C | −2.5 / 1.1 | 5.6 / 4.3 |
| Specific heat (J/(g·K)) — 25°C | 0.81 | 0.64 |
| Typical maximum material temperature, oxidizing (°C) | 850 | 850 |
| Typical maximum material temperature, inert (°C) | 2000 | 1600 |
| Relative permittivity — 1 MHz | 4.0 / 4.0 | 18 / 19 |
| Dielectric loss tangent — 1 MHz | 0.0012 / 0.0003 | 0.045 / 0.067 |
| Dielectric strength (kV/mm) | 79 | 3.5 |
| Volume resistivity (Ω·cm) — 25°C | >10¹³ / >10¹⁴ | >10¹³ / >10¹² |
Product Geometry & Configuration
| Product parameter | Configuration | Basis |
|---|---|---|
| Material system | Boron Nitride Ceramic Family | Material family; grade selected for the application |

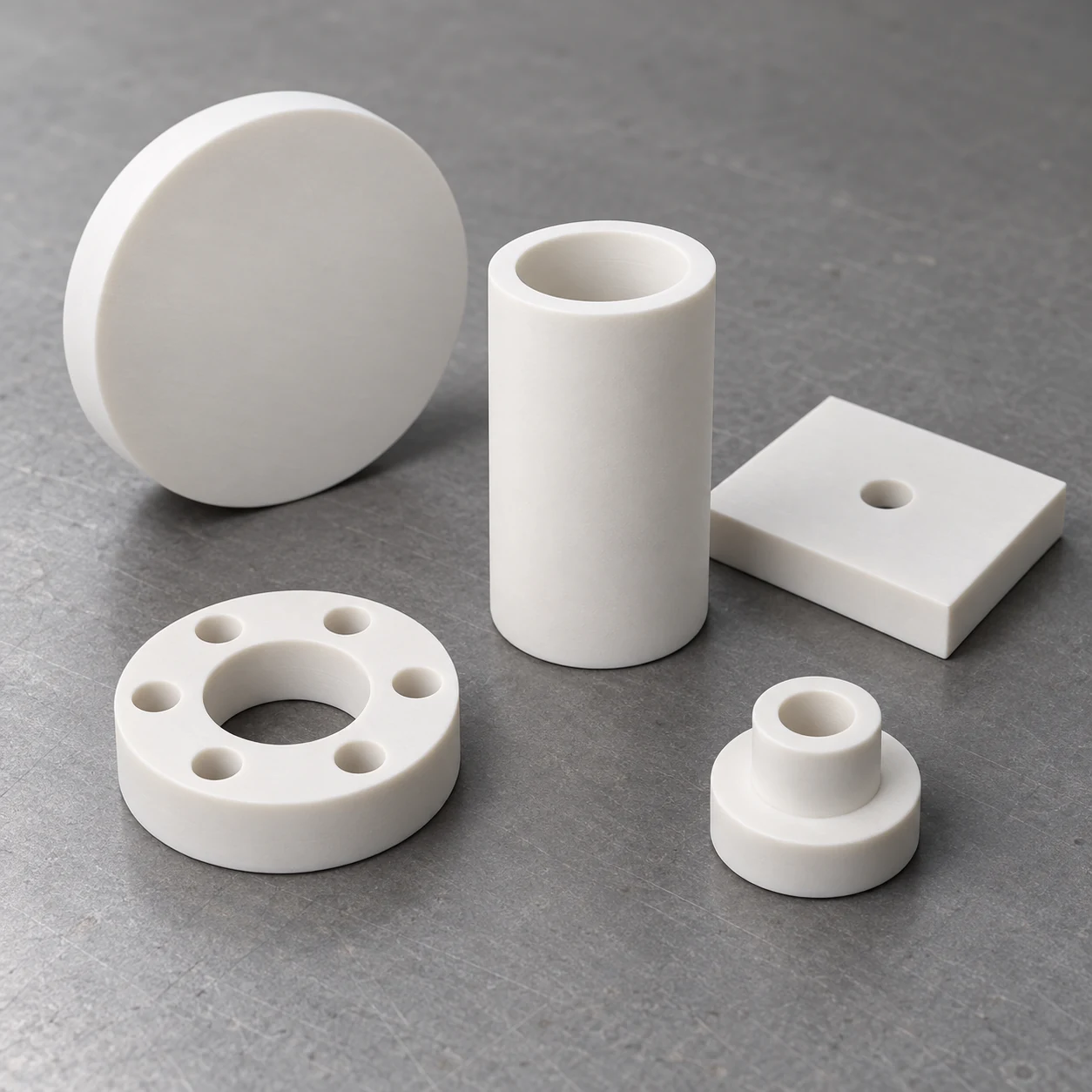

| Component forms | Custom rings and sleeves; Custom nozzles and holders; Complex drawing-based components | Drawing-defined configurations |
| Geometry and dimensions | Custom sizes available | Part drawing and mating interfaces |
| Functional surfaces | Contact, locating, joining or insulating surfaces as applicable | Surface finish and acceptance criteria on the drawing |

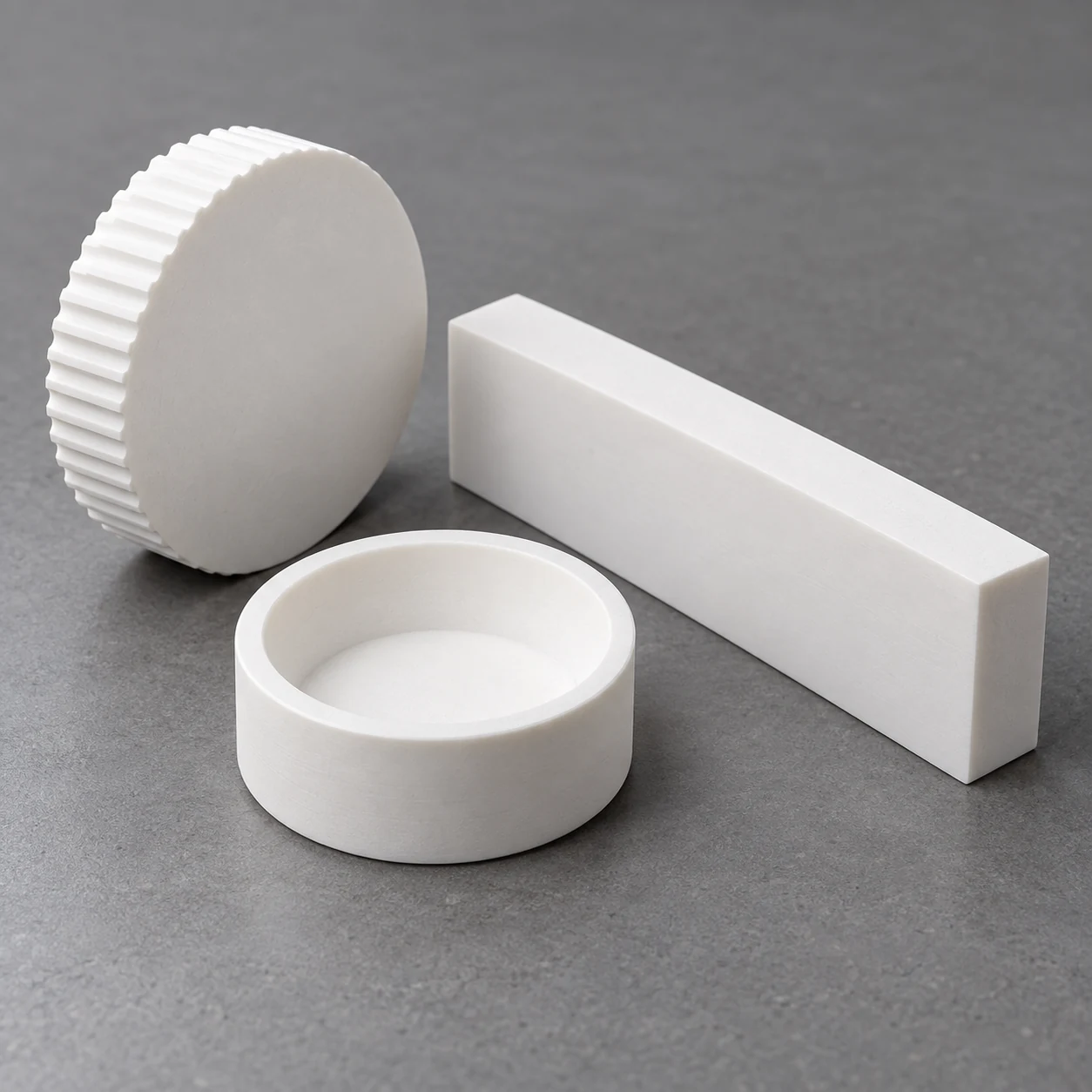

Available Forms
Representative forms are shown for selection. Final geometry, material route, interface, finish and acceptance criteria require drawing review.

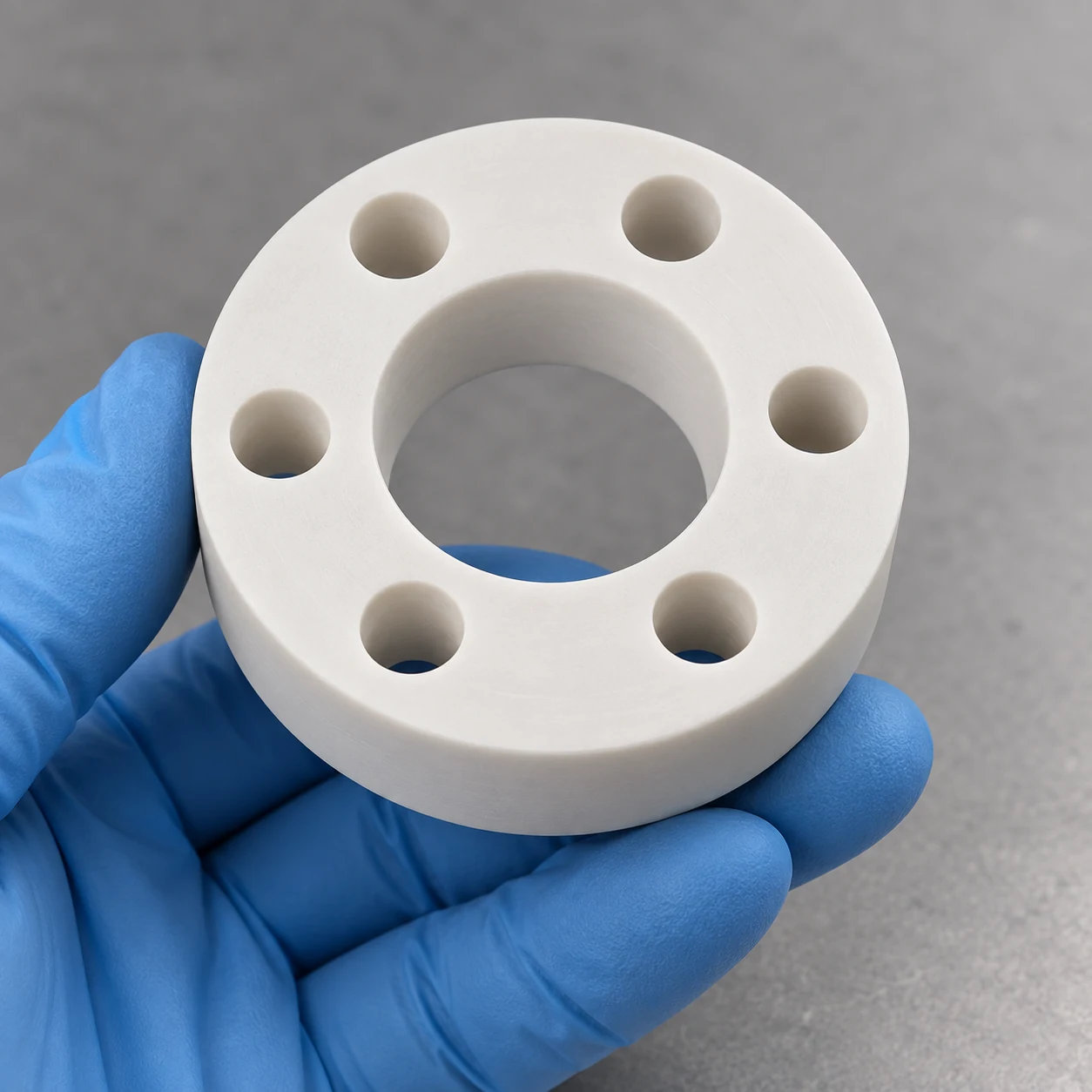

- Custom rings and sleeves
- Custom nozzles and holders
- Complex drawing-based components
Packaging & Shipping
Packing and shipment arrangements are selected for the confirmed component geometry and surface requirements.
| Item | Details |
|---|---|
| Product protection | Selected for geometry, surface condition and quantity |
| Other commercial terms and lead time | Confirmed in quotation |
| Source boundary | No competitor packaging or delivery promise is inherited. |
| Payment terms | T/T / Western Union / PayPal; 50% advance payment, 50% balance before shipment |
| Shipping methods | Sea freight / Air freight / Door-to-door courier |
