Silicon Nitride Structural Components
Silicon Nitride Ceramic Component
SKU: FWM/SN-STRUCT-001
Product Configuration
Conceptual geometry guide; final configuration follows the approved drawing.

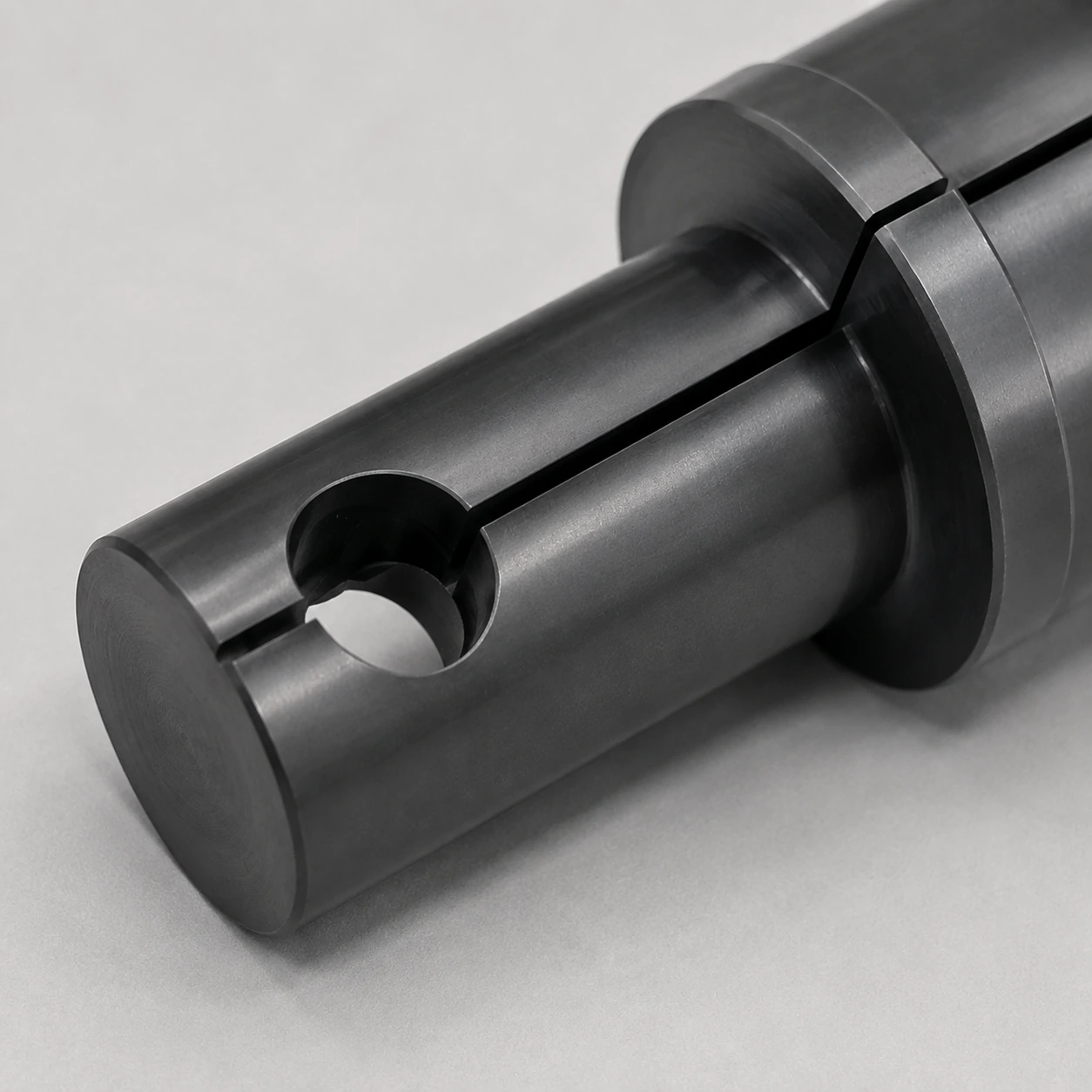

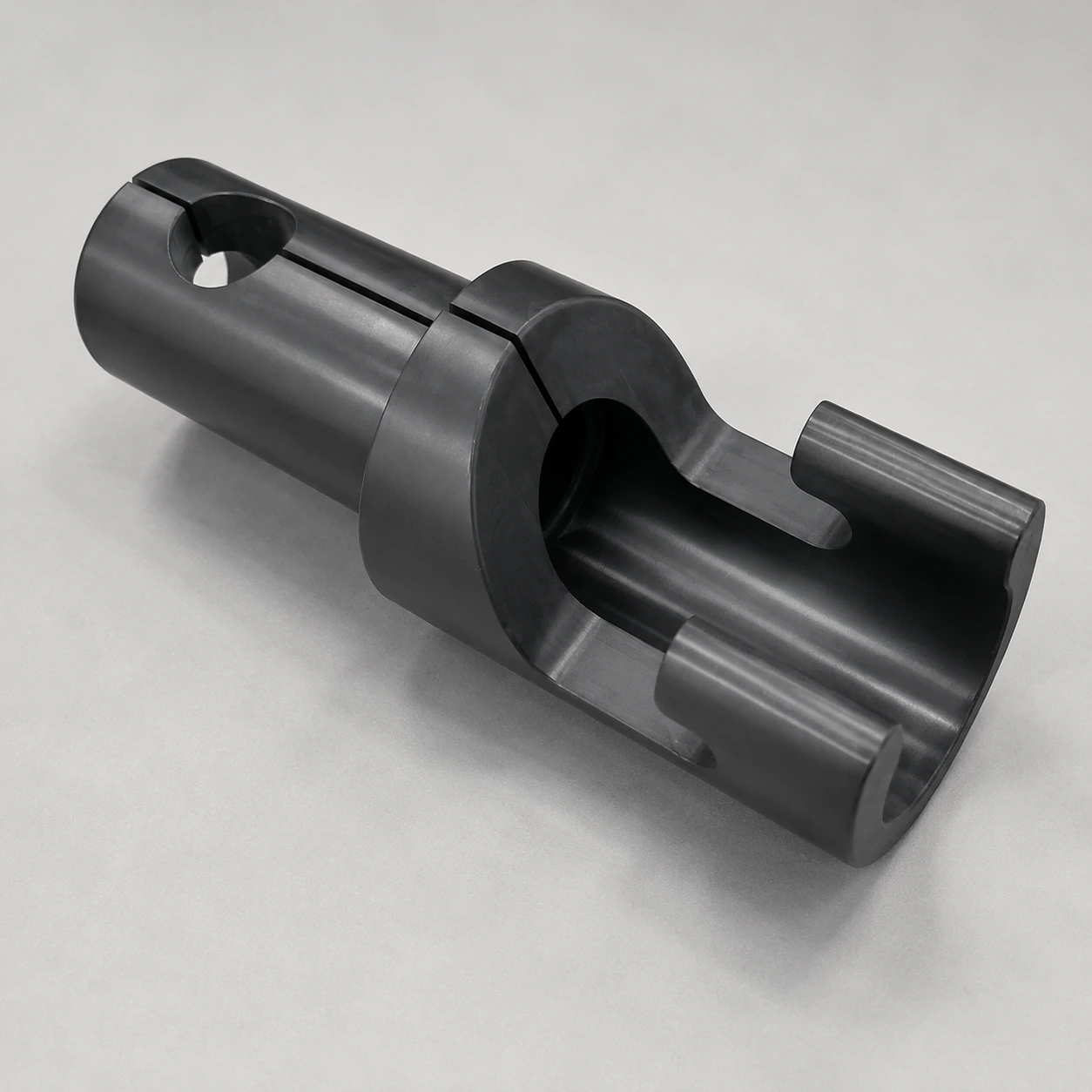

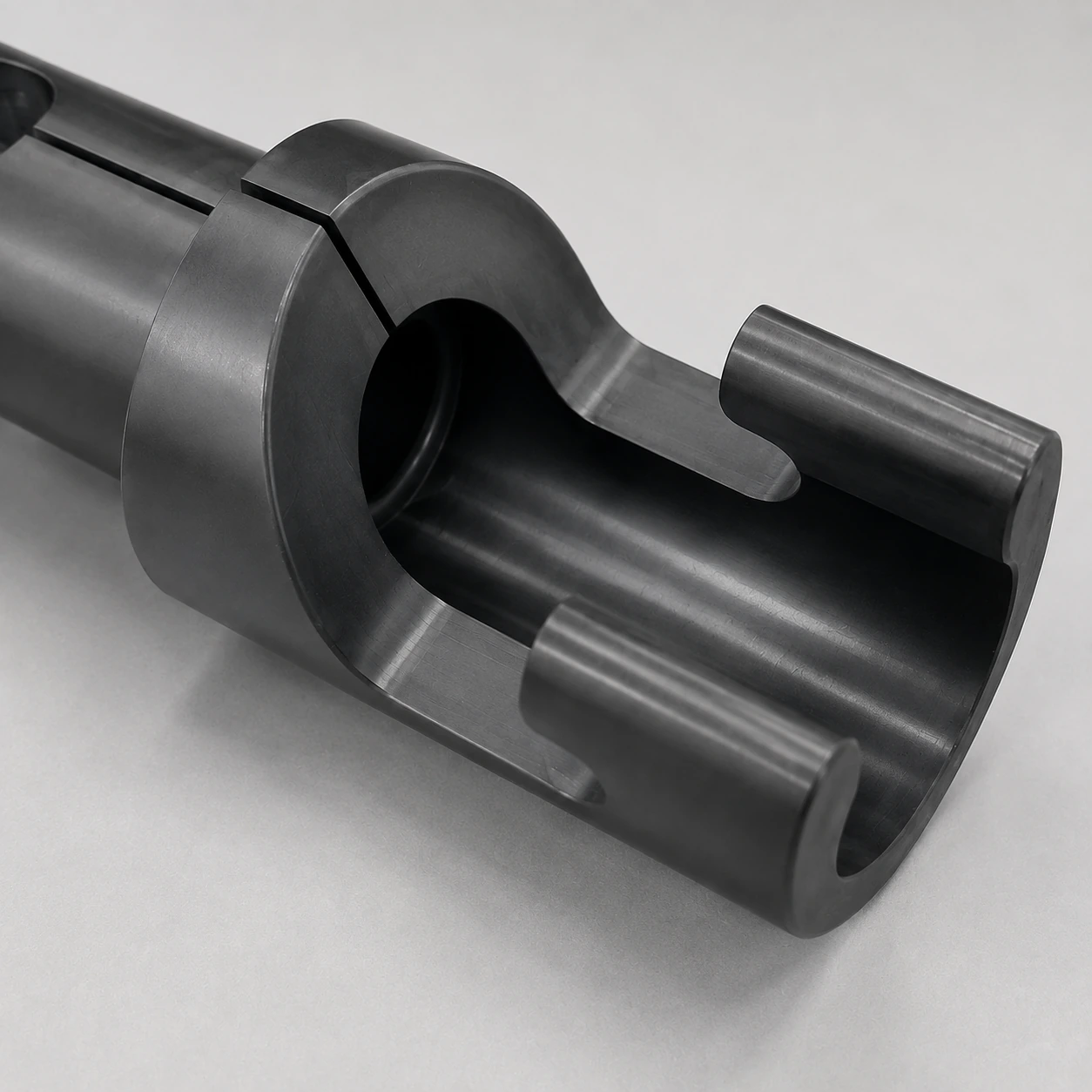

Structural Part
Representative form for drawing review.
Custom Geometry
Alternative geometry for application review.
- Material
- Silicon Nitride (Si₃N₄) – High-density / Gas Pressure Sintered
- Size
- Fully custom according to drawings
- MOQ
- 5 pieces per type
- Applications
- Electronic Packaging
Silicon Nitride Structural Components are high-performance precision-engineered ceramic parts designed for demanding high-temperature, high-wear and high-stress applications.
Send drawing, dimensions, tolerances, surface requirements and quantity for material route and manufacturing feasibility review before quotation.
Browse Products
Alumina Ceramic Products
Zirconia Ceramic Products
Silicon Carbide Products
Silicon Nitride Products
Aluminum Nitride Products
Product Description
Review representative product forms and application context below. Final geometry and acceptance criteria are confirmed from the drawing and operating conditions.
Silicon Nitride Structural Components are high-performance precision-engineered ceramic parts designed for demanding high-temperature, high-wear and high-stress applications.
Manufactured from high-purity silicon nitride with sintering additives, these components deliver exceptional mechanical strength, outstanding thermal stability, superior wear resistance and excellent thermal shock resistance. They provide reliable solutions where traditional metals or other ceramics fail, and are widely used in electronic packaging, industrial systems, high-power microelectronics and precision machinery.
Manufacturing process (source record): High-purity Si₃N₄ powder + sintering additives → forming → high-temperature / gas pressure sintering → precision machining and finishing → final inspection.
Quality control (source record): Dimensional inspection, surface quality check, material property verification and batch traceability.
Data status: the source record is not supplier-verified. Numerical values are typical engineering references, not guaranteed product specifications; final values require grade, drawing and test-basis confirmation.
Product Features
- Exceptional mechanical strength and resistance to wear, abrasion and deformation under heavy loads
- Outstanding thermal stability and high-temperature strength retention
- Superior wear resistance and long-term dimensional stability
- Excellent thermal shock resistance
- Good corrosion resistance and electrical insulation properties
- Precision machinable to tight tolerances
Typical Applications
- Electronic packaging and high-power microelectronic components
- Industrial high-temperature and high-wear systems
- Precision structural parts in machinery and equipment
- Aerospace, automotive and semiconductor related structural components
- Custom fixtures, supports and load-bearing parts
Technical Data
| Property | Unit | Typical Value |
|---|---|---|
| Density | g/cm³ | 3.15 – 3.26 |
| Apparent porosity | % | 0 – 0.2 |
| Young’s Modulus | GPa | 300 – 320 |
| Flexural / Bending Strength | MPa | ≥ 700 – 900 |
| Fracture Toughness | MPa·m¹/² | 6 – 9 |
| Vickers Hardness / HRA | GPa / HRA | 15 – 16 GPa / 92 – 94 |
| Thermal Expansion Coefficient | ×10⁻⁶/°C | 2.95 – 3.3 |
| Thermal Conductivity | W/(m·K) | 20 – 27 |
| Max. Operating Temperature (air) | °C | 1200 – 1400 |
| Dielectric Strength | kV/mm | > 15 |
| Electrical Resistivity | Ω·cm | > 10¹⁴ |
Typical reference values for material selection only. Final specifications are confirmed against drawing, grade and operating conditions. Values are typical reference data and may vary with grade, geometry and test method. Final specifications confirmed against drawing and operating conditions.
Available Forms
Representative forms are shown for selection. Send drawing, dimensions, tolerances, surface requirements and quantity for material route and manufacturing feasibility review before quotation.
- Complex geometries, stepped parts, plates, blocks, rings, sleeves and other structural shapes
- Drawing-based custom designs
Packaging & Shipping
Packing and shipment arrangements are selected for the confirmed component geometry and order requirements.
| Item | Details |
|---|---|
| Packaging & shipping | Individually protected, cushioned and packed in export cartons or wooden cases according to size and quantity. Terms confirmed in the quotation. |
