Custom Ceramic Pump Components
Ceramic Metering Pump Components Component
SKU: FWM/CMP-CUSTOM-001
- Material
- Ceramic Metering Pump Components
- Size
- Custom sizes available
- MOQ
- Pending Verification
- Applications
- Industrial Dosing
Drawing-based ceramic cylinders, heads, liners and precision interfaces for metering and fluid-control equipment.
Browse Products
Alumina Ceramic Products
Zirconia Ceramic Products
Silicon Carbide Products
View categorySilicon Carbide Mechanical Seal RingsSilicon Carbide Ceramic ArmsSilicon Carbide Cantilever PaddlesSilicon Carbide Ceramic TubesSilicon Carbide Ceramic PlatesSilicon Carbide NozzlesSilicon Carbide CruciblesSilicon Carbide Furnace TubesSilicon Carbide Custom ComponentsSilicon Carbide SleevesSilicon Carbide TraysSilicon Carbide Vacuum ChucksSilicon Carbide Wear Linings
Silicon Nitride Products
View categorySilicon Nitride Degassing RotorsSilicon Nitride Heater Protection TubesSilicon Nitride PlatesSilicon Nitride Positioning PinsSilicon Nitride Riser Tubes / StalksSilicon Nitride Bearing BallsSilicon Nitride BearingsSilicon Nitride SleevesSilicon Nitride Structural ComponentsSilicon Nitride Thermocouple Protection Tubes
Aluminum Nitride Products
Product Description
Drawing-based ceramic cylinders, heads, liners and precision interfaces for metering and fluid-control equipment.

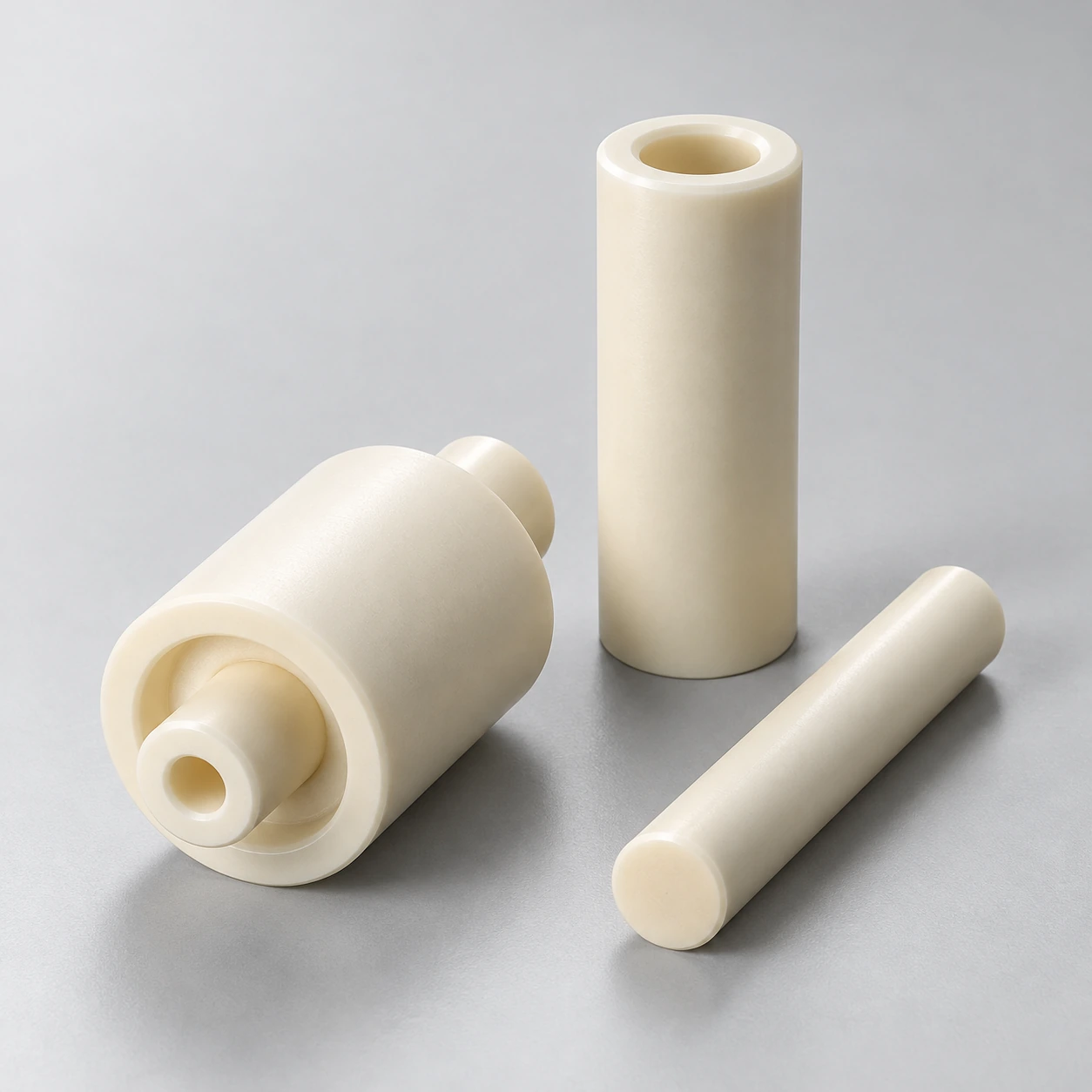

Custom ceramic pump components include cylinders, pump-head bodies, spacers, guides and fluid-contact interfaces for metering and dispensing equipment. These are individual components rather than complete pumps.
Ceramic working surfaces provide wear and chemical-resistance options at the fluid path, sliding interface or component support.
Product Features
- Drawing-Based Customization
- Ceramic fluid-contact surfaces
- Precision Interfaces
- Custom pump component geometry
Typical Applications
- Industrial Dosing — Custom pump heads and metering assemblies: Supports non-standard ceramic component integration.
- Battery and Electronics Production — Adhesive, slurry and process-fluid dispensing equipment: Provides application-specific ceramic components after medium review.
Product Geometry & Configuration
Alumina Typical Material Properties
| Property | 95% Al₂O₃ | 99% Al₂O₃ | 99.5% Al₂O₃ | 99.8% Al₂O₃ | Condition / basis |
|---|---|---|---|---|---|
| Density (g/cm³) | 3.65 | 3.85 | 3.90 | 3.92 | — |
| Fracture toughness (MPa·m½) | 3–4 | 3–4 | 4 | 4 | — |
| Young’s modulus (GPa) | 320 | 340 | 370 | 390 | — |
| Flexural strength (MPa) | 300 | 330 | 375 | 390 | 25°C |
| Compressive strength (MPa) | 2200 | 2350 | 2450 | 2500 | 25°C |
| Thermal conductivity (W/(m·K)) | 18–22 | 27 | 29 | 32 | 25°C |
| Linear thermal expansion coefficient (10⁻⁶/K) | 8 | 8 | 8 | 8 | 25–1000°C |
| Dielectric strength (kV/mm) | 16 | 20 | 22 | 22 | — |
| Volume resistivity (Ω·cm) | 10¹⁴ | 10¹⁴ | 10¹⁴ | 10¹⁴ | 25°C |
| Relative permittivity | 9 | 9.7 | 9.7 | 9.8 | 1MHz, 25°C |
| Dielectric loss | 0.0004 | 0.0002 | 0.0002 | 0.0001 | 1MHz, 25°C |
| Vickers hardness (HV) | >1300 | 1700 | 1750 | 1800 | — |
| Material thermal-shock temperature difference, ΔT (°C) | 220 | 180–200 | 180–200 | 180–200 | — |
| Typical maximum material temperature (°C) | 1500 | 1650 | 1700 | 1700 | — |
Zirconia (ZO201N) Typical Properties
| Property | ZO201N typical value | Condition / method |
|---|---|---|
| Density | 6.0 g/cm³ | JIS R 1634 |
| Water absorption | 0 % | JIS C 2141 |
| Vickers hardness | 12.3 GPa | HV9.807N (9.807 N load); JIS R 1610 |
| Three-point flexural strength | 1000 MPa | Three-point bending; JIS R 1601 |
| Young’s modulus | 200 GPa | JIS R 1602 |
| Poisson’s ratio | 0.31 | JIS R 1602 |
| Fracture toughness (SEPB) | 6 MPa·m½ | JIS R 1607 |
| Linear thermal expansion, 40–400°C | 10.5 × 10⁻⁶/K | 40–400°C; JIS R 1618 |
| Linear thermal expansion, 40–800°C | 11.0 × 10⁻⁶/K | 40–800°C; JIS R 1618 |
| Thermal conductivity | 3 W/(m·K) | 20°C; JIS R 1611 |
| Specific heat capacity | 0.46 J/(g·K) | JIS R 1611 |
| Material thermal-shock temperature difference | 300°C | Water immersion; relative method; JIS R 1648 |
| Dielectric strength | 11 kV/mm | JIS C 2141 |
| Volume resistivity, 20°C | 10¹³ Ω·cm | 20°C; JIS C 2141 |
| Volume resistivity, 300°C | 10⁶ Ω·cm | 300°C; JIS C 2141 |
| Volume resistivity, 500°C | 10³ Ω·cm | 500°C; JIS C 2141 |
| Relative permittivity | 33.0 | 1 MHz; JIS C 2141 |
| Dielectric loss tangent | 0.0016 | 1 MHz; JIS C 2141 |
Product Geometry & Configuration
| Product parameter | Configuration | Basis |
|---|---|---|
| Material system | Ceramic Metering Pump Components | Material family; grade selected for the application |
| Component forms | Ceramic cylinders and pump-head bodies; Custom sleeves, liners and guides; Drawing-based fluid-control components | Drawing-defined configurations |
| Geometry and dimensions | Custom sizes available | Part drawing and mating interfaces |
| Functional surfaces | Contact, locating, joining or insulating surfaces as applicable | Surface finish and acceptance criteria on the drawing |
Available Forms
Representative forms are shown for selection. Final geometry, material route, interface, finish and acceptance criteria require drawing review.

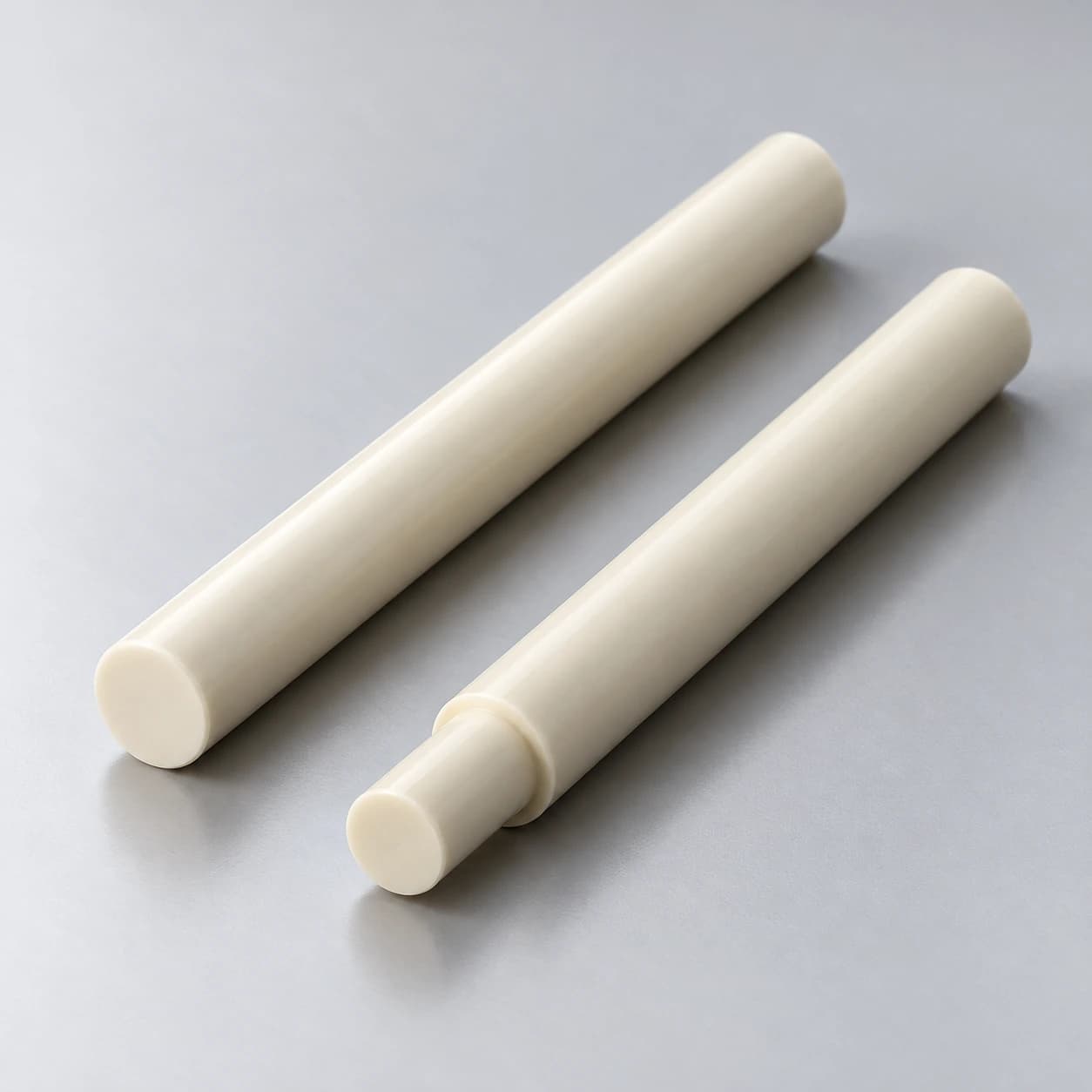

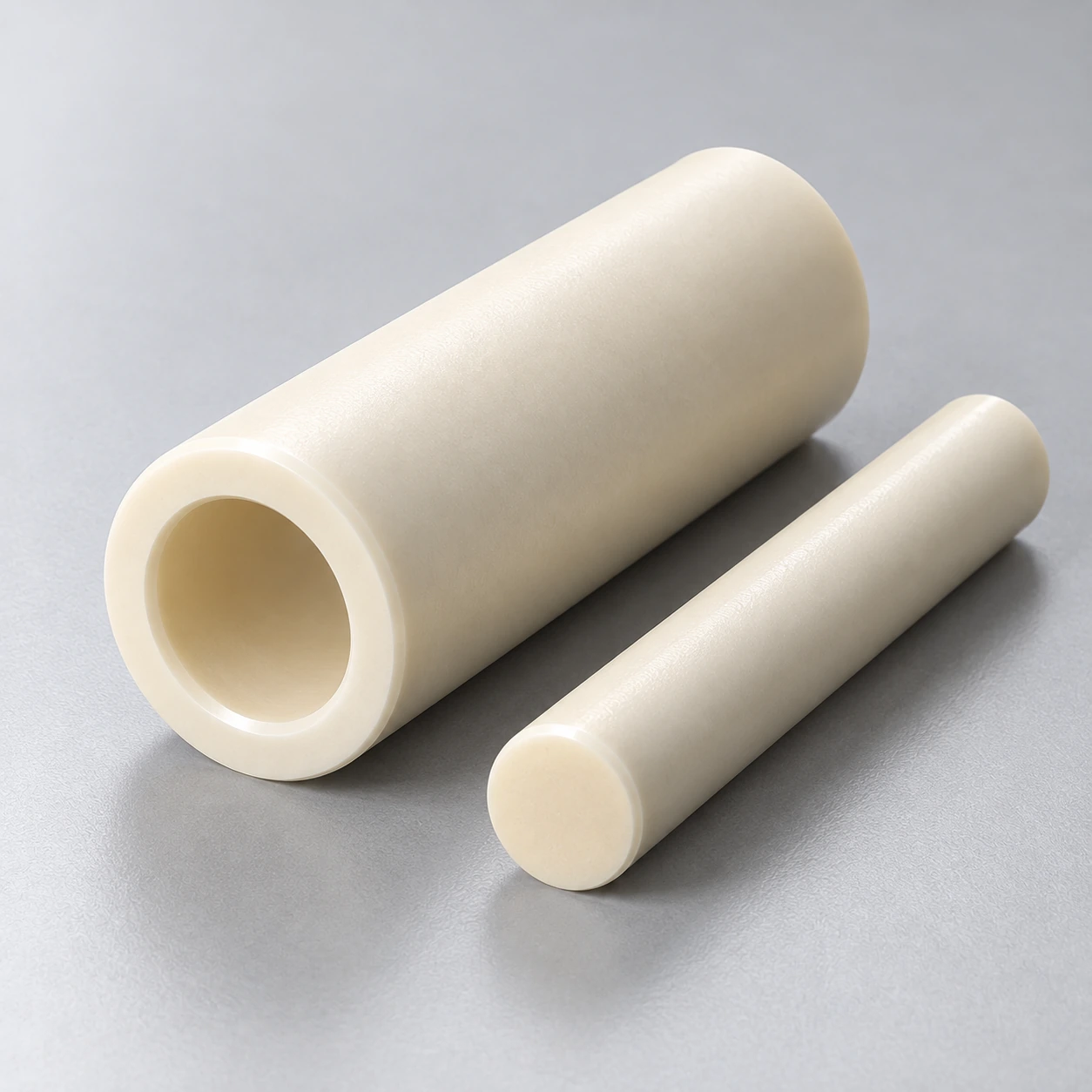

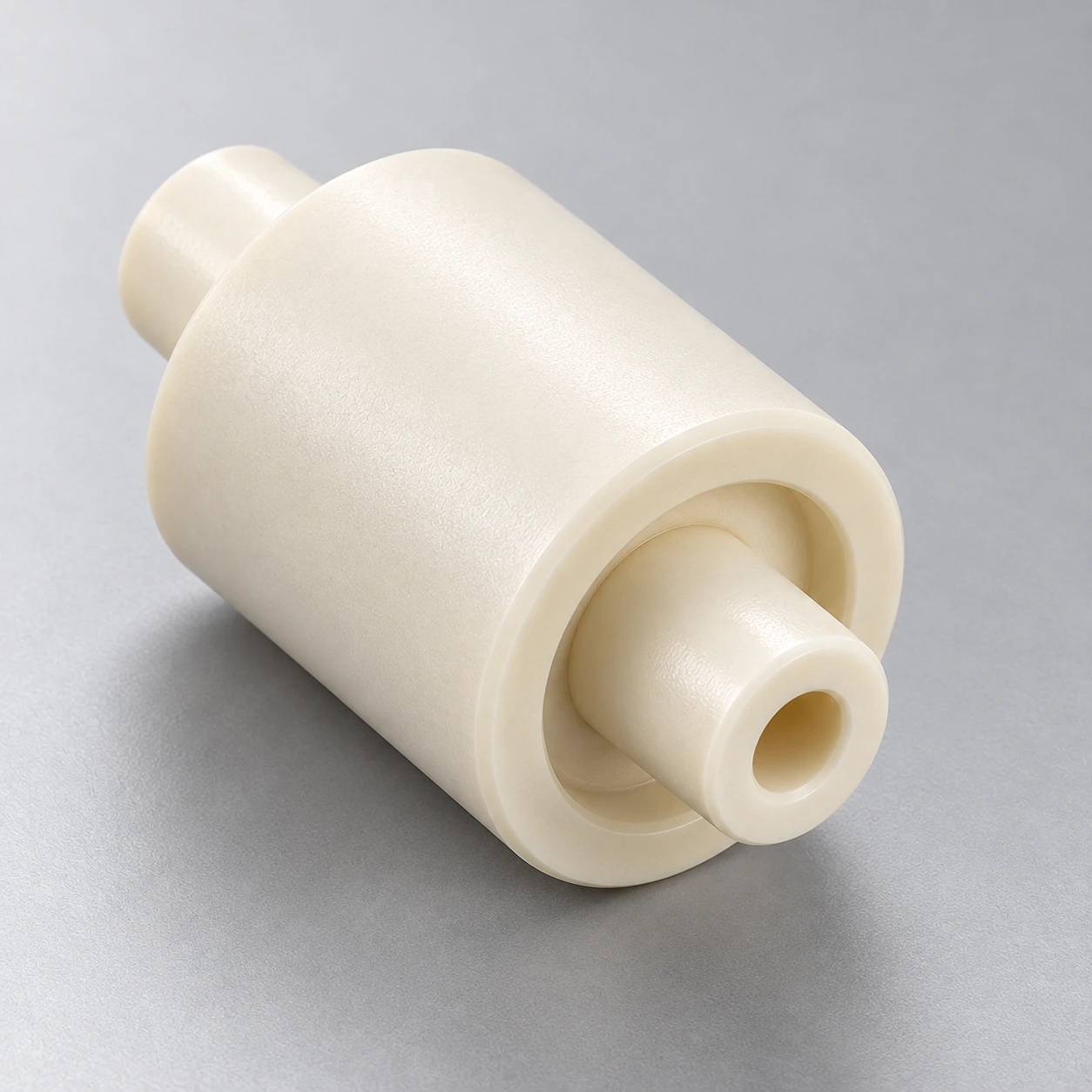

- Ceramic cylinders and pump-head bodies

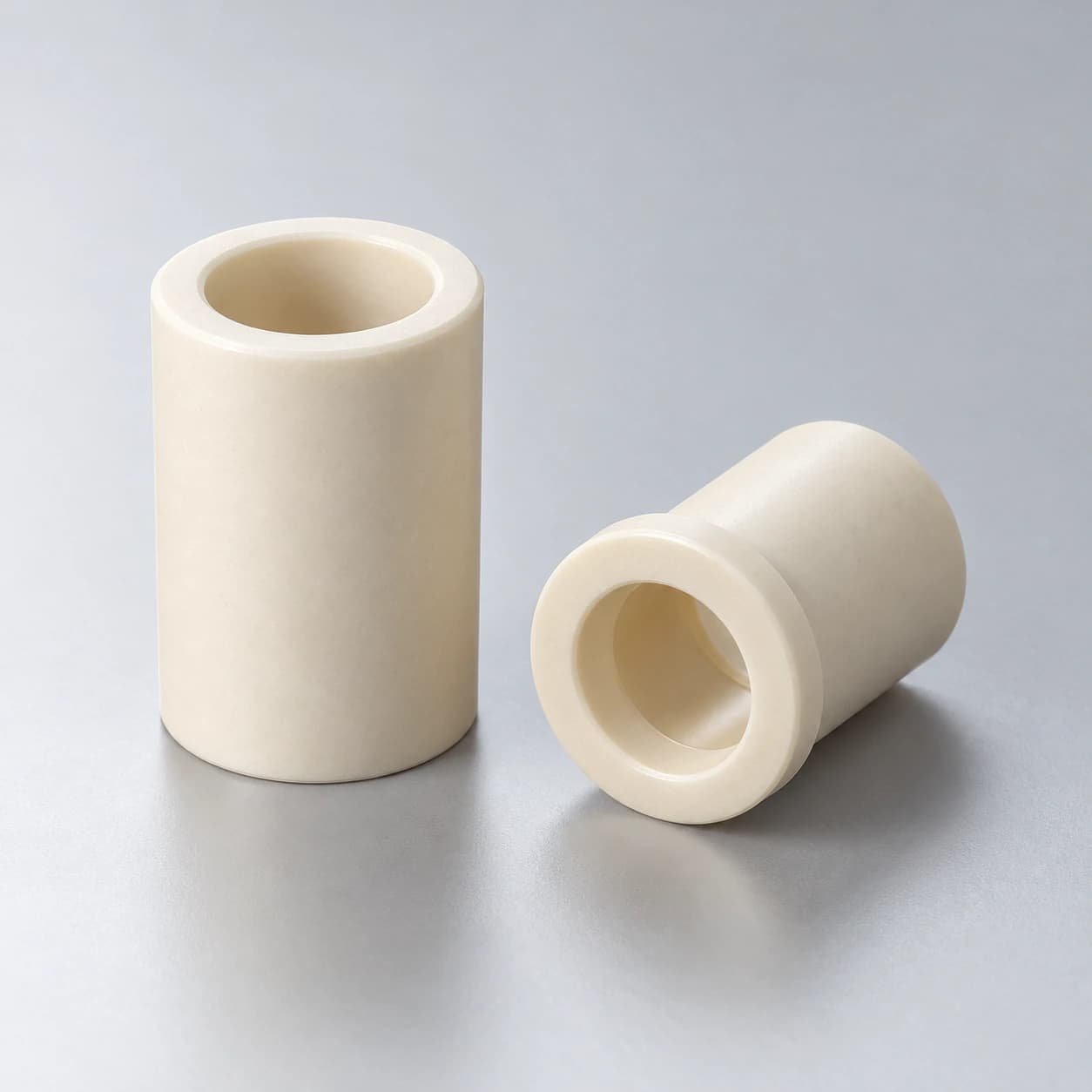

- Custom sleeves, liners and guides
- Drawing-based fluid-control components
Packaging & Shipping
Packing and shipment arrangements are selected for the confirmed component geometry and surface requirements.
| Item | Details |
|---|---|
| Product protection | Selected for geometry, surface condition and quantity |
| Other commercial terms and lead time | Confirmed in quotation |
| Source boundary | No competitor packaging or delivery promise is inherited. |
| Payment terms | T/T / Western Union / PayPal; 50% advance payment, 50% balance before shipment |
| Shipping methods | Sea freight / Air freight / Door-to-door courier |
