Alumina Ceramic Shafts
Alumina Ceramics Component
SKU: FWM/ALU-SHAFT-001
- Material
- Alumina
- Size
- Custom by drawing
- MOQ
- By quotation
- Applications
- Industrial Machinery
Solid alumina ceramic shafts and rods for guiding, rotating and electrically insulating industrial assemblies.
Browse Products
Alumina Ceramic Products
Zirconia Ceramic Products
Silicon Carbide Products
Silicon Nitride Products
Aluminum Nitride Products
Product Description
Solid alumina ceramic shafts and rods for guiding, rotating and electrically insulating industrial assemblies.

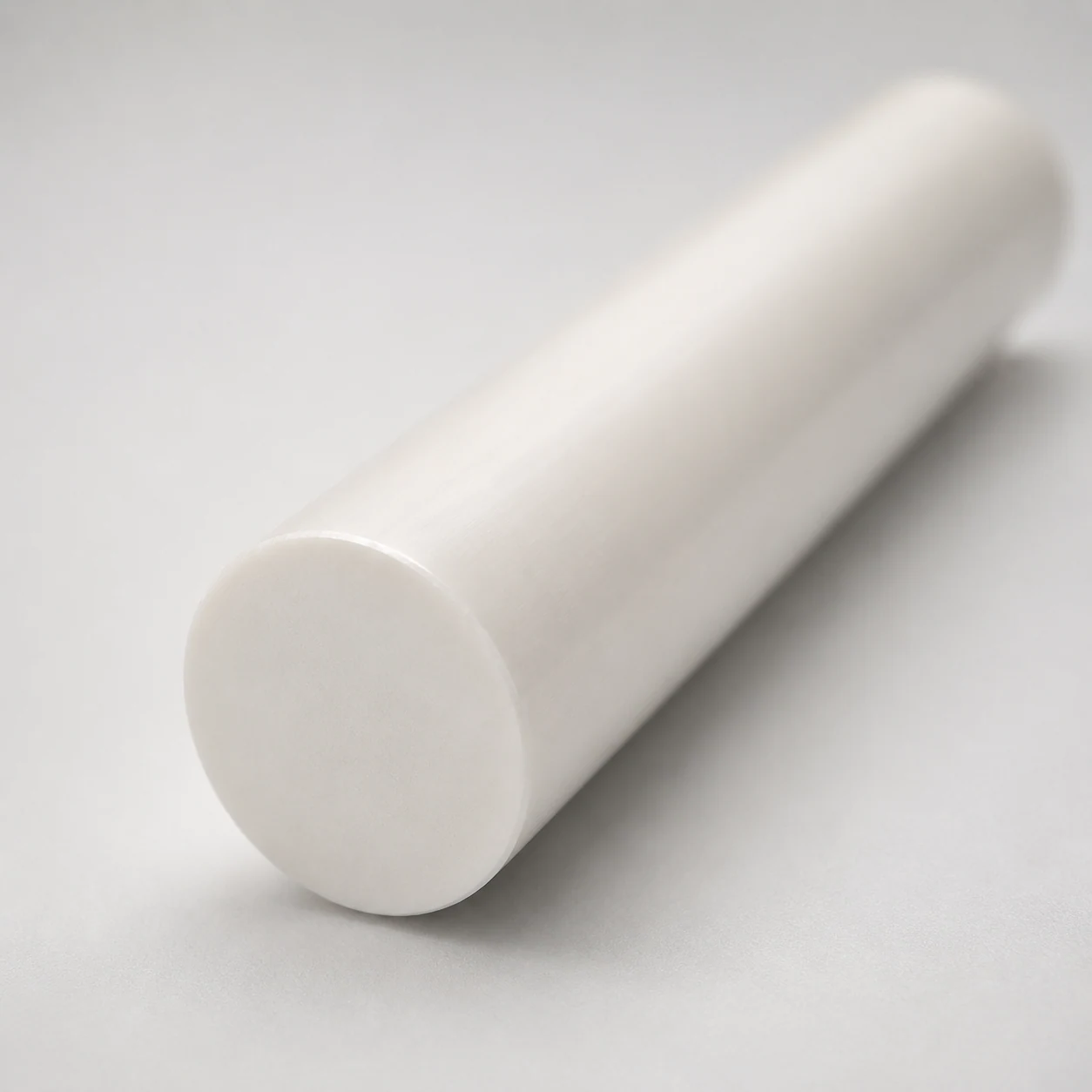

Alumina ceramic shafts are solid cylindrical components considered for guide, support, rotation or electrical-isolation functions in industrial equipment.
Alumina combines a rigid, wear-resistant working surface with electrical insulation, making one shaft useful for both mechanical guidance and isolation.
Product Features
- Solid Cylindrical Geometry
- Electrical Insulation
- Wear Resistance
- Finished wear-contact surfaces
Typical Applications
- Industrial Machinery — Guide shafts, rollers and precision supports
- Electrical Equipment — Insulating shafts and actuator components
Product Geometry & Configuration
Alumina Typical Material Properties
| Property | 95% Al₂O₃ | 99% Al₂O₃ | 99.5% Al₂O₃ | 99.8% Al₂O₃ | Condition / basis |
|---|---|---|---|---|---|
| Density (g/cm³) | 3.65 | 3.85 | 3.90 | 3.92 | — |
| Fracture toughness (MPa·m½) | 3–4 | 3–4 | 4 | 4 | — |
| Young’s modulus (GPa) | 320 | 340 | 370 | 390 | — |
| Flexural strength (MPa) | 300 | 330 | 375 | 390 | 25°C |
| Compressive strength (MPa) | 2200 | 2350 | 2450 | 2500 | 25°C |
| Thermal conductivity (W/(m·K)) | 18–22 | 27 | 29 | 32 | 25°C |
| Linear thermal expansion coefficient (10⁻⁶/K) | 8 | 8 | 8 | 8 | 25–1000°C |
| Dielectric strength (kV/mm) | 16 | 20 | 22 | 22 | — |
| Volume resistivity (Ω·cm) | 10¹⁴ | 10¹⁴ | 10¹⁴ | 10¹⁴ | 25°C |
| Relative permittivity | 9 | 9.7 | 9.7 | 9.8 | 1MHz, 25°C |
| Dielectric loss | 0.0004 | 0.0002 | 0.0002 | 0.0001 | 1MHz, 25°C |
| Vickers hardness (HV) | >1300 | 1700 | 1750 | 1800 | — |
| Material thermal-shock temperature difference, ΔT (°C) | 220 | 180–200 | 180–200 | 180–200 | — |
| Typical maximum material temperature (°C) | 1500 | 1650 | 1700 | 1700 | — |
Product Geometry & Configuration
| Product parameter | Configuration | Basis |
|---|---|---|
| Material system | Alumina | Material family; grade selected for the application |
| Component forms | Straight solid ceramic shafts; Ceramic rods in drawing-defined diameters; Custom end and interface features | Drawing-defined configurations |
| Geometry and dimensions | Custom by drawing | Part drawing and mating interfaces |
| Functional surfaces | Contact, locating, joining or insulating surfaces as applicable | Surface finish and acceptance criteria on the drawing |
Available Forms
Representative forms are shown for selection; final geometry follows the approved drawing.

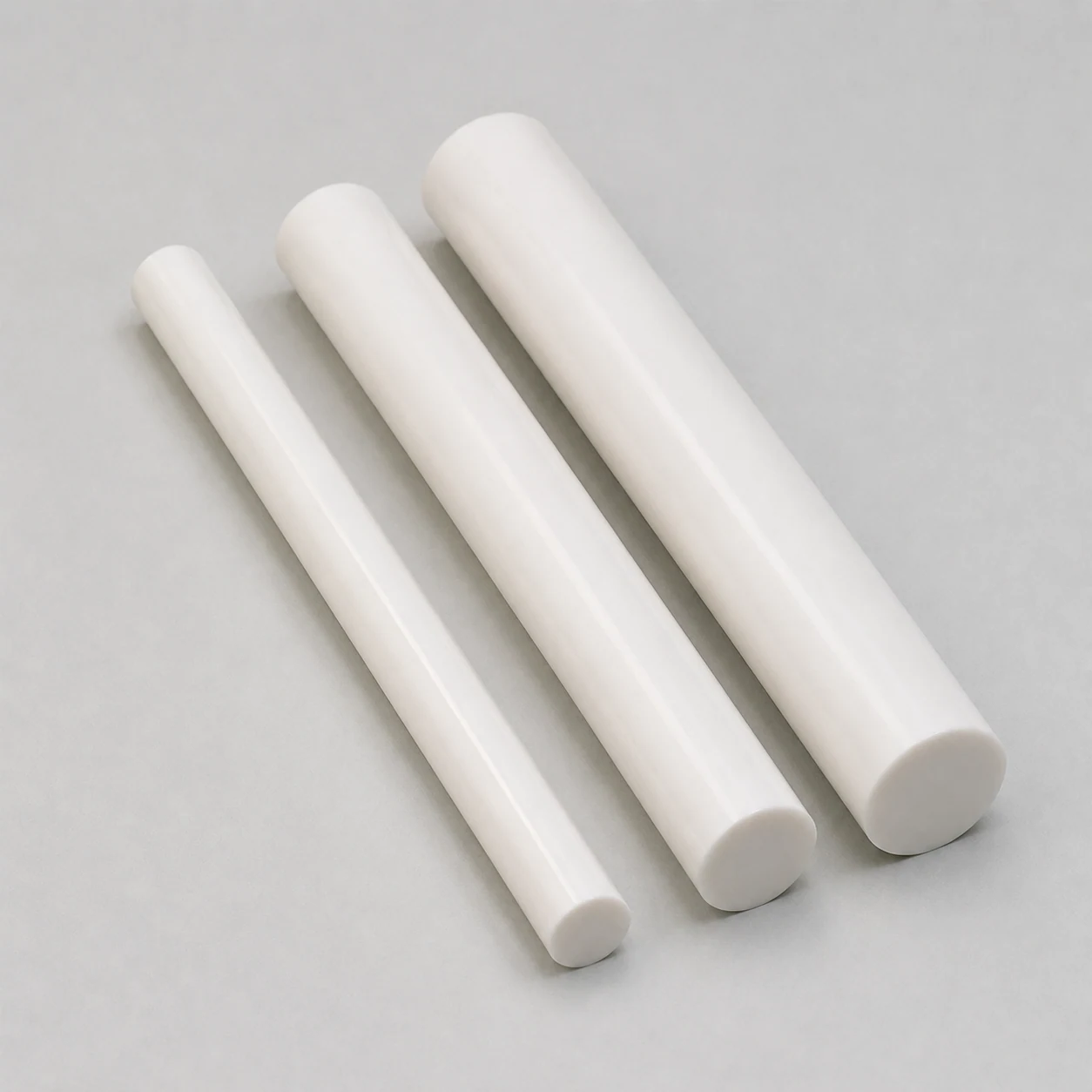

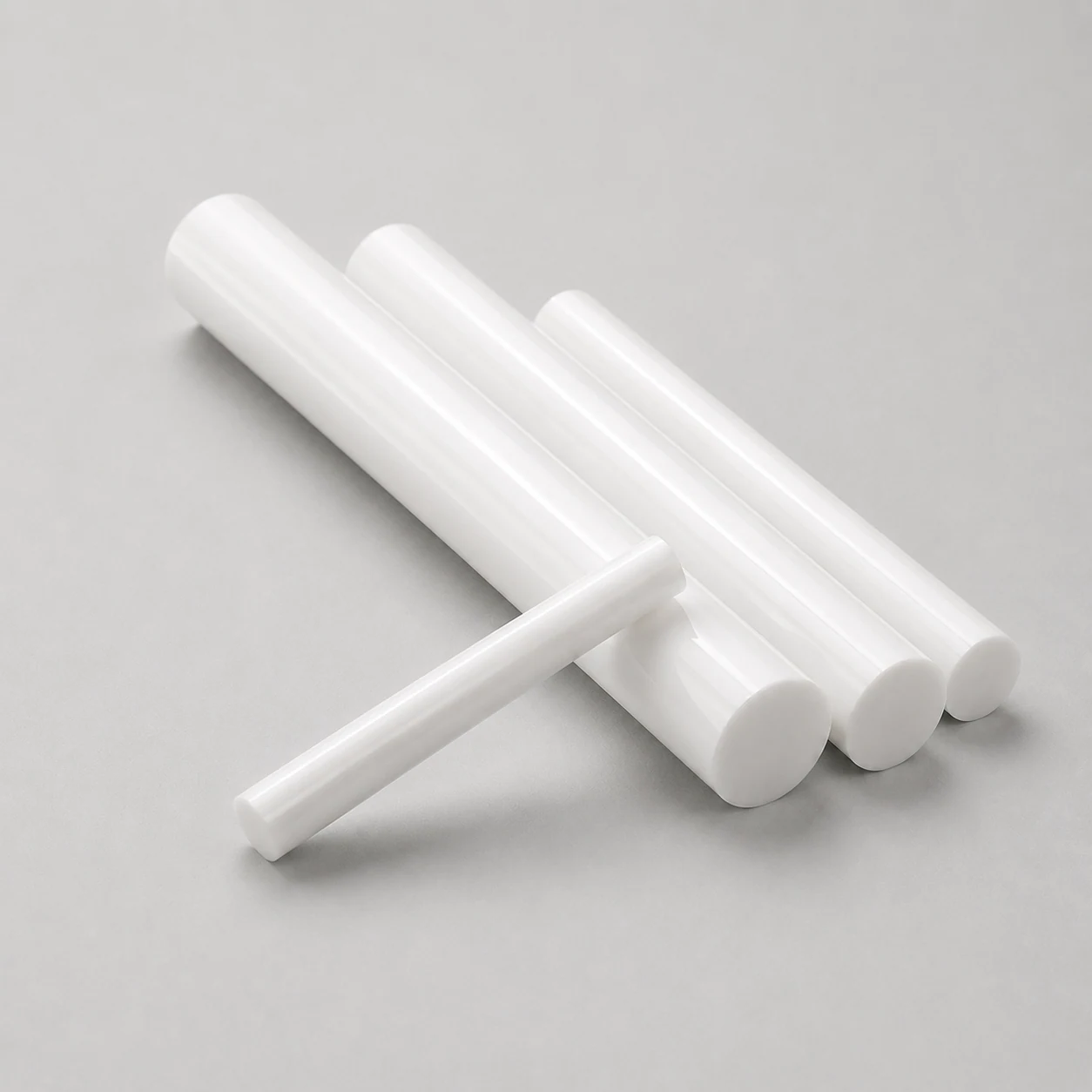

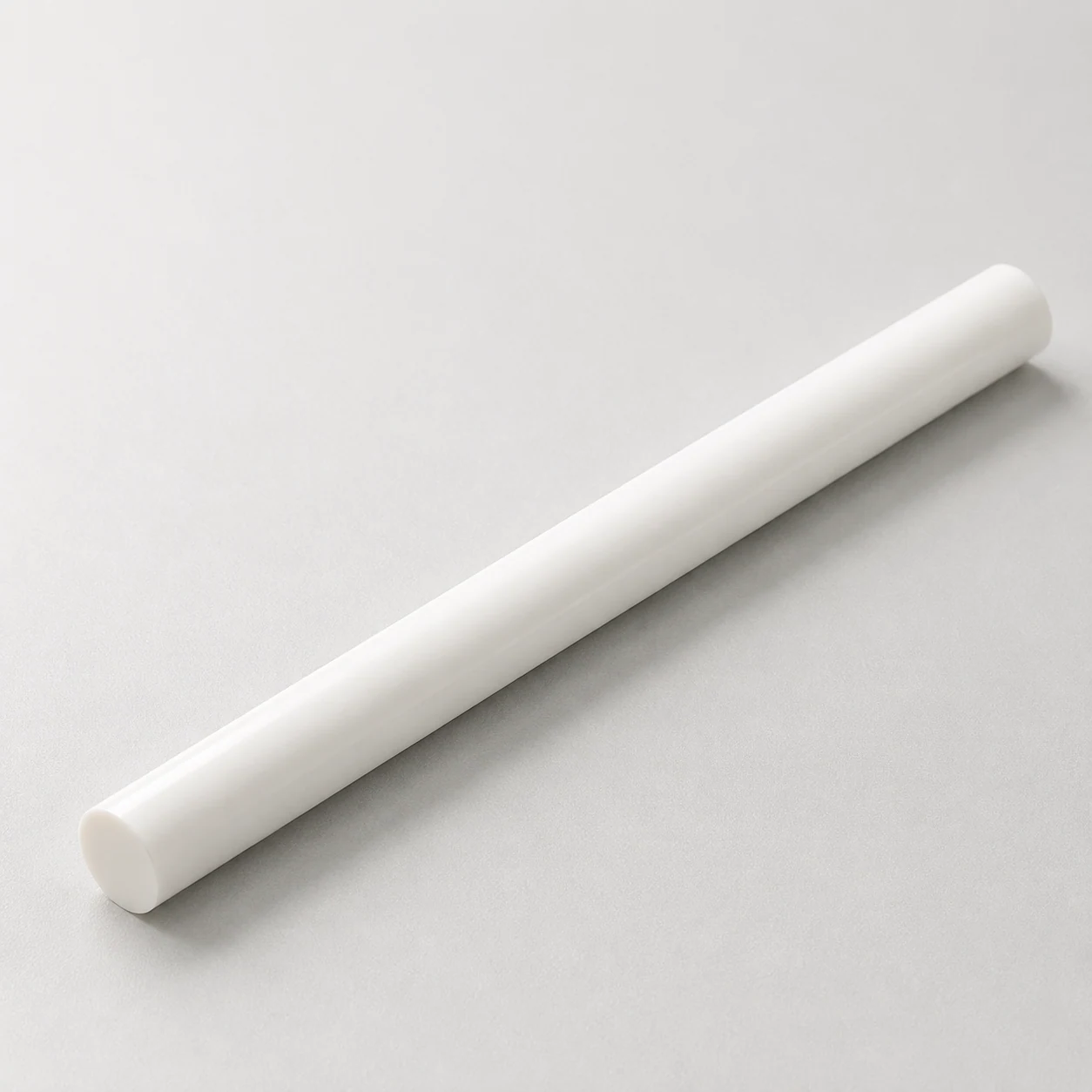

- Straight solid ceramic shafts
- Ceramic rods in drawing-defined diameters
- Custom end and interface features
Packaging & Shipping
Packing and shipment arrangements are selected for the confirmed component geometry and surface requirements.
| Item | Details |
|---|---|
| Product protection | Protection method is selected for component geometry, surface condition and quantity. |
| Other commercial terms | Confirmed in quotation |
| Payment terms | T/T / Western Union / PayPal; 50% advance payment, 50% balance before shipment |
| Shipping methods | Sea freight / Air freight / Door-to-door courier |
