Silicon Carbide Wear Linings
Silicon Carbide Ceramic Component
SKU: FWM/SC-LINING-001
Product Configuration
Conceptual geometry guide; final configuration follows the approved drawing.

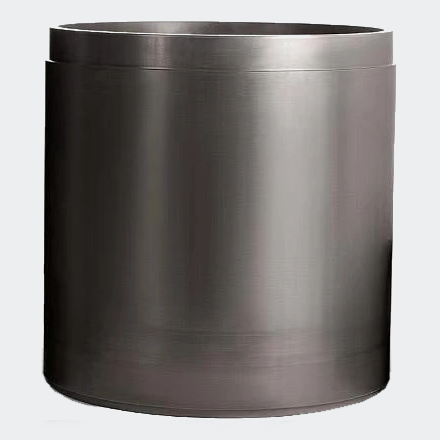

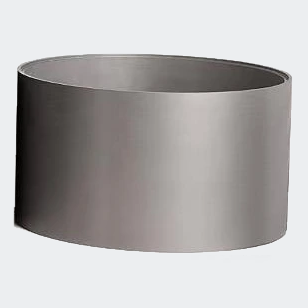

Cylindrical Liner
Representative form for drawing review.
Custom Lining
Alternative geometry for application review.
- Material
- Silicon Carbide (SiC)
- Size
- Custom sizes available
- MOQ
- 5 pieces per type
- Applications
- Chemical Processing
Silicon Carbide Wear Linings (also known as SiC liners or sand mill liners) are high-performance ceramic lining components designed for extreme wear, abrasion and corrosive environments.
Custom RBSiC or SSiC liners according to customer requirements. Send drawing, dimensions, operating conditions and quantity for material grade and inspection confirmation before quotation.
Browse Products
Alumina Ceramic Products
Zirconia Ceramic Products
Silicon Carbide Products
Silicon Nitride Products
Aluminum Nitride Products
Product Description
Review representative product forms and application context below. Final geometry and acceptance criteria are confirmed from the drawing and operating conditions.
Silicon Carbide Wear Linings (also known as SiC liners or sand mill liners) are high-performance ceramic lining components designed for extreme wear, abrasion and corrosive environments.
Typically consisting of a high-purity silicon carbide lining combined with an external metal shell (such as aluminum alloy), these linings provide exceptional hardness, wear resistance, corrosion resistance and high-temperature performance. They significantly extend equipment service life and improve grinding efficiency in sand mills and other abrasive processing systems.
Manufacturing process (source record): High-purity SiC powder → Cold Isostatic Pressing (CIP) or other forming → Reactive / Atmospheric pressure sintering → Precision machining → Assembly with metal shell (if required) → final inspection.
Quality control (source record): Dimensional inspection, surface smoothness check (≤ Ra 0.4–0.8 μm), appearance inspection (smooth without pores) and batch traceability.
Data status: the source record is not supplier-verified. Numerical values are typical engineering references, not guaranteed product specifications; final values require grade, drawing and test-basis confirmation.
Product Features
- Extremely high hardness (Mohs >9) and superior wear resistance
- Excellent corrosion resistance to acids, alkalis, solvents and most chemicals
- High temperature resistance (up to 1650 °C)
- Low coefficient of thermal expansion for dimensional stability
- Improved grinding efficiency and reduced energy consumption
- Good impact resistance and long service life
Typical Applications
- Sand mill liners for grinding, polishing and dispersion
- Wear linings in chemical, pigment, coating and ink production
- Lithium battery powder processing equipment
- Pharmaceutical and food industry fine grinding systems
- Environmental protection and flue gas treatment equipment
- Other high-abrasion and corrosive process equipment
Technical Data
| Property | Unit | SSiC | RBSiC | RSiC |
|---|---|---|---|---|
| Color | — | Black / dark gray | Black / dark gray | Black / dark gray |
| Bulk density | g/cm³ | ≥ 3.10 | ≥ 3.03 | 2.65 – 2.80 |
| Open porosity | % | < 0.2 | < 0.2 | < 16 |
| Hardness | HV0.5 | Approx. 2100 – 2600 | Approx. 2000 | Approx. 1800 – 2200 |
| Elastic modulus | GPa | Approx. 400 | Approx. 350 | Approx. 250 – 300 |
| Flexural strength at 25°C | MPa | ≥ 400 | ≥ 350 | 100 – 200 |
| Compressive strength at 25°C | MPa | ≥ 2200 | ≥ 2000 | ≥ 1500 |
| Thermal conductivity at 25°C | W/(m·K) | ≥ 110 | ≥ 90 | 80 – 120 |
| Coefficient of thermal expansion | 10⁻⁶/K | Approx. 4.0 | Approx. 4.0 | Approx. 4.0 – 4.5 |
| Maximum service temperature | °C | Up to 1650 | Up to 1300 – 1400 | Up to 1600 – 1650 |
Typical reference values for material selection only. Final specifications are confirmed against drawing, grade and operating conditions. Values shown are typical material data for reference and may vary with grade, geometry and test method. Final specifications should be confirmed against the drawing and operating conditions.

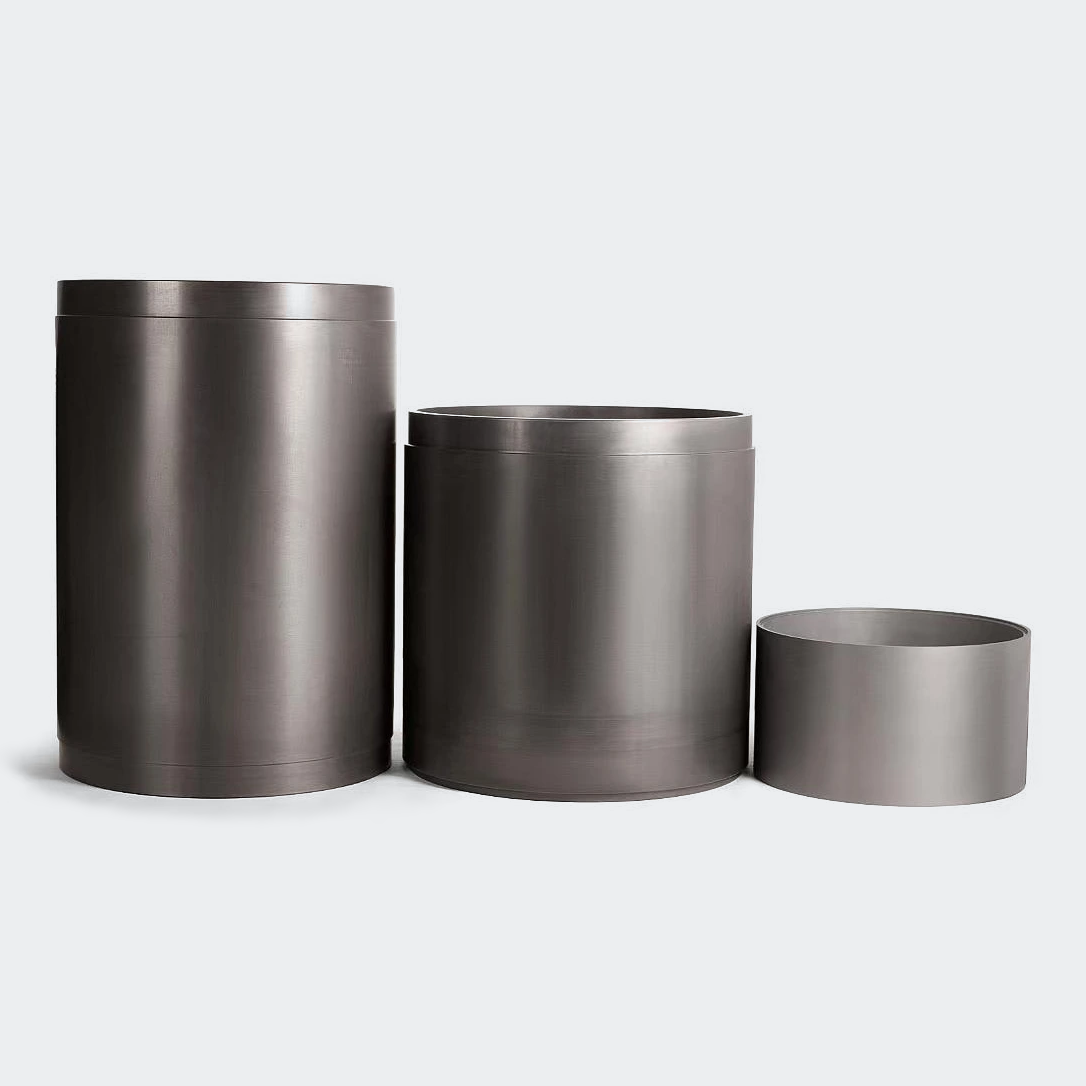

Available Forms
Representative forms are shown for selection. Custom RBSiC or SSiC liners according to customer requirements. Send drawing, dimensions, operating conditions and quantity for material grade and inspection confirmation before quotation.
- Sand mill liners with aluminum alloy shell
- Custom wear linings and cylinders
- Drawing-based designs evaluated for material route and manufacturing feasibility
Packaging & Shipping
Packing and shipment arrangements are selected for the confirmed component geometry and order requirements.
| Item | Details |
|---|---|
| Packaging & shipping | Individually protected, cushioned and packed in export cartons or wooden cases according to size, quantity and transport requirements. Payment terms, port of shipment and shipping options confirmed in the quotation. |
About FreeWill Material
FreeWill Material supplies technical ceramic components for demanding industrial applications. Our product range includes silicon carbide, silicon nitride, alumina, zirconia and other engineered ceramic materials.
We work with qualified manufacturing resources in China to support material selection, drawing-based customization, production coordination, inspection documentation and export delivery. Component feasibility, tolerances and material grades are reviewed according to the customer's drawings and operating conditions.
Our focus is to provide international buyers with clear technical communication, practical sourcing support and responsive quotation service for custom ceramic components.
- Drawing-Based Customization
- Material Selection Support
- Inspection Documentation
- Export Coordination
