Brazing Ceramic Components
Metallized Ceramics Component
SKU: FWM/MET-BRAZE-001
- Material
- Metallized Ceramic Family
- Size
- Custom sizes available
- MOQ
- Pending Verification
- Applications
- Electrical Equipment
Metallized ceramic rings, tubes and bodies prepared for drawing-based ceramic-to-metal brazing assemblies.
Browse Products
Alumina Ceramic Products
Zirconia Ceramic Products
Silicon Carbide Products
View categorySilicon Carbide Mechanical Seal RingsSilicon Carbide Ceramic ArmsSilicon Carbide Cantilever PaddlesSilicon Carbide Ceramic TubesSilicon Carbide Ceramic PlatesSilicon Carbide NozzlesSilicon Carbide CruciblesSilicon Carbide Furnace TubesSilicon Carbide Custom ComponentsSilicon Carbide SleevesSilicon Carbide TraysSilicon Carbide Vacuum ChucksSilicon Carbide Wear Linings
Silicon Nitride Products
View categorySilicon Nitride Degassing RotorsSilicon Nitride Heater Protection TubesSilicon Nitride PlatesSilicon Nitride Positioning PinsSilicon Nitride Riser Tubes / StalksSilicon Nitride Bearing BallsSilicon Nitride BearingsSilicon Nitride SleevesSilicon Nitride Structural ComponentsSilicon Nitride Thermocouple Protection Tubes
Aluminum Nitride Products
Product Description
Metallized ceramic rings, tubes and bodies prepared for drawing-based ceramic-to-metal brazing assemblies.
Brazing ceramic components are ceramic bodies with interface areas prepared for joining to a compatible metal counterpart.
A suitable metal interface enables a braze alloy to wet the ceramic joining area, combining a ceramic insulating body with a metal connection.
Product Features
- Brazing Interface
- Electrical Insulation
- Ceramic-to-metal interface design
- Assembly-Specific Geometry
Typical Applications
- Electrical Equipment — Insulating ceramic-to-metal assemblies: Supports a controlled brazing interface in the submitted design.
- Vacuum and Process Equipment — Sealed ceramic-metal components: Provides a prepared ceramic body for joining evaluation.
Product Geometry & Configuration
Alumina Typical Material Properties
| Property | 95% Al₂O₃ | 99% Al₂O₃ | 99.5% Al₂O₃ | 99.8% Al₂O₃ | Condition / basis |
|---|---|---|---|---|---|
| Density (g/cm³) | 3.65 | 3.85 | 3.90 | 3.92 | — |
| Fracture toughness (MPa·m½) | 3–4 | 3–4 | 4 | 4 | — |
| Young’s modulus (GPa) | 320 | 340 | 370 | 390 | — |
| Flexural strength (MPa) | 300 | 330 | 375 | 390 | 25°C |
| Compressive strength (MPa) | 2200 | 2350 | 2450 | 2500 | 25°C |
| Thermal conductivity (W/(m·K)) | 18–22 | 27 | 29 | 32 | 25°C |
| Linear thermal expansion coefficient (10⁻⁶/K) | 8 | 8 | 8 | 8 | 25–1000°C |
| Dielectric strength (kV/mm) | 16 | 20 | 22 | 22 | — |
| Volume resistivity (Ω·cm) | 10¹⁴ | 10¹⁴ | 10¹⁴ | 10¹⁴ | 25°C |
| Relative permittivity | 9 | 9.7 | 9.7 | 9.8 | 1MHz, 25°C |
| Dielectric loss | 0.0004 | 0.0002 | 0.0002 | 0.0001 | 1MHz, 25°C |
| Vickers hardness (HV) | >1300 | 1700 | 1750 | 1800 | — |
| Material thermal-shock temperature difference, ΔT (°C) | 220 | 180–200 | 180–200 | 180–200 | — |
| Typical maximum material temperature (°C) | 1500 | 1650 | 1700 | 1700 | — |
AlN (AN216A) Typical Properties
| Property | AN216A typical value | Condition / method |
|---|---|---|
| Density | 3.4 g/cm³ | JIS R 1634 |
| Water absorption | 0 % | JIS C 2141 |
| Vickers hardness | 10.4 GPa | HV9.807N (9.807 N load); JIS R 1610 |
| Three-point flexural strength | 310 MPa | Three-point bending; JIS R 1601 |
| Young’s modulus | 320 GPa | JIS R 1602 |
| Poisson’s ratio | 0.24 | JIS R 1602 |
| Fracture toughness (SEPB) | 3.2 MPa·m½ | SEPB; JIS R 1607 |
| Linear thermal expansion, 40–400°C | 4.6 × 10⁻⁶/K | 40–400°C; JIS R 1618 |
| Linear thermal expansion, 40–800°C | 5.3 × 10⁻⁶/K | 40–800°C; JIS R 1618 |
| Thermal conductivity | 150 W/(m·K) | 20°C; JIS R 1611 |
| Specific heat capacity | 0.71 J/(g·K) | JIS R 1611 |
| Material thermal-shock temperature difference | 250 °C | Water immersion; relative method; JIS R 1648 |
| Dielectric strength | 14 kV/mm | JIS C 2141 |
| Volume resistivity, 20°C | >10¹⁴ Ω·cm | 20°C; JIS C 2141 |
| Volume resistivity, 300°C | 10¹⁰ Ω·cm | 300°C; JIS C 2141 |
| Volume resistivity, 500°C | 10⁸ Ω·cm | 500°C; JIS C 2141 |
| Relative permittivity | 8.6 | 1 MHz; JIS C 2141 |
| Dielectric loss tangent | 0.0003 | 1 MHz; JIS C 2141 |
Product Geometry & Configuration
| Product parameter | Configuration | Basis |
|---|---|---|
| Material system | Metallized Ceramic Family | Material family; grade selected for the application |
| Component forms | Metallized rings; Metallized tubes and sleeves; Custom brazing bodies | Drawing-defined configurations |
| Geometry and dimensions | Custom sizes available | Part drawing and mating interfaces |
| Functional surfaces | Contact, locating, joining or insulating surfaces as applicable | Surface finish and acceptance criteria on the drawing |
Available Forms
Representative forms are shown for selection. Final geometry, material route, interface, finish and acceptance criteria require drawing review.

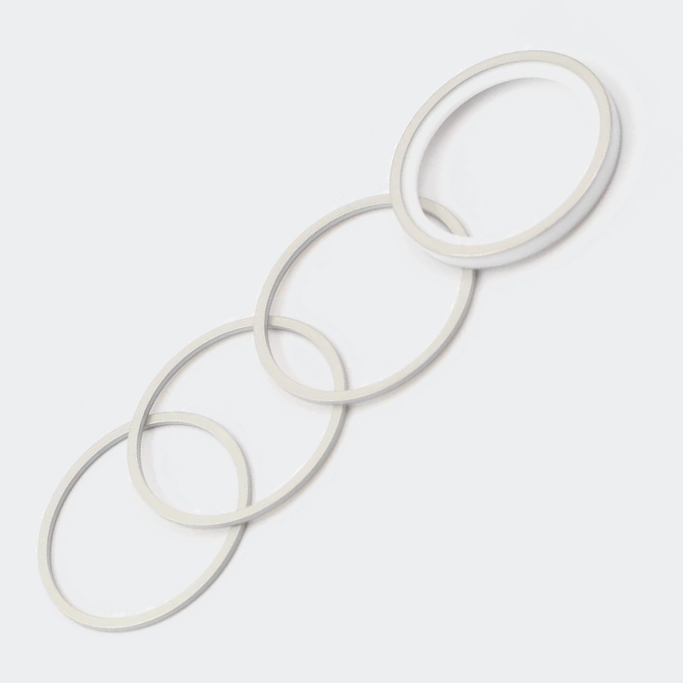

- Metallized rings

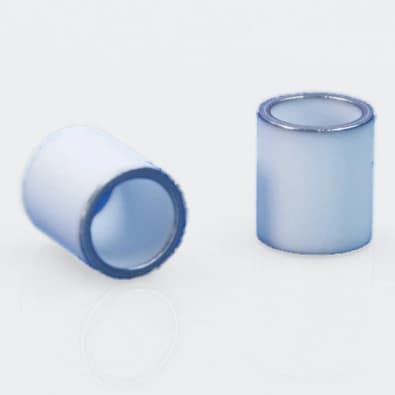

- Metallized tubes and sleeves
- Custom brazing bodies
Packaging & Shipping
Packing and shipment arrangements are selected for the confirmed component geometry and surface requirements.
| Item | Details |
|---|---|
| Product protection | Selected for geometry, surface condition and quantity |
| Other commercial terms and lead time | Confirmed in quotation |
| Source boundary | No competitor packaging or delivery promise is inherited. |
| Payment terms | T/T / Western Union / PayPal; 50% advance payment, 50% balance before shipment |
| Shipping methods | Sea freight / Air freight / Door-to-door courier |
Related Metallized Ceramics Products
Explore related products within the same canonical family.
