Metallized Alumina Ceramic Components
Metallized Ceramics Component
SKU: FWM/MET-ALU-001
- Material
- Metallized Ceramic Family
- Size
- Custom sizes available
- MOQ
- Pending Verification
- Applications
- Electronic Packaging
Metallized alumina bodies with controlled joining or electrical interface areas for ceramic-to-metal assemblies.
Browse Products
Alumina Ceramic Products
Zirconia Ceramic Products
Silicon Carbide Products
Silicon Nitride Products
Aluminum Nitride Products
Product Description
Metallized alumina bodies with controlled joining or electrical interface areas for ceramic-to-metal assemblies.
Metallized alumina components use a process-specific metal layer on selected ceramic areas to support joining, plating or electrical connection.
The alumina body supplies electrical isolation while localized metal areas provide surfaces for joining or electrical connection, rather than making the entire ceramic body conductive.
Product Features
- Ceramic Electrical Isolation
- Controlled Metal Interface
- Brazing Preparation
- Drawing-Based Metallization
Typical Applications
- Electronic Packaging — Metallized ceramic package and support bodies: Supports defined joining and connection areas.
- Vacuum and Sensor Equipment — Ceramic-to-metal insulating assemblies: Provides a metallized ceramic interface for assembly review.
Product Geometry & Configuration
Alumina Typical Material Properties
| Property | 95% Al₂O₃ | 99% Al₂O₃ | 99.5% Al₂O₃ | 99.8% Al₂O₃ | Condition / basis |
|---|---|---|---|---|---|
| Density (g/cm³) | 3.65 | 3.85 | 3.90 | 3.92 | — |
| Fracture toughness (MPa·m½) | 3–4 | 3–4 | 4 | 4 | — |
| Young’s modulus (GPa) | 320 | 340 | 370 | 390 | — |
| Flexural strength (MPa) | 300 | 330 | 375 | 390 | 25°C |
| Compressive strength (MPa) | 2200 | 2350 | 2450 | 2500 | 25°C |
| Thermal conductivity (W/(m·K)) | 18–22 | 27 | 29 | 32 | 25°C |
| Linear thermal expansion coefficient (10⁻⁶/K) | 8 | 8 | 8 | 8 | 25–1000°C |
| Dielectric strength (kV/mm) | 16 | 20 | 22 | 22 | — |
| Volume resistivity (Ω·cm) | 10¹⁴ | 10¹⁴ | 10¹⁴ | 10¹⁴ | 25°C |
| Relative permittivity | 9 | 9.7 | 9.7 | 9.8 | 1MHz, 25°C |
| Dielectric loss | 0.0004 | 0.0002 | 0.0002 | 0.0001 | 1MHz, 25°C |
| Vickers hardness (HV) | >1300 | 1700 | 1750 | 1800 | — |
| Material thermal-shock temperature difference, ΔT (°C) | 220 | 180–200 | 180–200 | 180–200 | — |
| Typical maximum material temperature (°C) | 1500 | 1650 | 1700 | 1700 | — |
Product Geometry & Configuration
| Product parameter | Configuration | Basis |
|---|---|---|
| Material system | Metallized Ceramic Family | Material family; grade selected for the application |
| Component forms | Metallized rings and washers; Metallized tubes and bodies; Patterned plates and custom components | Drawing-defined configurations |
| Geometry and dimensions | Custom sizes available | Part drawing and mating interfaces |
| Functional surfaces | Contact, locating, joining or insulating surfaces as applicable | Surface finish and acceptance criteria on the drawing |
Available Forms
Representative forms are shown for selection. Final geometry, material route, interface, finish and acceptance criteria require drawing review.
- Metallized rings and washers

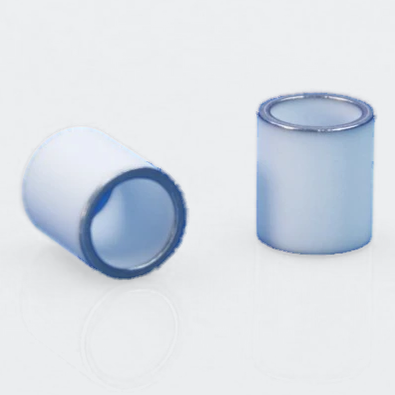

- Metallized tubes and bodies
- Patterned plates and custom components
Packaging & Shipping
Packing and shipment arrangements are selected for the confirmed component geometry and surface requirements.
| Item | Details |
|---|---|
| Product protection | Selected for geometry, surface condition and quantity |
| Other commercial terms and lead time | Confirmed in quotation |
| Source boundary | No competitor packaging or delivery promise is inherited. |
| Payment terms | T/T / Western Union / PayPal; 50% advance payment, 50% balance before shipment |
| Shipping methods | Sea freight / Air freight / Door-to-door courier |
