SKU: FWM/CS-AMB-003

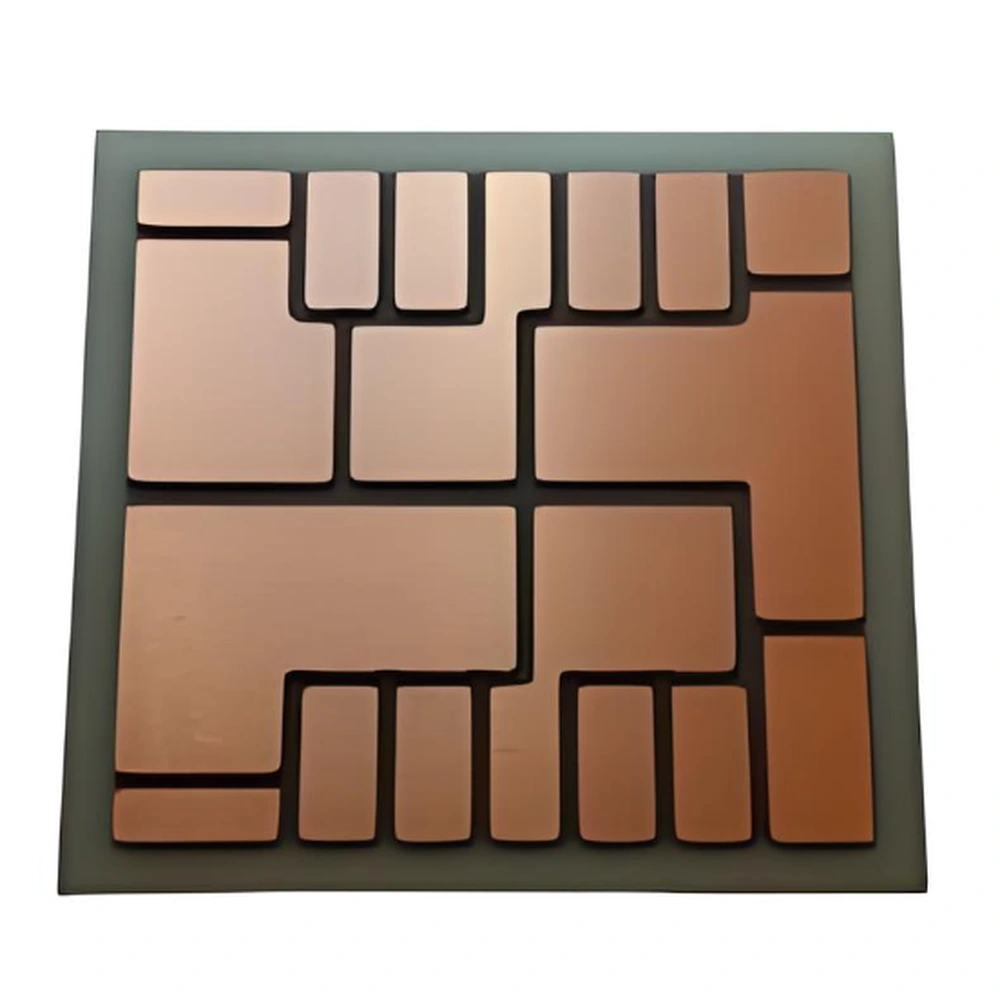

Patterned AMB copper-clad ceramic substrate
Material
Ceramic / Copper AMB System
Size
Custom sizes by drawing
MOQ
5 pieces or one master-card equivalent
Applications
New-Energy Power Systems

AMB copper-clad ceramic substrates for drawing-defined power conversion and new-energy module assemblies.

Browse Products
Alumina Ceramic Products
Zirconia Ceramic Products
Silicon Carbide Products
Silicon Nitride Products
Aluminum Nitride Products
Boron Nitride Products

Product Description

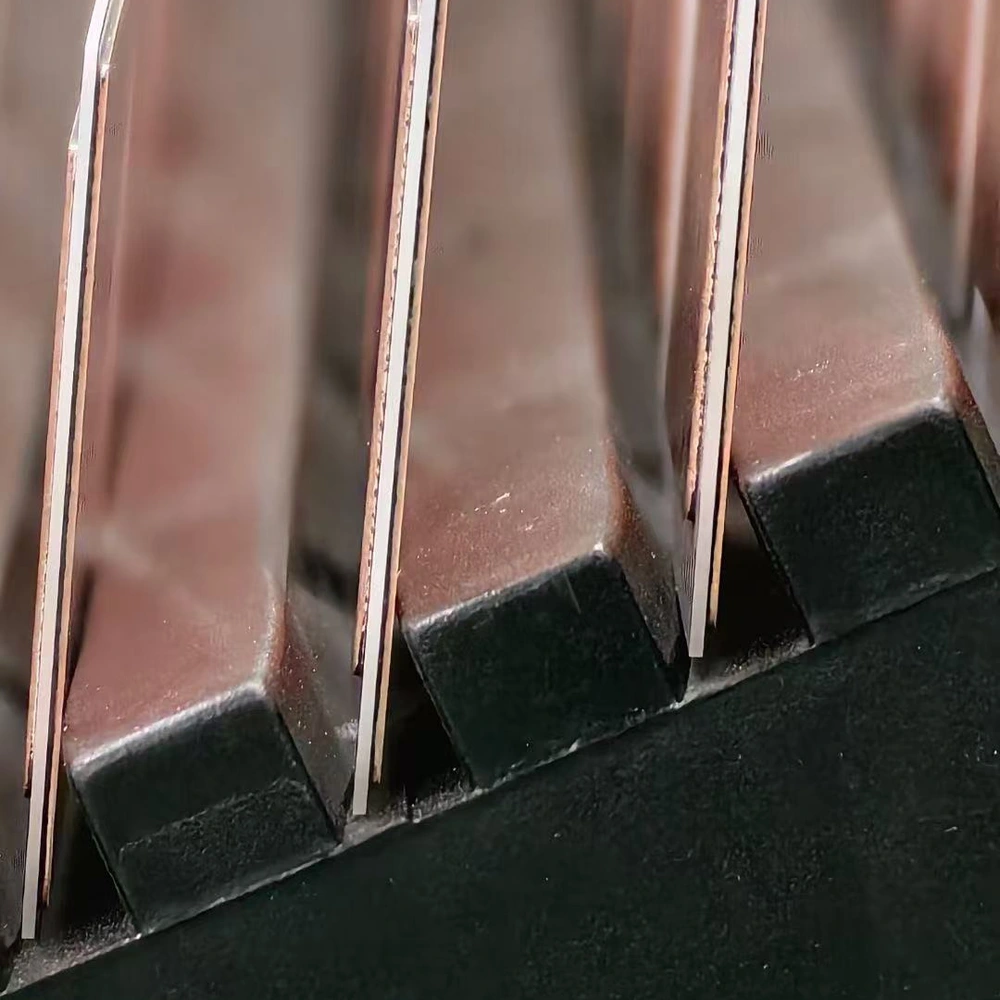

FreeWill Material ceramic substrates and power module thermal-management assembly

AMB copper-clad ceramic substrates integrate power-circuit conductors with an insulating ceramic heat path for energy-conversion modules.

Active metal brazing joins copper to the chosen ceramic, supporting layouts for traction inverters, chargers and renewable-energy converters. Ceramic choice and the complete layer stack determine the thermal and mechanical behavior.

For new-energy AMB applications, select the ceramic base, braze system and copper layout together. Material and application qualification are reviewed for the specified design.

Product Advantages

  • Brazed copper layers combine power-circuit conductors and attachment areas on ceramic.
  • Ceramic selection adapts the insulating heat path to the module design.
  • A coordinated copper layout connects device placement, current paths and heat spreading.

Typical Applications

  • New-Energy Power Systems: AMB carriers support inverter, charger and DC-DC power circuits.
  • Power Conversion: copper-clad ceramic substrates carry power-device assemblies.

Technical Data

Si₃N₄ Substrate (Sinalit) Properties

PropertySinalit — bare Si₃N₄ substrateConditions / ±10% measurement tolerance (except ref.)
Density (g/cm³)≥3.22DIN EN 993-1
Bending strength (MPa)≥700—
Fracture toughness (MPa·m½)≥6.5Indentation-fracture method
Thermal conductivity (W/(m·K))90Room temperature; DIN EN 821-2
Coefficient of thermal expansion (10⁻⁶/K)3.3 (ref.)100–800°C; DIN 51045-1
Dielectric strength (kV/mm)≥2520°C; AC / DC; DIN EN 60243-1
Volume resistivity (Ω·cm)≥10¹⁴Room temperature; IEC 62631-3
Young’s modulus (GPa)≥280ASTM C1259-15
Specific heat capacity (J/(g·K))≥0.6825°C; DIN EN 821-3 Method B
Relative permittivity7.8 (ref.)Room temperature; 1 MHz; Ra ≤0.4 µm; ASTM D150
Dielectric loss tangent≤0.003Room temperature; 1 MHz; Ra ≤0.4 µm; ASTM D150

95% AlN Substrate Properties

Property95% AlN typical valueCondition / method
AlN content (%)95—
Density (g/cm³)≥3.3—
Flexural strength (MPa)≥400—
Thermal conductivity (W/(m·K))≥170Room temperature
Relative permittivity8–101 MHz; room temperature
Dielectric loss tangent≤0.00031 MHz; room temperature
Dielectric strength (kV/mm)17—
Volume resistivity (Ω·cm)≥10¹⁴—

Typical Construction Parameters

Construction itemTypical configurationApplicable condition
Ceramic baseSi3N4; selected AlNGrade and route dependent
Si3N4 thickness0.25 / 0.32 mmSi₃N₄ ceramic layer
Copper thickness0.30 / 0.40 / 0.50 / 0.80 mmSelected AMB layer combinations
PatternCustom power circuitDrawing review required
Surface finishBare Cu and selected plated finishesAssembly-process dependent

How to Read the Parameters

Bond strength

Peel force per width in N/mm differs from bond stress in MPa.

Specify: Test mode, fixture, specimen, rate and failure location.

Thermal conductivity

A stated ceramic value is not an effective AMB-stack conductivity.

Specify: Ceramic grade, temperature and method.

Thermal cycling

A cycle count applies only to its defined construction and profile.

Specify: Endpoints, dwell, ramp/transfer, samples, inspection and failure criteria.

Layer and panel dimensions

Available combinations cannot be inferred from separate maximum values.

Specify: Complete stack, usable circuit area, outline and finished shape.

AMB: ceramic, braze and copper as one construction

AMB joins copper and ceramic through an active braze system whose reactive elements enable bonding at the ceramic interface. Ceramic grade, braze and copper geometry must be assessed together; generic AMB principles do not establish any one product’s numerical capability.

AMB schematic shows separate copper foil, active braze and ceramic layers. Controlled brazing precedes circuit patterning, interlayer cleanup, optional surface finish and inspection. Braze remains beneath bonded copper but not in the illustrated isolation gaps.

Application Conditions & Design Review

Translate the energy application into a duty cycle

Traction, charging and stationary conversion can impose different temperature, current and service conditions. Specify the actual converter role rather than using new energy as a single performance class.

Select the ceramic by the limiting requirement

Compare thermal transfer, mechanical robustness, insulation and cost in the proposed module. The ceramic and copper arrangement should be selected together with cooling and assembly.

Ceramic choice

Si3N4, AlN and selected alumina configurations address different thermal and mechanical priorities.

Copper distribution

Layer thickness and copper coverage influence current paths, heat spreading and thermomechanical stress.

Mission profile

Define operating temperatures and loading before choosing substrate and assembly qualification tests.

Send With Your Drawing

  • Converter function, heat/current loading and operating environment.
  • Candidate ceramic, layer thicknesses, circuit artwork and cooling interface.
  • Surface finish, attachment processes and application-specific acceptance plan.

Include the drawing revision, sample and production quantities, and required inspection documents.

Define Acceptance Before Production

  • Verify the approved stack, copper geometry and interface inspection requirements.
  • Qualify electrical isolation and thermal/mechanical behavior for the intended service profile.

Agree the test methods, sampling plan, acceptance limits and required reports before production.

Available Forms & Processing

Product-specific geometry and processing features.

  • Alumina, AlN or Si3N4 ceramic selection identified with its matching braze construction.
  • Ceramic and copper layer thicknesses, pattern coverage and outline defined together.
  • Application-specific thermal-cycle and insulation requirements associated with the complete stack.

Engineering Questions

Is one AMB stack suitable for every new-energy application?

No. A charging converter and a traction inverter may have different operating and reliability requirements. Select and qualify the stack for the specific module.

Is the active braze the same as component-attach solder?

No. The active braze is part of the ceramic-to-copper joining system. Die-attach solder or sinter material belongs to a later assembly interface.

Can one AMB product’s cycle result be used for another stack?

Not without evidence. Ceramic grade, braze, copper geometry, layer thicknesses and the test profile must be comparable.

Packaging & Shipping

Packaging is selected for master cards, individual units and copper surface condition.

ItemDetails
Packaging approachPackaging is selected for master cards, individual units and copper surface condition.
Protection methodsIndividual separation; Anti-scratch surface protection; Rigid trays or master-card frames; Copper corrosion protection where appropriate; Inner box and export carton; Wooden case when required
MOQ reference5 pieces or one master-card equivalent
Lead-time referencesAMB: 6-10 weeks
Payment termsT/T / Western Union / PayPal; 50% advance payment, 50% balance before shipment
Shipping methodsSea freight / Air freight / Door-to-door courier
