Silicon Carbide Cantilever Paddles
Silicon Carbide Ceramic Component
SKU: FWM/SC-PADDLE-001
- Material
- Silicon Carbide
- Size
- Custom by drawing
- MOQ
- By quotation
- Applications
- Equipment Integration
Explore silicon carbide cantilever paddle configurations with slotted and open U-channel profiles. Send your drawing and operating requirements for quotation review.
Send the drawing, operating conditions and quantity for material-route and feasibility review.
Browse Products
Alumina Ceramic Products
Zirconia Ceramic Products
Silicon Carbide Products
Silicon Nitride Products
Aluminum Nitride Products
Product Description
Review representative product forms and application context below. Final geometry and acceptance criteria are confirmed from the drawing and operating conditions.

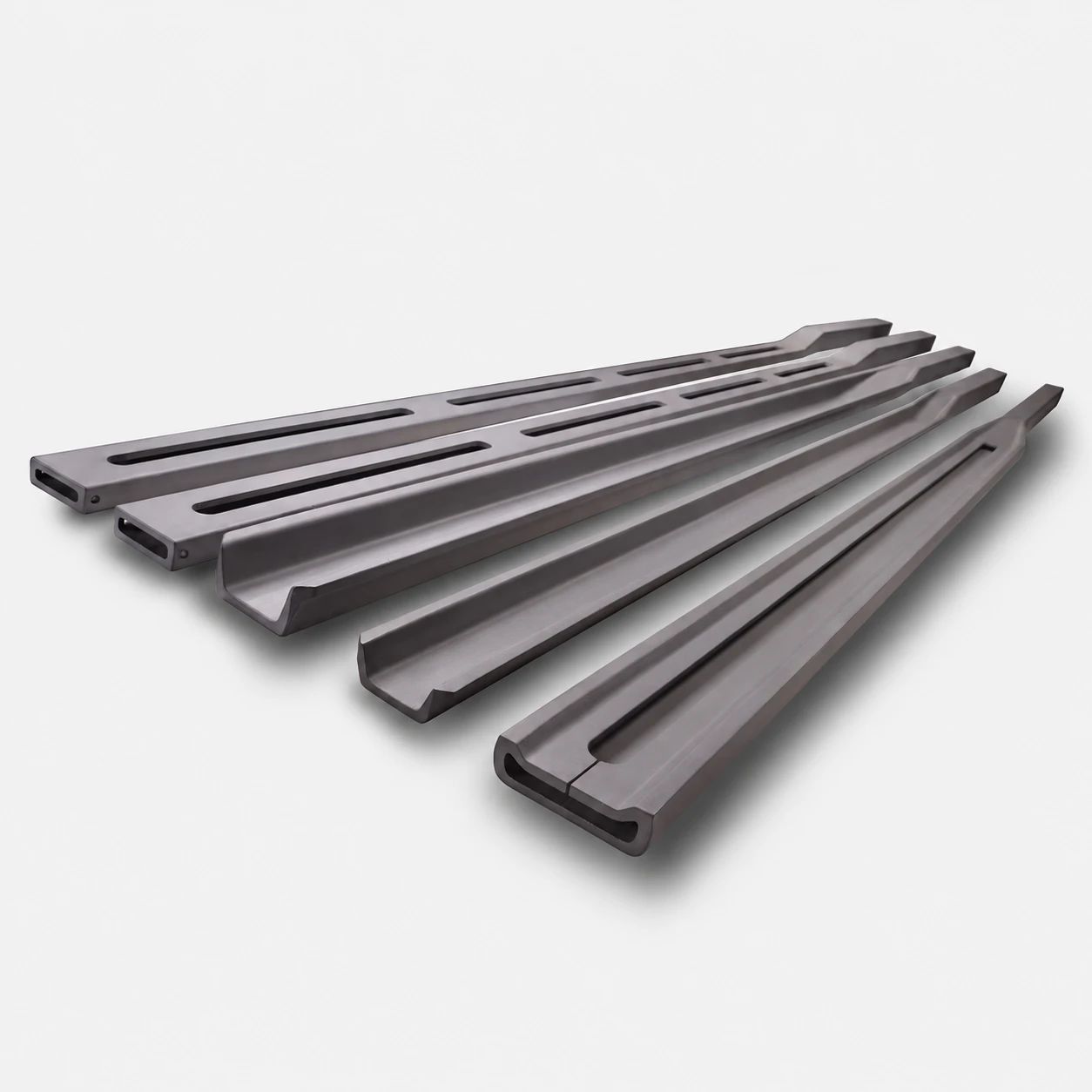

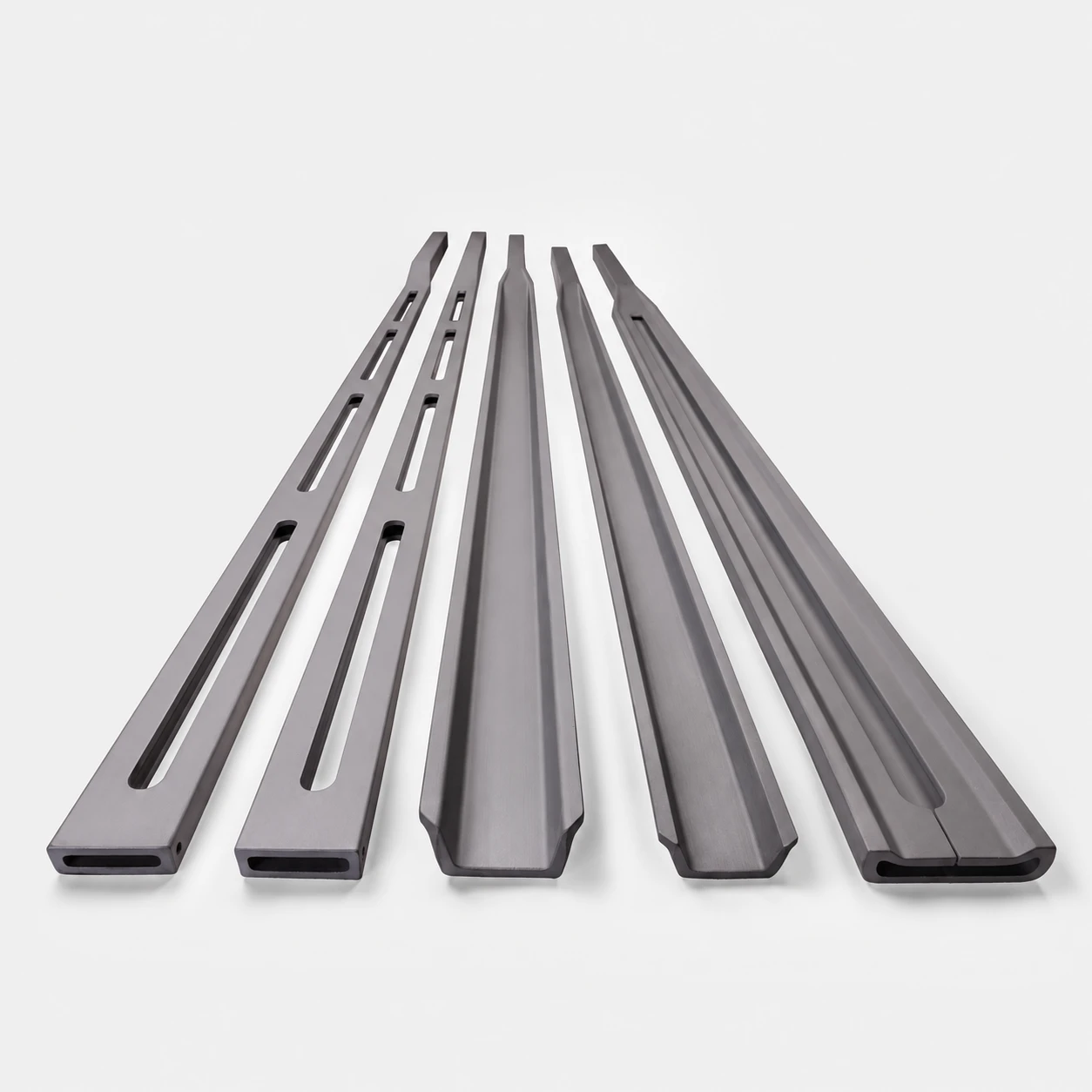

Silicon carbide cantilever paddles are elongated ceramic components supplied to a drawing-based specification. The pictured range includes slotted box-section and open U-channel configurations with distinct end and transition geometries.
These profiles are not interchangeable without reviewing the support arrangement, equipment interface and loading conditions. Material grade, temperature capability, chemical compatibility and allowable deflection require product-specific verification.
Manufacturing and customization: submit a dimensioned drawing or CAD file for feasibility review of section design, slots, end details, surface finish and manufacturing route.
Quality control: agree overall dimensions, section geometry, straightness, surface condition, slot and end inspection, material documentation and packaging support points before ordering.
Images are AI-assisted presentation views based on owner-supplied photographs. Only the approved drawing defines dimensions and engineering details; images do not establish performance or stock availability.
Product Features
- Slotted Box-Section Profile
- Open U-Channel Profile
- Drawing-Based Interfaces
- Application-Specific Material Selection
Typical Applications
- Equipment Integration — Support and handling arrangements subject to application review
Technical Data
| Selection item | Specification basis |
|---|---|
| Material | Silicon Carbide |
| Supply basis | Drawing and application review |
| Dimensions | Confirmed from the customer drawing |
| Material grade | Selected after operating conditions are reviewed |
Final numerical values are confirmed for the selected material route, geometry and applicable test basis.
Available Forms
Representative forms are shown for selection; final geometry follows the approved drawing.

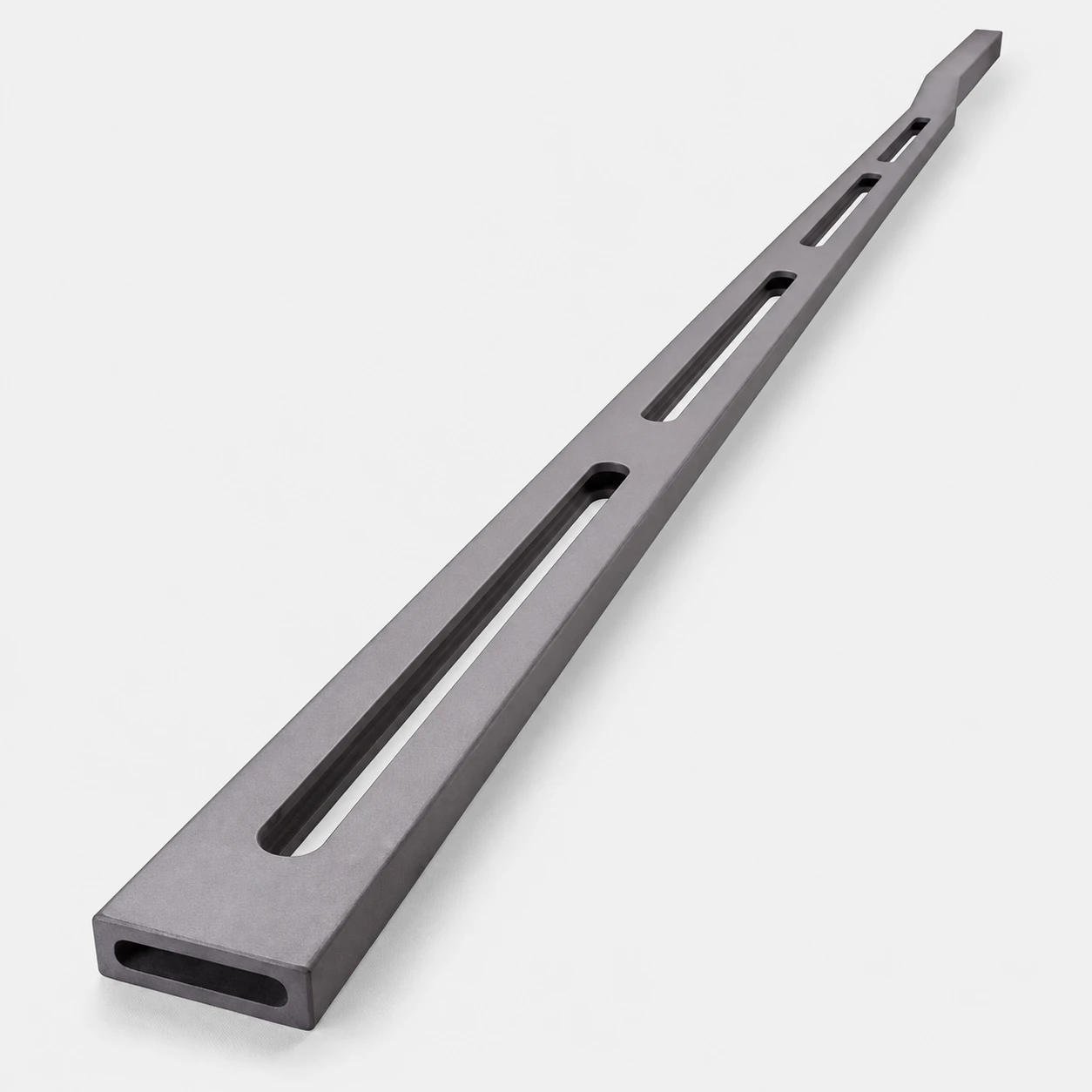

- Slotted box-section cantilever paddle

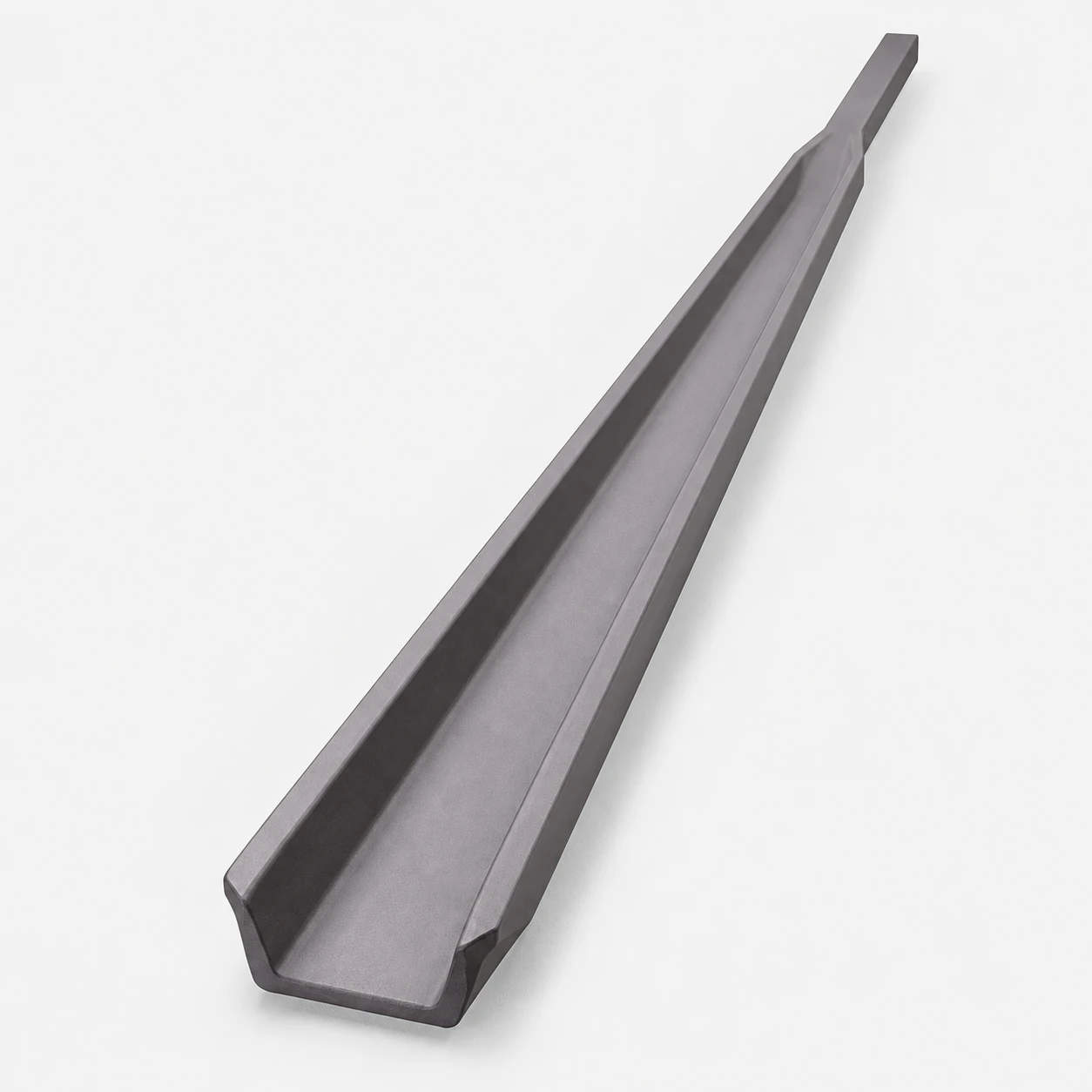

- Open U-channel cantilever paddle
- Drawing-based end and transition geometry
Packaging & Shipping
Packing and shipment arrangements are selected for the confirmed component geometry and order requirements.
| Item | Details |
|---|---|
| Product protection | Protection method is selected for the component geometry, surface condition and quantity. |
| Shipment arrangement | Shipping method and commercial terms are confirmed in the quotation. |
About FreeWill Material
FreeWill Material supplies technical ceramic components for demanding industrial applications. Our product range includes silicon carbide, silicon nitride, alumina, zirconia and other engineered ceramic materials.
We work with qualified manufacturing resources in China to support material selection, drawing-based customization, production coordination, inspection documentation and export delivery. Component feasibility, tolerances and material grades are reviewed according to the customer's drawings and operating conditions.
Our focus is to provide international buyers with clear technical communication, practical sourcing support and responsive quotation service for custom ceramic components.
- Drawing-Based Customization
- Material Selection Support
- Inspection Documentation
- Export Coordination
Frequently Asked Questions
Can I order a slotted or U-channel profile?
Both configurations are shown for enquiry. Supply a drawing so geometry and supply feasibility can be confirmed.
What temperature and load can the paddle withstand?
No universal rating is provided. Grade, section, unsupported span, load distribution, atmosphere and thermal cycle must be reviewed together.
Are the single-product pictures dimensional references?
No. They are AI-derived presentation views based on supplied photographs. Only the approved drawing defines dimensions and details.
What do you need for a quotation?
A drawing, application description, loading and temperature conditions, quantity and inspection requirements.
